Advanced functional safety and security platform for edge AI.
NVIDIA IGX Orin™ is an industrial-grade platform that combines enterprise-level hardware, software, and support. As a single, holistic platform, IGX allows companies to focus on application development and realize the benefits of AI faster.
Built-in safety extensions to deliver proactive safety in autonomous environments
High-performance and energy-efficient systems built for low-latency, real-time applications
The latest in embedded device security, remote provisioning, and management
Extended hardware and software support to ensure product longevity
Building on lessons learned from autonomous driving, NVIDIA IGX brings powerful, safe, and secure compute, networking, and software capabilities to industrial automation and medical devices. The IGX platform includes drivers for commercial OS, a safety extension package to program safety functions on the system, and long-term enterprise support for the entire stack.
NVIDIA IGX Orin™ is designed to deliver ultra-fast performance in the size and power envelope needed for the edge. Powered by the world’s most powerful AI computer for energy-efficient autonomous machines with 275 tera operations per second (TOPS) of AI performance, IGX Orin also includes an NVIDIA® ConnectX®-7 smart network interface card (SmartNIC) for precision timing and advanced security.
The platform also includes remote provisioning and management and a built-in functional safety island and safety microcontroller unit (sMCU) that can be programmed through software extensions to deliver proactive safety in autonomous environments. NVIDIA IGX is safe and secure by design.
NVIDIA provides 10-year support for the IGX software stack, as well as documentation to support industrial and medical certifications. The core of the IGX stack includes a Linux board support package for the IGX hardware, drivers for supported input/output (IO) devices, NVIDIA AI inference and acceleration libraries, and reference applications. Customer-specific software components and applications can be added at the top of the IGX core stack.
IGX will also include a board management controller (BMC) and software stack for remote system management and software updates, a secure boot controller that provides external root of trust, and a dedicated safety monitor that supports a real-time operating system (RTOS) and built-in safety monitoring software.

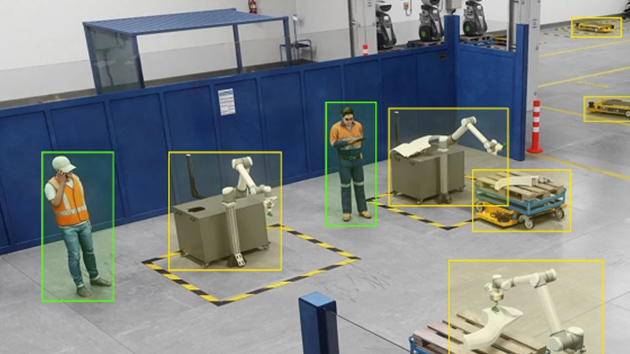

In the agile, automated, and safe factory of the future, humans and robots will work side by side, improving efficiency and safety. NVIDIA Metropolis running on NVIDIA IGX turns the entire factory into an intelligent space, leveraging insight from all the available sensor data.
Learn More >Intelligent machines augment the work of doctors, nurses, and surgeons in smart hospitals, using AI to enable better patient outcomes. NVIDIA Clara™ Holoscan running on NVIDIA IGX delivers real-time AI at the clinical edge and positions developers to quickly take to market the next generation of AI-enabled medical devices.
Learn More >In the agile, automated, and safe factory of the future, humans and robots will work side by side, improving not only efficiency but also safety. NVIDIA Metropolis running on NVIDIA IGX turns the entire factory into an intelligent space, leveraging insight from all the available sensor data. The combination of IGX Orin and NVIDIA Metropolis SDKs gives developers the powerful platform needed to accelerate functional-safety AI application development and manage fleets of autonomous machines.
Download NVIDIA Metropolis SDK >
| Key Component | |
| NVIDIA IGX Orin Module | |
| NVIDIA Orin™ SoC: · NVIDIA Ampere architecture GPU (2x GPC | 8x TPC | 2048 NVIDIA® CUDA® core | 64 Tensor Cores / 1,185.75 MHz) |
|
| · Arm® Cortex-A78AE CPU (12x Cores | 3x CPU Clusters | 64KB L1 I-cache + 64 KB L1 D-cache | 256 KB L2 per CPU core | 2 MB per CPU cluster | 1,995 MHz) | |
| · DL accelerator (2x NVDLA 2.0 Engines | 1,408 MHz) | |
| Performance: · INT8 TOPS – up to 248 · SPECint_rate2006 – up to 233 |
|
| LPDDR5: · 64 GB | 256-bit | 3,200 MHz |
|
| Storage: · eMMC – 64 GB eMMC 5.1 (HS400) · QSPI NOR Flash – 64 MB NOR Boot flash · Security Key Storage – 8 MB NOR secure Key Flash |
|
| NVIDIA BMC Module | Baseboard management controller (BMC): · Aspeed AST2600 |
| NVIDIA ConnectX-7 | Networking and PCIe bridge: · 2x QSFP · 2x PCIe Gen5 |
| Safety MCU (SMCU) | Infineon Aurix TC397 |
| dGPU card | NVIDIA RTX A6000 (optional) |
| Storage | SSD – 512 GB |
| Input and Output | |
| PCIe |
2x PCIe Gen5: · x8 lanes within 16x physical connector · x16 lanes within 16x physical connector |
| Ethernet | 2x RJ45 (up to 1 GbE) 2x QSFP ports (up to 100 GB per port / up to 25 GB per channel) |
| DisplayPort | DisplayPort 1.4a output |
| HDMI-IN | HDMI 2.0b input (up to 4kp60) |
| USB | x1 USB 3.2 Gen2 Type-C connector x4 USB 3.2 Gen2 Type-A connectors |
| Audio (AU) |
Mic In Line In Speaker out |
| Specifications | |
| Power |
100 ~ 240 VAC: 100 VAC: 12 A 240 VAC: 6 A |
| Temperature | Operating: 5°C ~ 35°C Board power off: 0°C ~ 60°C Storage: -40°C ~ 85°C |
| Relative Humidity | Operating: 8% ~ 95% Board power off: 5% ~ 95% Storage: 8% ~ 95% |
| Dimension (W × L × H) | 262.7 × 382.00 × 151.20 mm |
| Weight | 6,700g |
