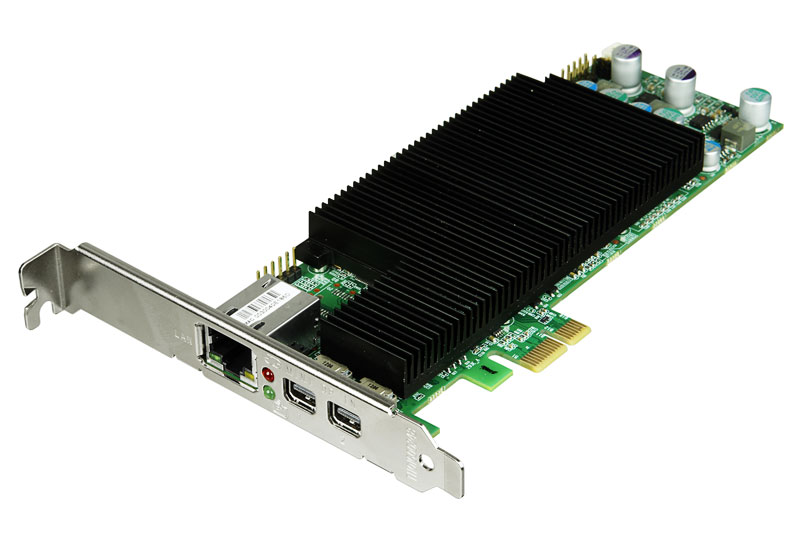

TERA2220 PCoIP Host Card

Deliver High Definition Dual-Monitor Video Performance from Remote Servers, Workstations and PCs to Client Devices for Power Users

TERA2220

PCoIP Host Card

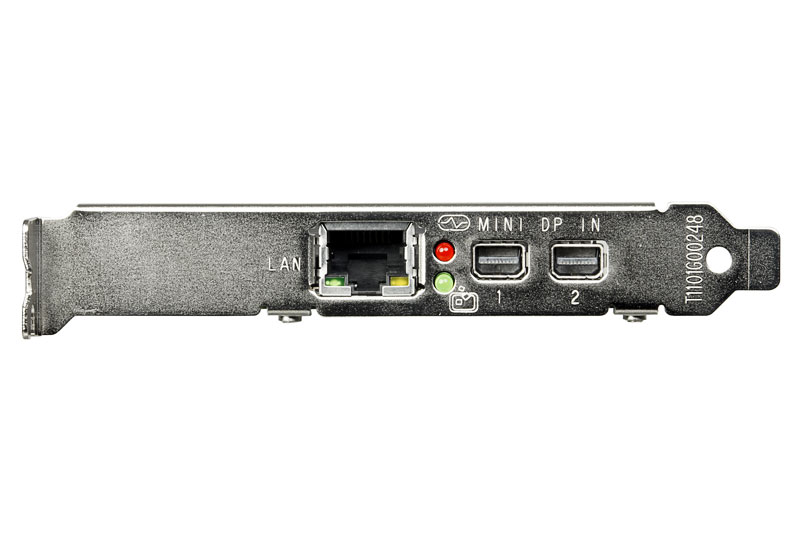

  • 1. Ethernet connector
    A. RJ45

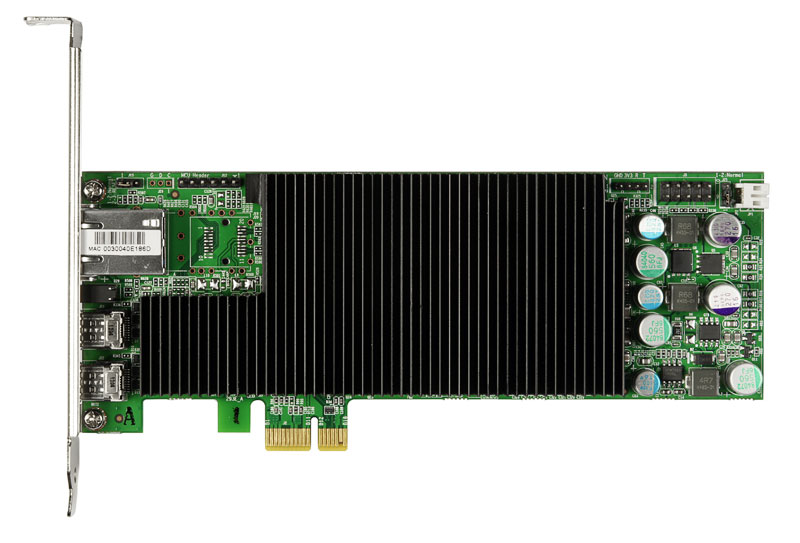

    B. SFP Fiber
  • 2. Heartbeat / Session LEDs
  • 3. mini-DisplayPort Connector

High Security and Authentication

PCoIP solution allows ALL desktop computing hardware, including existing PCs, workstations, and servers, to be moved into a secure location. PCoIP transmits pixels - NOT data - so all data stays secure in your datacenter.

PCoIP zero clients simply receive and decode encrypted image information, do not store any application data, and are immune to viral attack. It uses high standard AES 256 and NSA Suite B ciphers encryption. And extensive USB security and authentication features are provided.

  • 1. Remoted to a PCoIP zero client or a Teradici PCoIP Software Client
  • 2. All you need is a free PCIe slot and a graphics card
  • 3. An ideal low profile solution for small form factor (SFF) PC/workstation
  • 4. High Security and Privacy by locating data in the datacenter
  • 5. Completely OS Independent
  • 6. All applications run as normal
  • 7. Manages complexity and reduce cost by facilitating centralized management

Hardware Advantages over Software Codec

PCoIP remote workstation card optimizes CPU loading, network loading, and user experience at once, while other software remote solutions optimize one at the expense of the others.

Powerful Collaboration with High Performance Graphics Card

No matter you are a 3D game artist, an animation modeling designer, movie editor, or mechanical engineer, your workstation which is embedded NVIDIA Quadro or other high-performance graphics card must offer high level of interactivity while enabling unprecedented performance, features and photo-realistic image quality.

PCoIP remote workstation card series is the only hardware remote solution which allows you continue using your current graphics card to deliver the fastest application performance and the highest quality workstation graphics.

Find More NVIDIA Quadro Graphics Cards

Model TERA1202 Series (Note) TERA2240 Series TERA2220 Series
Max Number of Displays 2 4 2
Processor TERA1202 TERA2240 TERA2220
Form Factor Low Profile ATX Low Profile
Board Physical Dimensions 2.713 inches (height) X 6.6 inches (length), single slot

1 6.6 inches (length)

2 4.376 inches (height), single slot

1 6.6 inches (length)

2 2.713 inches (height), single slot

Bus Type PCI Express x1 (compatible with any xPCIe slots: x1, x4, x8, x16)
Imaging Performance 100 Mpps 250 Mpps 130 Mpps
Maximum Resolution Two 1920x1200 Two 3840x2160 (DP model only)*
Two 2560x1600
Four 1920x1200
One 3840x2160 (DP model only)*
One 2560x1600
Two 1920x1200
Max Application Frame Rate (with PCoIP Zero clients) 60 fps 60 fps 60 fps
PCIe Video Ports (connect to Graphics outputs) One DMS-59 (with DVI adapter) Four mini-DisplayPort Two mini-DisplayPort
Memory Type 128 MB XDR 512 MB DDR3 with ECC
Typical Board Power 13W 13W 13W
Encryption AES-128/Salsa256
Suite B Ciphers (Workstation)
AES-128/AES-256
Suite B Ciphers (Workstation)
Recommended Zero Client Endpoints for Full Functionality TERA1100 TERA2140 TERA2321 or TERA2140
Connectors 59-pin DMS-59 connector (supports dual DVI-D) Four mini-DisplayPort connectors Two mini-DisplayPort connectors
Ethernet connector or Fiber connector Ethernet connector or Fiber connector Ethernet connector or Fiber connector
Power Button Cable connector (optional for Remote Power Management) Power Button Cable connector (optional for Remote Power Management) Power Button Cable connector (optional for Remote Power Management)
Standalone Mode Power connector
Thermal Cooling Solution Passive heat sink
Operating System Support Completely operating system independent
System Requirements PCI Express compliant motherboard with one x1/x4/x8/x16 slot (Full height for TERA2240 and full/half height for TERA1202/2220)
PC/workstation with 1 or 2 graphics cards
For 2560x1600 resolution, graphics card port must be DisplayPort (dual-link DVI is not supported)
10/100/1000 Mbps Ethernet LAN or 100/1000 Mbps Fiber switch/router
Package Content PCoIP host card PCoIP host card PCoIP host card
One dual DVI to DMS-59 cable One to four DVI to mini-DisplayPort cables (Optional) One or two DVI to mini-DisplayPort cables (Optional)
Ethernet cable x 1 (Optional) One to four DisplayPort to mini-DisplayPort cables (Optional) One or two DisplayPort to mini-DisplayPort cables (Optional)
Power Button cable x 1 (optional for Remote Power Management) One to four mini-DisplayPort to mini-DisplayPort cables (Optional) One or two mini-DisplayPort to mini-DisplayPort cables (Optional)
Additional Low Profile bracket x 1 Power Button cable x 1 (optional for Remote Power Management) Power Button cable x 1 (optional for Remote Power Management)
Quick installation guide Quick installation guide Additional Low Profile bracket x 1
    Quick installation guide

Note : Previous Generation

* 4K resolutions are supported on 4K UHD monitors connected to PCoIP Zero Client DisplayPort models using firmware 20.01 or newer, while connected to Remote Workstation Cards running firmware 20.01 or newer.



Brochure Download

TERA2220 PCoIP Host Card
OS Language Version Description
Utility
English1.10.8
( 2017/1/16 )
Supporting Models :TERA2 and TERA1 Host Cards and Zero Clients
PCoIP Management Console (PCoIPMC) enables administrators to centrally manage a PCoIP deployment. more
Total size: [ 501553 KB ]
download
Driver tools
CentOS7.7,LinuxEnglish17.05.0
( 2020/6/12 )
Supporting Models :TERA2 Remote Workstation cards
This is an optional host software driver that provides features such as Local Cursor, which can greatly enhance user experience in a WAN environment. more
Total size: [ 3225 KB ]
download

10
8
7 64bit
English17.05.0
( 2020/6/12 )
Supporting Models :TERA2 Remote Workstation cards
The PCoIP host software for Windows is a collection of drivers and applications that let Windows OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more
Total size: [ 5119 KB ]
download

10
8
7 64bit
English4.3.1
( 2016/12/15 )
Supporting Models :TERA2 host cards
The PCoIP host software for Windows is a collection of drivers and applications that let Windows OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more
Total size: [ 5276 KB ]
download

RHEL7.1,CentOS6.6,SLED11
English4.7.0
( 2015/9/18 )
Supporting Models :TERA2 host cards
The PCoIP host software for Linux is a collection of drivers and applications that let Linux OS interact with the PCoIP host processor installed in the host PC/workstation and a PCoIP zero client connected to the host. more
Total size: [ 94461 KB ]
download
Applications

XP
Vista
7
8
English1.10
( 2017/1/5 )
Supporting Models :TERA2 PCoIP host cards
Teradici PCoIP Software Clients are applications for Windows computers that allow users to establish a direct PCoIP session with a remote workstation containing a TERA2 host Card more
Total size: [ 26394 KB ]
download
MacEnglish1.10
( 2017/1/5 )
Supporting Models :TERA2 PCoIP host cards
Teradici PCoIP Software Clients are applications for MAC computers that allow users to establish a direct PCoIP session with a remote workstation containing a TERA2 host Card more
Total size: [ 24041 KB ]
download
Firmware
Multilanguage17.05.3
( 2020/8/28 )
Supporting Models :TERA2 Host Cards
Remote Workstation Card Firmware 17.05.3 is a firmware release replacing firmware 4.9.0 for Remote Workstation Cards (not PCoIP Zero Clients). This release is a maintenance release with bug fixes and security updates over release 4.9.0.  If remote workstation cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 17.05.3.
Total size: [ 10279 KB ]
download
Multilanguage5.1.0
( 2019/3/7 )
Supporting Models :TERA2 Host Cards only
This firmware is speciᴏc to TERA2 Remote Workstation Cards and cannot be used on Zero Clients.  If zero clients or host cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 5.1.0. more
Total size: [ 10247 KB ]
download
Multilanguage4.9.0
( 2016/12/1 )
Supporting Models :TERA2 Host Cards only
It is highly recommended that release 4.9.0 should be installed on the TERA2 Host. This firmware is speciᴏc to TERA2 Remote Workstation Cards and cannot be used on Zero Clients.  If zero clients or host cards have firmware 4.2.0 or earlier installed, then you will need to install firmware 4.6.0 in order to upgrade to 4.9.0. more
Total size: [ 41686 KB ]
download
Multilanguage4.6.0
( 2014/10/7 )
Supporting Models :TERA2 Host Cards and Zero Clients
This is a major release 4.6.0 installed on both the TERA2 Host and Zero Client. more
Total size: [ 19340 KB ]
download

TERA2220 PCoIP Host Card
Language Version Description
User's Manual
EnglishIssue 13
( 2016/5/31 )
This Administrators Guide helps you through the process to set up and configure your TERA2 products.
Total size: [ 10309 KB ]
download
Quick Guide
MultilanguageA
( 2012/11/13 )
Supporting Models :TERA2 Host Cards
This Quick Start Guide will help you configure your TERA2 host card.
Total size: [ 4218 KB ]
download
MultilanguageA
( 2016/3/2 )
Supporting Models :TERA2 Zero Clients
This Quick Start Guide will help you configure your TERA2 zero client.
Total size: [ 2940 KB ]
download
DM
(繁體中文)2015
( 2015/5/4 )
PCoIP產品型錄
Total size: [ 1757 KB ]
download
English2017
( 2017/5/12 )
PCoIP product brochure
Total size: [ 3803 KB ]
download
Deployment Guide
English2.6
( 2016/11/30 )
Supporting Models :PCoIP host/client
PCoIP Protocol Virtual Network Design Checklist more
Total size: [ 536 KB ]
download
EnglishIssue 3
( 2013/1/31 )
Using PCoIP Host cards with VMware View more
Total size: [ 1405 KB ]
download
