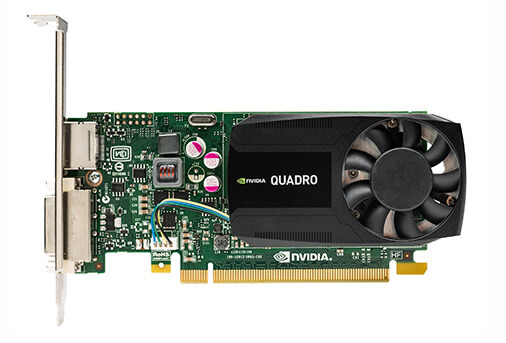

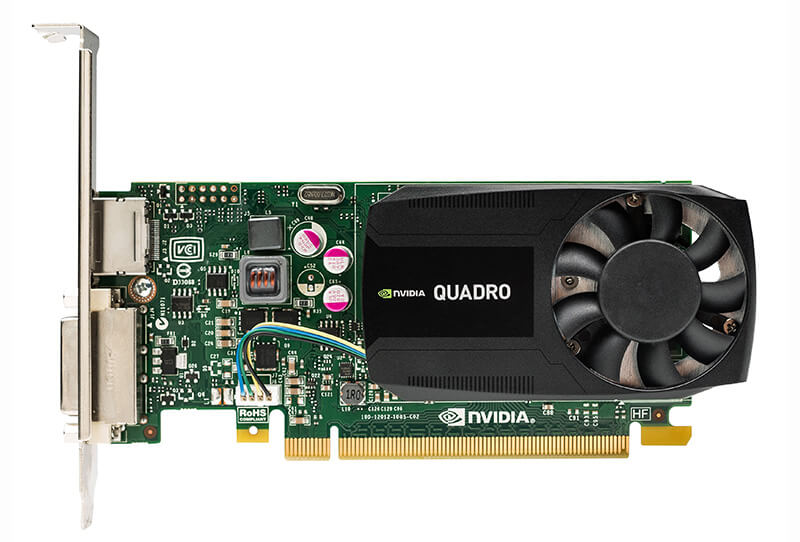

NVIDIA Quadro K620
- Add to Compare
Features
NVIDIA® CUDA® Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
Large Framebuffers with Ultra-Fast Bandwidth
Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.
NVIDIA® Parallel DataCache™
Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.
Dynamic Parallelism
Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.
Remote Workstation Application Acceleration
Remotely interact with professional GPU-accelerated applications through software such as Quadro Experience, Microsoft RDP, Splashtop, and HP Remote Graphics Software.
Ultra-Quiet Design
Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.
GPU Tessellation
Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.
| CUDA parallel processing cores | 384 |
| Frame Buffer Memory | 2GB DDR3 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 29 GB/s |
| Max Power Consumption | 41 W |
| Graphics Bus | PCI Express 2.0 x16 |

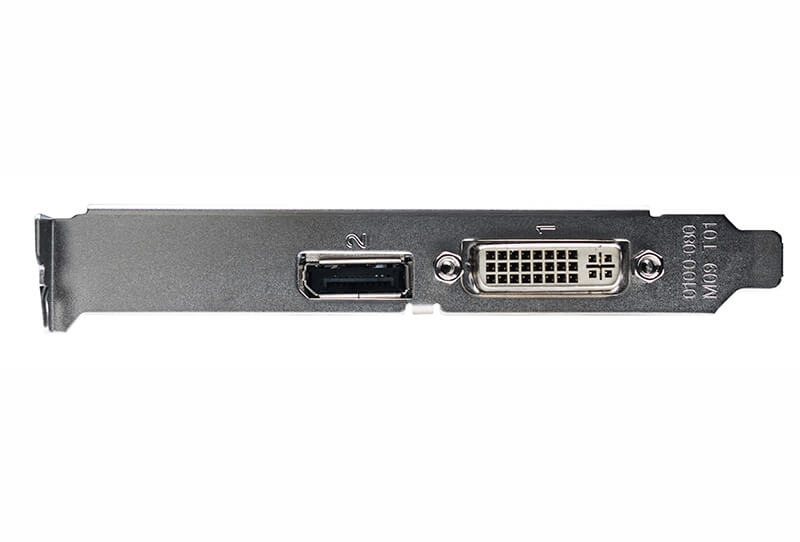

| Display Connectors | DVI-I (1), DP 1.2 (1) |
| Form Factor | 2.713” H x 6.3” L Single Slot |
| Thermal Solution | Active |
| NVIDIA® 3D Vision® and 3D Vision Pro | Support via USB connection to 3D Vision Hub |
| NVIDIA Quadro K620 | |||
|---|---|---|---|
