WinFast GS2050T-A

  • Optimized for AI/Deep Learning GPU peering
  • Optimized for NVIDIA Virtual GPU
  • Supports up to 4 double-width GPU cards

>

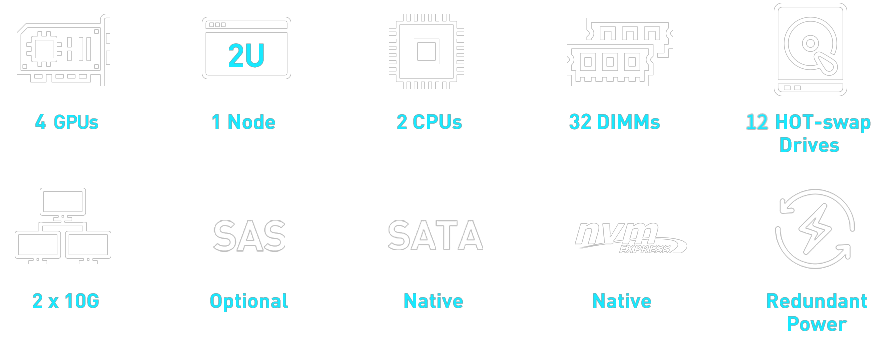

Key Features


  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of ECC memory; RDIMMs up to DDR5 5600 MHz
  • 4 PCI-E 5.0 x16 slots (FHFL),
    1x AIOM/OCP 3.0 NIC slot
  • Support up to 4 pcs of Double-width GPUs
  • Dual 10GBase-T LAN ports
  • 12x 3.5”/2.5”Hot-swap NVMe/SATA/SAS drive bays
  • 4x 8cm heavy duty fans with optimal fan speed control
  • 2x 1200W Redundant Power Supplies Titanium Level (96%)

    • Multiple GPU support

    WinFast GS2050T-A features a powerful GPU architecture that supports up to 4 double-width passive GPUs (NVIDIA®  H100/L40S/A100/A40/A16) or 4 double-width active GPUs(NVIDIA® RTX 6000/5000/4000 Ada), enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

    PCIe® 5.0 doubles the data transfer speed over the previous generation

    PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

    SATA vs NVMe

    Cooling System

    High efficiency cooling system-4x Heavy duty fans with Optimal Fan Speed Control, for less power and ensure a stable environment and availability 24/7.

    System Health Monitoring

    The system has an onboard Baseboard Management Controller (BMC)
    chip that supports system health monitoring.

    Onboard Voltage Monitors

    The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

    Fan Status Monitor with Firmware Control

    The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

    Environmental Temperature Control

    System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

    System Resource Alert

    This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

    Optional software

    Applications


    Manufacturing

    Manufacturing

    Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
    Media & Entertainment

    Media & Entertainment

    From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
    Architecture

    Architecture, Engineering and Construction

    Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

    AI Applications


    CONSUMER INTERNET

    CONSUMER INTERNET

    Ad Personalization Click Through Rate Optimization Churn Reduction.
    OIL & GAS

    OIL & GAS

    Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
    FINANCIAL SERVICES

    FINANCIAL SERVICES

    Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
    MANUFACTURING

    MANUFACTURING

    Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
    HEALTHCARE

    HEALTHCARE

    Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
    TELECOM

    TELECOM

    Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
    RETAIL

    RETAIL

    Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
    AUTOMOTIVE

    AUTOMOTIVE

    Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
    Smart Home

    SMART HOME

    AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

    Processor
    CPU
    Dual Socket E (LGA-4677)
    5th/4th Gen Intel® Xeon® Scalable processors
    Support CPU TDP 350W
    Up to 64 Cores

    System Memory
    Memory Capacity
    32 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
    Memory Type 4800/5600MHz ECC DDR5 RDIMM

    On-Board Devices
    Chipset Intel® C741 chipset
    SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Controllers Dual Port 10GbE from Intel X550 or Broadcom BCM57416
    IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics ASPEED AST2600 BMC

    Input / Output
    SATA 8 SATA3 (6Gbps) ports
    LAN
    2 RJ45 10GBase-T LAN ports
    1 RJ45 Dedicated IPMI LAN port
    USB 2 USB 2.0 ports (rear)
    2 USB 3.0 ports (header)
    Video 1 VGA Connector

    Form Factor
    2U Rackmountable with Rail kit

    Dimensions
    Height 3.5"(88.9mm)
    Width 17.2"(437mm)
    Depth 29.9"(760mm)
    Weight
    Net Weight: 40 lbs (18.2 kg)
    Gross Weight: 66 lbs (30 kg)

    Drive Bays / Storage
    Hot-swap 12x 3.5”/2.5” hot-swap NVMe/SATA/SAS drive bays

    Expansion Slots
    PCI-Express
    4 PCI-E 5.0 x16 slots
    1 AIOM/OCP 3.0 NIC slot

    System Cooling
    Fans 4x 8cm Heavy duty fans with optimal fan speed control

    Power Supply
    Power 2x 1200W 1U Redundant Power Supplies with PMBus
    (Optional 2000W Redundant power supply for 4pcs 250W GPU)
    (Optional 2600W Redundant power supply for 4pcs 300W GPU)
    AC Input 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
    +12V Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    Output Type Backplanes (gold finger)

    OS Compatibility
    OS
    Windows: WS2022
    RedHat: RHEL 8.7/9.0
    VMWare: ESXi 8.0/7.0U3

    Operating Environment
    RoHS RoHS Compliant
    Environmental Spec.
    Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    • Revised web page of product spec and information won't be noticed, product colorbox printing shows the actual information of the product.
    • Above product spec is for reference only, actual spec rely on the real product and Leadtek keeps the right to alter. Each sales region will impacts the product difference, please contact your supplier for making sure the actual product information.
    • The adapter, cable and software listed on the web page are for reference only and Leadtek keeps the right to alter, revised information won't be noticed.
    • Above brand name and product name are trademark of each corresponding company.
