WinFast GS4840

  • Optimized for AI/Deep Learning GPU peering
  • Supports 10 double-wide GPU cards
  • Dual Root System with excellent GPU peer to peer communication

Key Features


  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • 12x PCI-E Gen 4.0 x16 FHFL Slots
  • Support Up to 10 NVIDIA GPU (Tesla/Quadro) cards
  • IPMI: ASPEED AST2600
  • 4x 2000W Redundant Power Supplies, Titanium Level (96%)
  • 32 DIMMs, up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM, Supports Intel® Optane™ Persistent Memory 200 series
  • 2x M.2 Interface: PCI-E 4.0 x4 or SATA
    M.2 Form Factor: 2280, 22110
  • Dual LAN with 1GbE

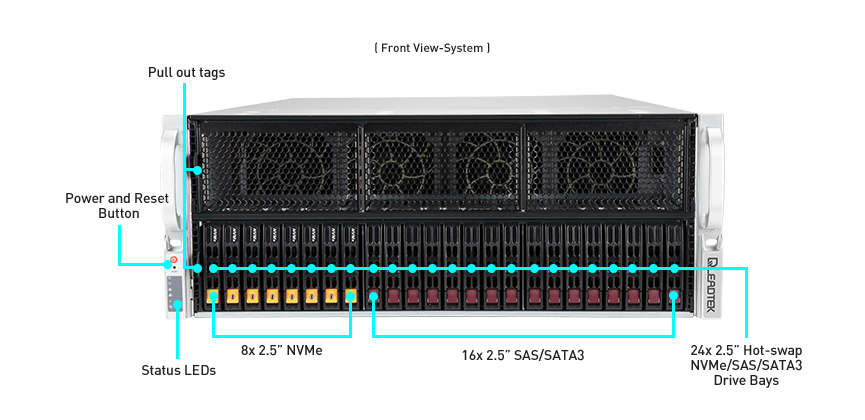

  • 24x Hot-swap 2.5" drive bays (8x NVMe drives supported by default)

Multiple GPU support

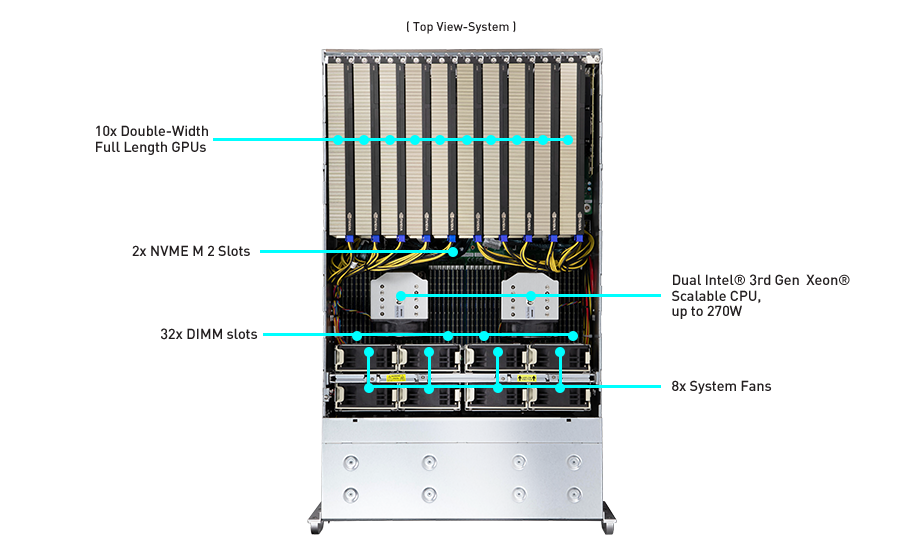

WinFast GS4840 features a powerful GPU architecture that supports up to 10 double-width GPUs in a 4U server, including NVIDIA® A40/A30/A10/A6000, Tesla V100s/V100/T4, Quadro RTX8000/RTX6000®, plus features NVIDIA NVLink® Bridge to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

PCIe® 4.0 doubles the data transfer speed over the previous generation

PCIe 4.0 delivers double the I/O performance over PCIe 3.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

Up to 5.3X performance than SATA

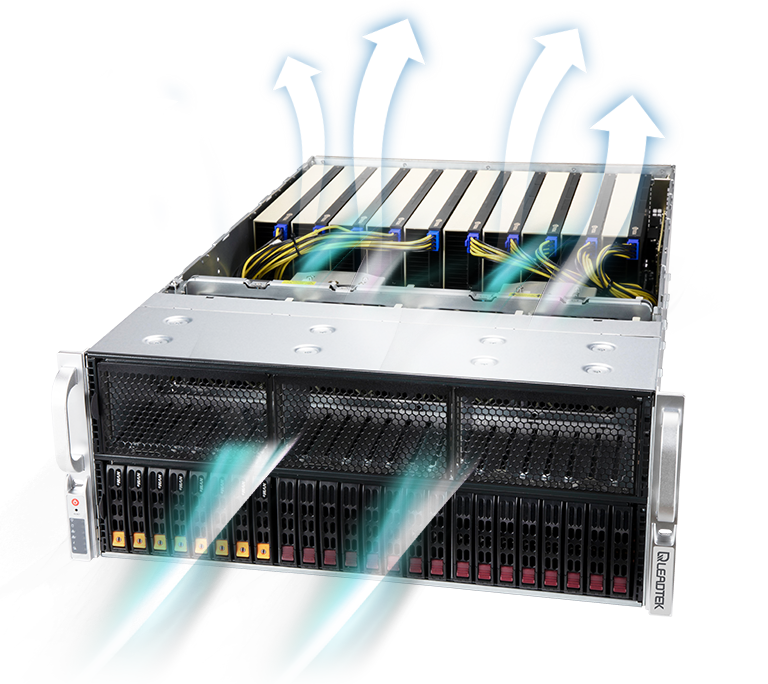

Cooling System

High efficiency cooling system-5x Heavy duty fans with Optimal Fan Speed Control, for less power and ensure a stable environment and availability 24/7.

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

Processor

CPU
  • Dual Socket P+ (LG-4189)
    3rd Gen Intel® Xeon® Scalable processors
  • 3 UPI up to 11.2GT/s
  • Support CPU TDP 270W

System Memory

Memory Capacity
  • 32x DIMM slots
  • Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Type 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621A
SATA SATA3 (6Gbps); RAID 0/1/5/10 support
Network Supports 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

SATA 8x SATA3 (6Gbps) ports
NVMe 2x M.2 Socket support NVMe/SATA

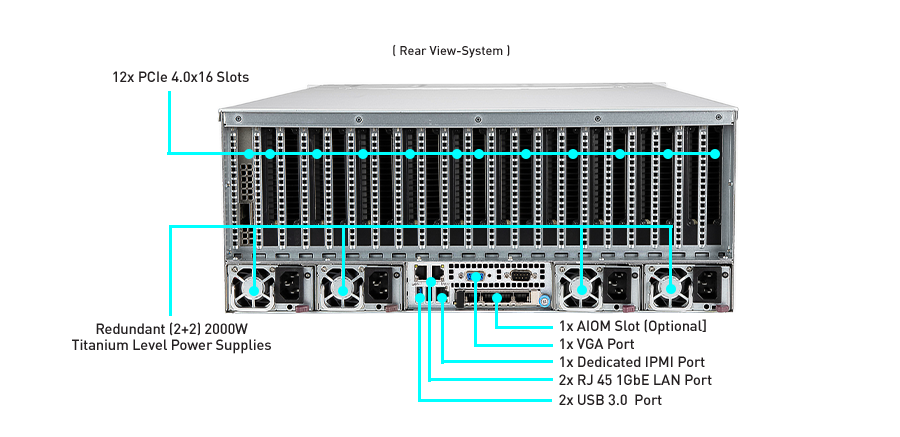

LAN
  • 2x RJ45 1GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 2x USB 3.0 ports
Video 1x VGA port

Form Factor

4U Rackmountable with Rail kit

Dimensions

Height 7.0" (178mm)
Width 17.2" (437mm)
Depth 29" (737mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)

Drive Bays / Storage

  • 16x Hot-swap 2.5” SATA/SAS
    8x Hot-swap 2.5” NVMe
    Total 24x 2.5" Hot-swap drive bays2 M.2 NVMe/SATA Socket
  • 2 M.2 NVMe

Expansion Slots

PCI-Express 12 PCI-E Gen 4.0 X16 FHFL Slots
M.2
  • 2 M.2 Interface: PCI-E 4.0 x4 or SATA
  • Form Factor: 2280, 22110

System Cooling

Fans 8 heavy duty fans with optimal fan speed control

Power Supply

4x 2000W redundant Titanium level power supplies with PMBus
Total Output Power
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc (For CCC Only)
AC Input Frequency 50-60Hz

OS Compatibility

  • Windows Server 2016/2019
  • RHEL 8.2 or later
  • Ubuntu 20.04 LTS

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
