WinFast GS4855T

  • Optimized for AI/Deep Learning GPU peering
  • Supports 10 double-wide GPU cards
  • Dual-Root System with excellent GPU peer to peer communication

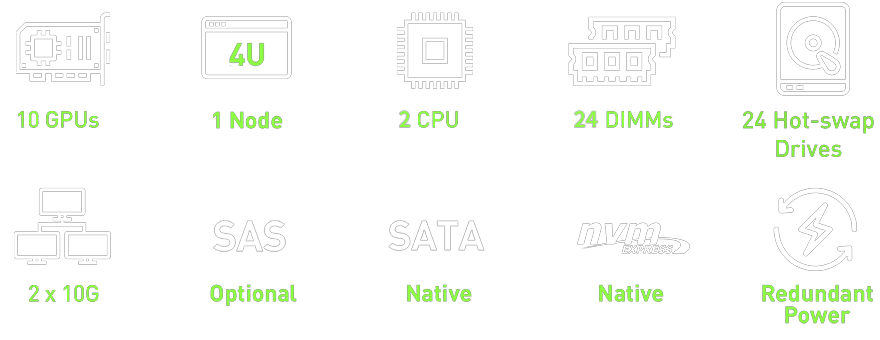

Key Features


  • Dual AMD EPYC™ 9004/9005 Series Processors (Socket SP5), up to 400W TDP
  • 24 DIMMs, up to 6TB 6000MT/s ECC DDR5 RDIMM
  • 13 PCIe 5.0 x16 FHFL slot(s)
  • Support Up to 10 GPU cards
  • Dual LAN with 10GbE RJ45
    IPMI: ASPEED AST2600
  • 24x Hot-swap SATA/SAS/NVMe 2.5" drive bays (8x NVMe and 2 SATA drives supported by deault)
  • 8 heavy duty fans with optimal fan speed control
  • 4x 2000W(2+2) Redundant Power Supplies,  Titanium Level (96%)

Multiple GPU support

WinFast GS4855T features a powerful GPU architecture that supports up to 10 double-width GPUs in a 4U server, including NVIDIA® H100/L40/L40S/A100/A6000/6000 Ada, to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

AMD EPYC™ 9004/9005 series processors

4th / 5th Gen AMD EPYC processors are on the cutting edge of server processor technology, with up to 128 cores based on a 5nm process. Supporting those cores is 1MB se cores is 1MB per core of L2 Cache, and 32MB per CCD of L3 cache, along with 12 DDR5 channels supporting up to 6TB of memory, CXL™ memory expansion, and PCIe® 5.0 support, offering up to 128 lanes of high bandwidth for the latest graphics and storage technologies.

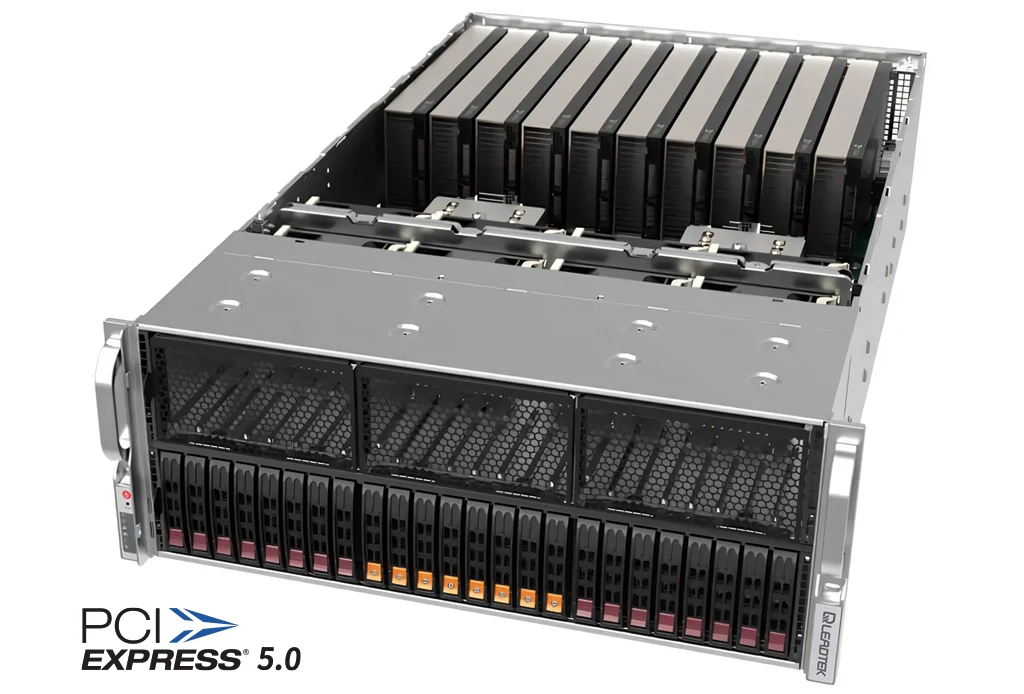

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

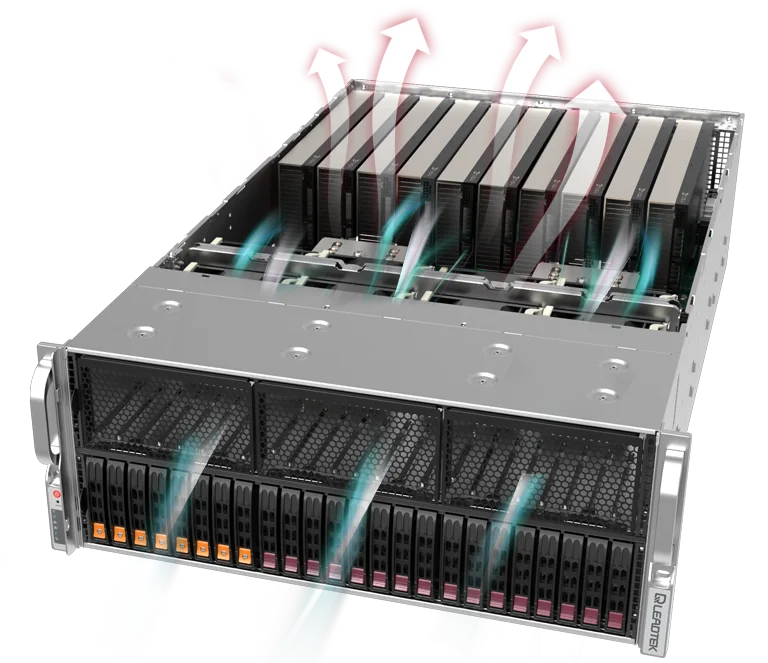

Cooling System

High efficiency cooling system-5x Heavy duty fans with Optimal Fan Speed Control, for less power and ensure a stable environment and availability 24/7.

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor
CPU
  • Dual Socket SP5 AMD EPYC™ 9004/9005 Series Processors
  • Up to 96 Core/192 Thread
  • Support up to TDP 400W
System Memory
Memory Capacity
  • 24x DIMM slots
  • Up to 6TB: 24x 256 GB DRAM
Memory Type 6000MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset AMD SP5
SATA SATA3 (6Gbps)
Network 2x 10GbE BaseT
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2600 BMC

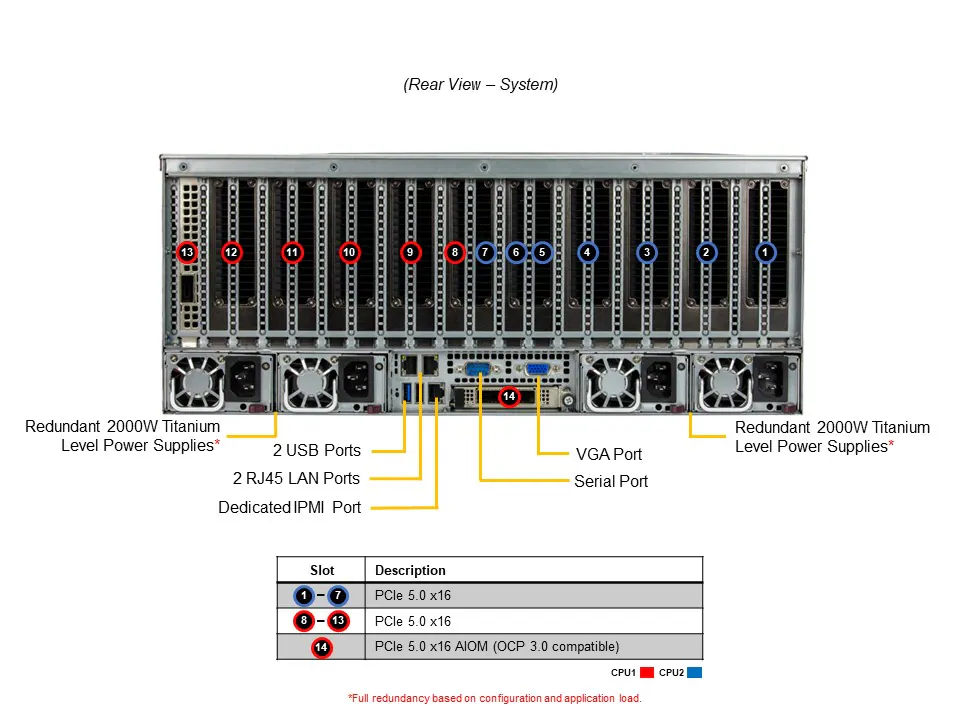

Input / Output
SATA 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 2x USB 3.0 ports
Video 1x VGA port
Form Factor
4U Rackmountable with Rail kit
Dimensions
Height 7" (178mm)
Width 17.2" (437mm)
Depth 29" (737 mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)

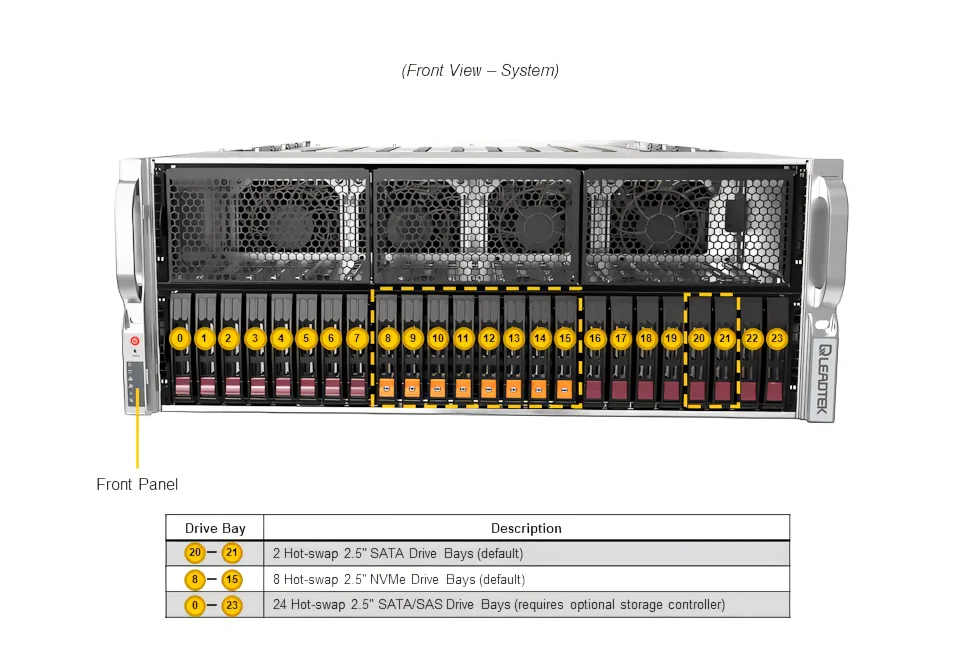

Drive Bays / Storage
24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe and 2x SATA drives supported by default)
Expansion Slots
PCI-Express 13 PCIe 5.0 x16 FHFL slot(s)
System Cooling
Fans 8 heavy duty fans with optimal fan speed control
Power Supply
4x 2000W Redundant (2+2) Titanium level power supplies with PMBus
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
  • Max: 3.5A
OS Compatibility
  • Windows Server 2022
  • RHEL 9.0
  • Ubuntu 22.04/24.04
Operating Environment
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
