WinFast HSA1600

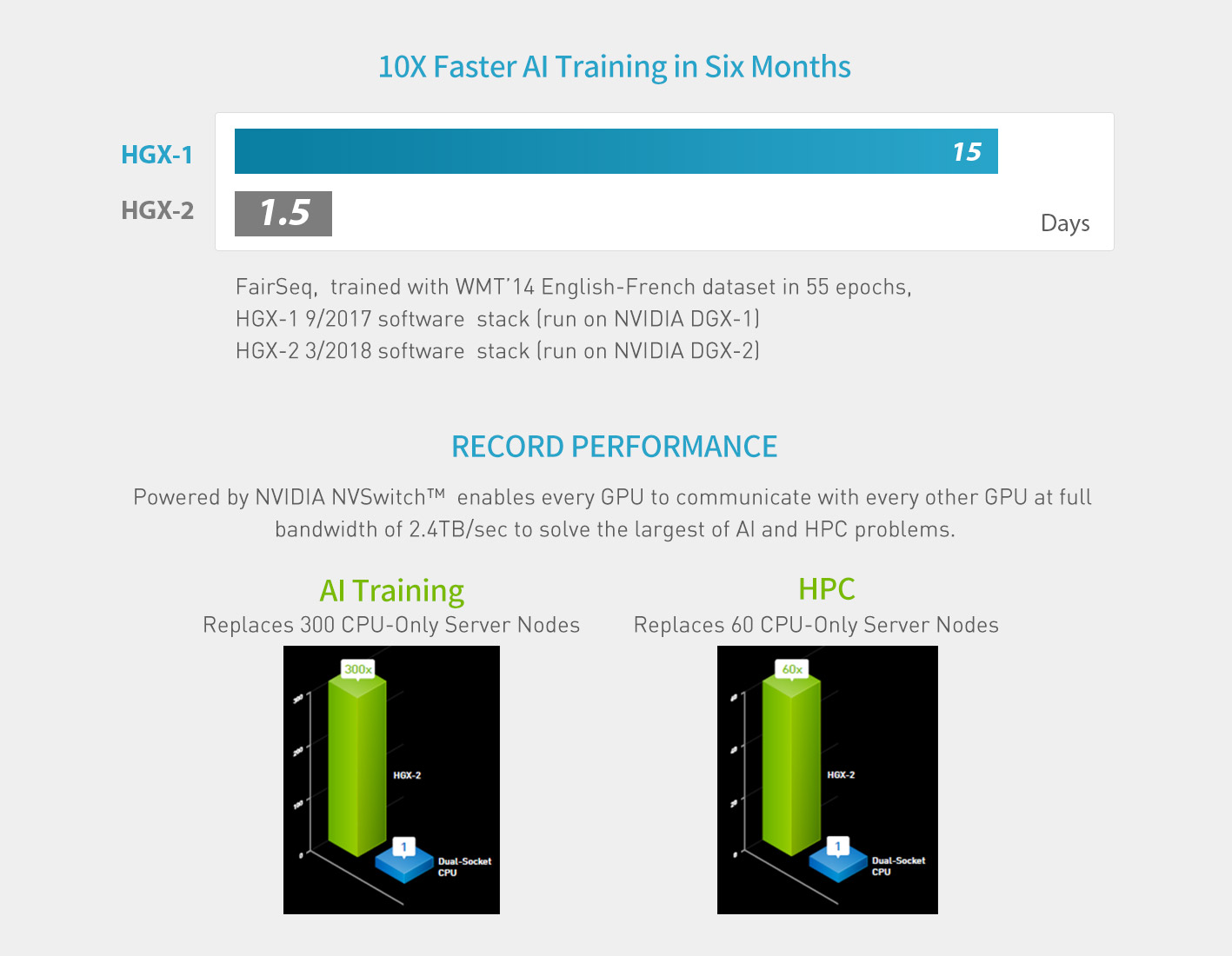

  • HGX-2 Architecture
  • 16x Tesla V100 SXM3 GPUs
  • NVLink + NVSwitch based high performance GPU Interconnect

Optimized for

  • AI / Deep Learning
  • Scientific Research
  • 3D Rendering Farm
  • Astrophysics, Business Intelligence

Key Features


  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 3TB 3DS ECC LRDIMM, up to  DDR4-2666MHz; 24 DIMM slots
  • 16 PCI-E 3.0 x16 for RDMA via IB EDR;2 PCI-E 3.0 x16 on board
  • Supports 16 V100 SXM3 350W GPUs with NVSwitch and NVLink
  • Dual 10GBase-T LAN with Intel® X540
  • 16 Hot-swap 2.5" NVMe drives
    6 Hot-swap 2.5" SATA3 drive bays
  • 6x 80mm Hot-swap PWM Fans
    8x 92mm Hot-swap Fans
  • 6x (5+1) 3000W Redundant Power Supplies; Titanium Level (96%+)

Features

  • High-precision calculations using FP64 and FP32 for scientific computing and simulations.
  • Enabling FP16 and Int8 for AI training and inference.
  • Unprecedented versatility provides unique flexibility to support the future of computing.

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3

Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Customer Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.

Processor

CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors
  • 3 UPI up to 10.4GT/s
  • Support CPU TDP 205W

System Memory

Memory Capacity
  • 24 DIMM slots
  • Up to 3TB 3DS ECC L/RDIMM, up to DDR4-2666MHz
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers Dual Port 10GBase-T from Intel X540 Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC

Input / Output

SATA 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (front)
Video 1 VGA Connector
COM Port 1 COM port (header)

Form Factor

10U Rackmountable with Rail kit

Dimensions

Height 17.2" (437mm)
Width 17.8" (452mm)
Depth 27.75" (705mm)
Weight
  • Net Weight: 298 lbs (135 kg)
  • Gross Weight: 385 lbs (175 kg)

Drive Bays / Storage

Hot-swap
  • 16 Hot-swap 2.5" SAS/SATA drive bays
  • 6 Hot-swap 2.5" SATA3 drive bays
 M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factors: 2280, 22110
  • Key: M-Key

Expansion Slots

PCI-Express
  • 16 PCI-E 3.0 x16 for RDMA via IB EDR
  • 2 PCI-E 3.0 x16 on motherboard

System Cooling

Fans
  • 6x 80mm Hot-swap PWM Fans
  • 8x 92mm Hot-swap Fans

Power Supply

6x 3000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 2883W with Input 200 - 207Vac
  • 3000W with Input 208 - 240Vac

OS Compatibility

  • Ubuntu 18.04 LTS (x64) or later
  • Red Hat Enterprise Linux 7.6 (x86_64) or later

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
