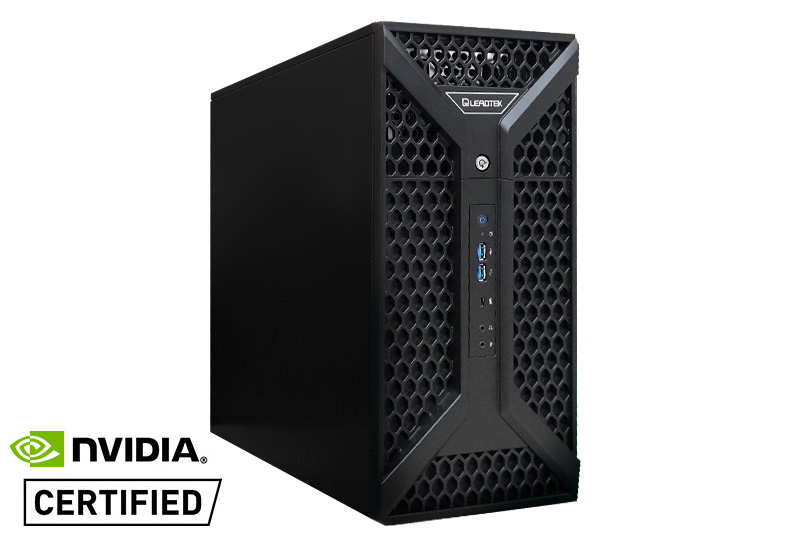

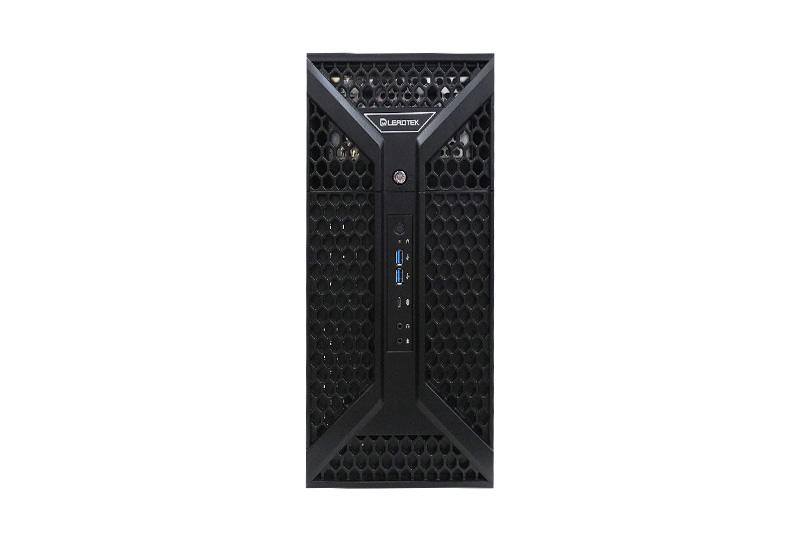

WinFast WS1040

  • NVIDIA-Certified Workstation
  • High-end Workstation
  • Support 2 NVIDIA Double-Width GPUs
  • Ideal for AI/Deep Learning/3D rendering

Key Features

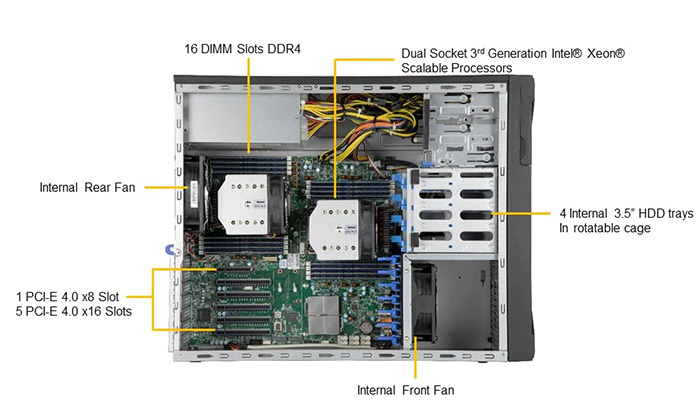

  • Dual Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
  • 16 DIMMs, up to 5TB: 8x 128 GB DRAM and 8x 512 GB PMem
    Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM
    Supports Intel® Optane™ DCPMM
  • 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8 slots
    2 NVMe M.2 slots
    M.2 Interface: PCI-E 4.0 x4
    M.2 Form Factor: 2280, 22110
    2 PCI-E 4.0 NVMe x8 Internal Port(s)
  • Support Up to 3 NVIDIA Quadro/GeForce cards (2 Double and 1 single width)
  • Dual LAN with GbE (IPMI Shared on LAN port1)
  • IPMI: ASPEED AST2600
  • 4 3.5" SATA (NVMe optional) drive bays
    2 Standard 5.25" drive bays
  • 1200W Platinum Level Certified High-efficiency Power Supply

Multiple GPU support

WinFast WS1040 features a powerful GPU architecture that supports up to 3 single-width or 2 double-width Ampere series GPUs, including NVIDIA® RTX A6000/A5000/A4000, plus features NVIDIA NVLink® Bridge to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

PCIe® 4.0 doubles the data transfer speed over the previous generation

PCIe 4.0 delivers double the I/O performance over PCIe 3.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

Up to 5.3X performance than SATA

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor

CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 270W
  • Up to 40 Cores

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 5TB: 8x 128 GB DRAM and 8x 512 GB Pmem
  • Supports Intel® Optane™ persistent memory 200 series
Memory Type 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621A chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers Dual LAN with GbE

Input / Output

SATA 8 SATA3 (6Gbps) ports
NVMe 2 NVMe support with M.2 Socket

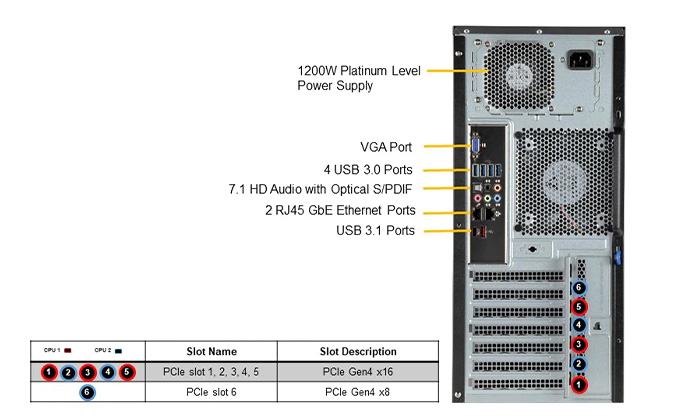

LAN 2 RJ45 Gigabit Ethemet LAN ports (IPMI Shared on LAN port1)
USB

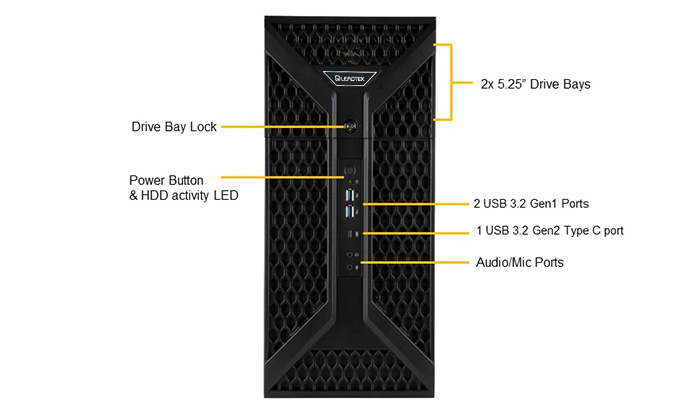

  • 2 USB 3.2 Gen2 port(s) (1 Front; 1 Rear)
  • 6 USB 3.2 Gen1 port(s) (2 Front; 4 Rear)
Video 1 VGA port
Audio 7.1 HD Audio with optical S/PDIF

Form Factor

Mid-Tower

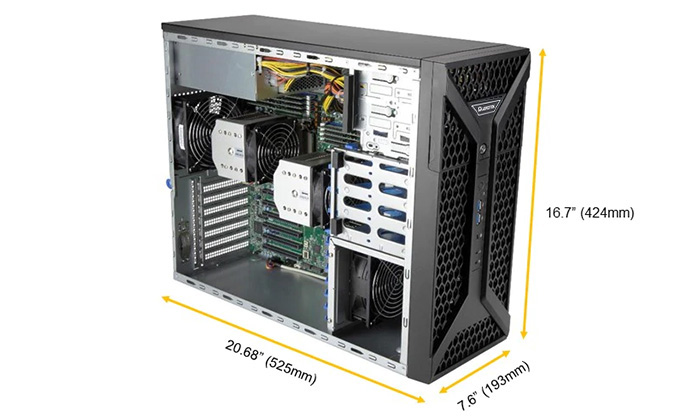

Dimensions and Weight

Height 16.7" (424mm)
Width 7.6" (193mm)
Depth 20.68" (525.3mm)
Weight Gross Weight: 30 lbs (13.61 kg)

Drive Bays / Storage

  • 4x 3.5" SATA (NVMe optional) drive bays
  • 2 M.2 (M-key, 2280/22110)

Expansion Slots

PCI-Express
  • 5 PCI-E 4.0 x16 slots
  • 1 PCI-E 4.0 x8 slots
M.2
  • M.2 Interface: PCI-E 4.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

System Cooling

Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm front cooling fan

Power Supply

1200W high-efficiency power supply w/ PMBus
AC Input 100-240Vac / 8A Max / 50-60Hz

OS Compatibility

  • Windows 10
  • Windows Server 2019
  • Ubuntu 20.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
