Add to Compare

WinFast WS1050

High-end Workstation
Support 2 NVIDIA Double-Width GPUs
Ideal for AI/Deep Learning/3D rendering

Key Features

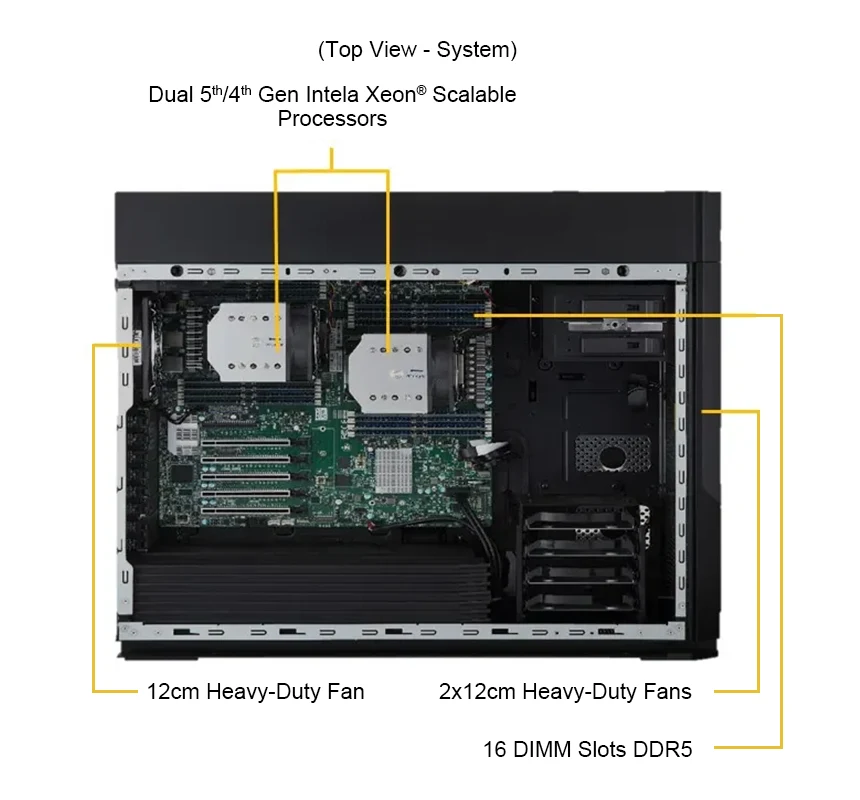

Dual Socket E (LGA-4677)support 5th/4th Gen Intel^® Xeon^® Scalable processors
16 DIMMs, up to Up to 4TB: 16x 256 GB DRAM
Memory Type: 5600MT/s ECC DDR5 RDIMM
5 PCIe 5.0 x16 FHFL slot(s)
1 PCIe 5.0 x8 FHHL slot(s)
2 NVMe M.2 slots
M.2 Interface: PCI-E 5.0 x4
M.2 Form Factor: 2280, 22110
2 PCI-E 5.0 NVMe x8 Internal Port(s)
Support up to 2 NVIDIA Double- width GPU cards
Dual LAN with 10GbE
IPMI: ASPEED AST2600
4 fixed internal 3.5" SATA drive bays,
2 fixed front 2.5" SATA drive bays,
2 Standard 5.25" drive bays
2000W Platinum Level Power Supply

PCIe^® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

Up to 5.3X performance than SATA

5U Rackmountable / Tower Workstation

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

Processor

CPU	Socket E (LGA-4677) 5th/4th Gen Intel^® Xeon^® Scalable Processors Support CPU TDP 350W Up to 64 Cores

System Memory

Memory Capacity	16 DIMM slots Up to 4TB: 16x 256 GB DRAM
Memory Type	Up to 5600MT/s ECC DDR5 RDIMM

On-Board Devices

Chipset	Intel^® C741
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual LAN with 10GbE

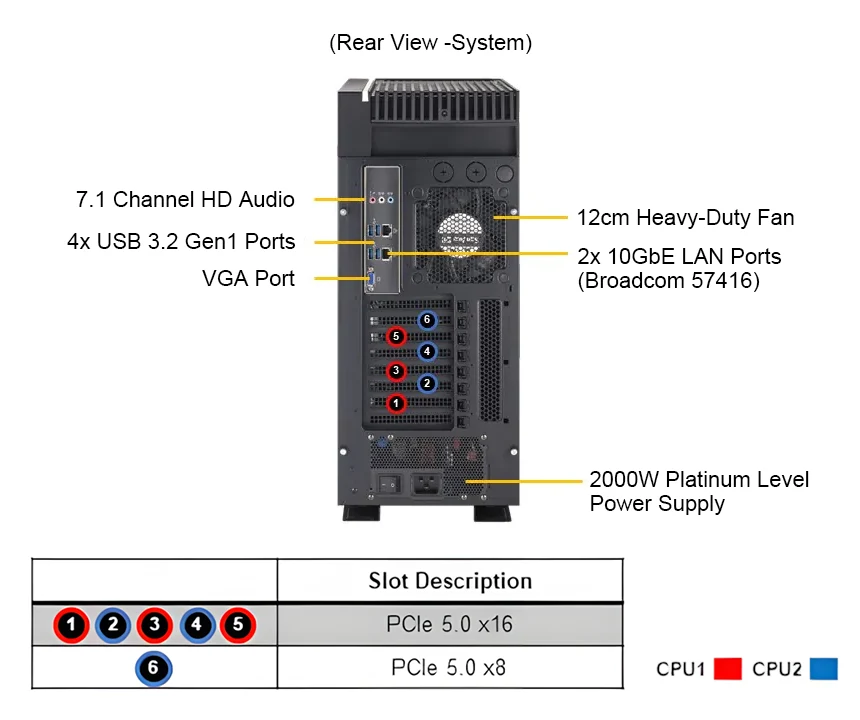

Input / Output

SATA	8 SATA3 (6Gbps) ports
NVMe	2 NVMe support with M.2 Socket
LAN	2 RJ45 10 Gigabit Ethernet LAN ports
USB	5 USB 2.0x2; 3.2 Gen1x2; 3 port(s) (5 Front_USB) 4 USB 3.2 Gen1 port(s) (4 Rear_USB)
Audio	7.1 Channel HD Audio
Video	1 VGA port

Form Factor

Tower or 5U Rackmount

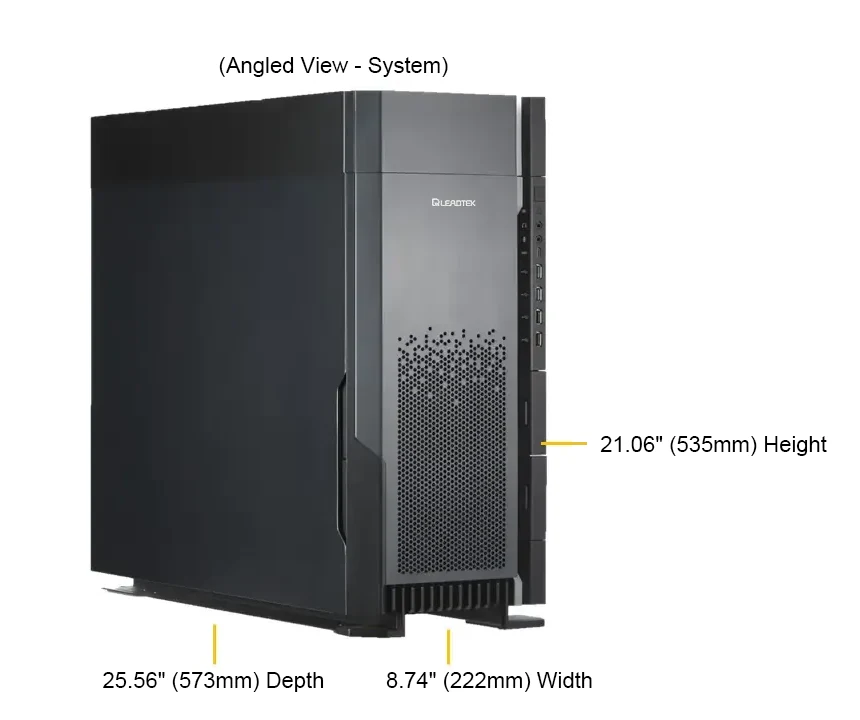

Dimensions

Height	21.1" (536mm)
Width	8.7" (221mm)
Depth	22.6" (574mm)
Weight	Gross Weight: 59.5 lbs (27 kg)

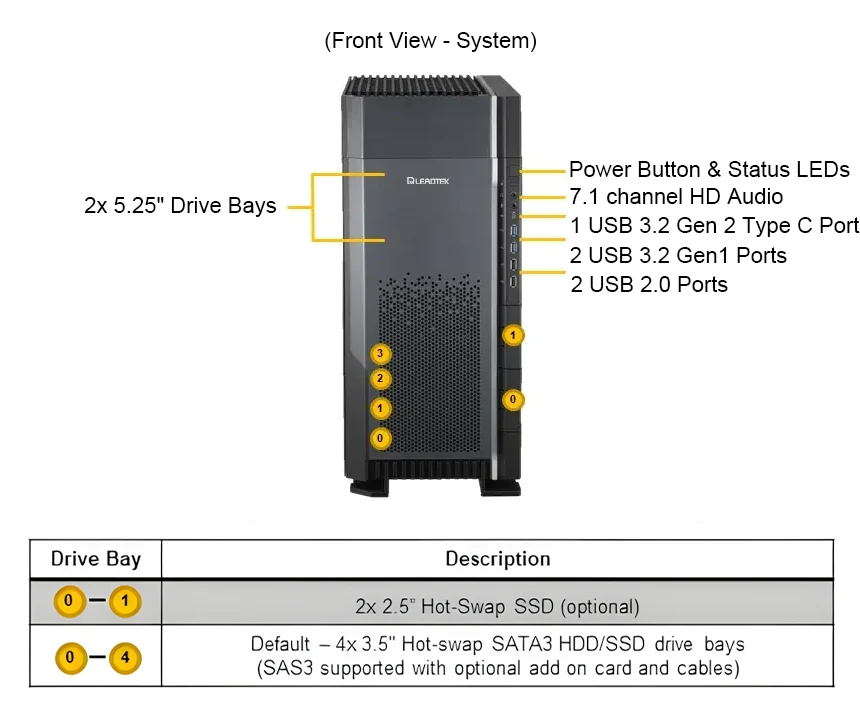

Drive Bays / Storage

4x 3.5" SATA drive bays
2x 5.25" drive bays
2x front access 2.5” drive bays
2 M.2 (M-key, 2280/22110)

Expansion Slots

PCI-Express	5 PCI-E 5.0 x16 FHHL slots 1 PCI-E 5.0 x8 FHHL slots
M.2	M.2 Interface: PCI-E 5.0 x4 Form Factor: 2280, 22110 Key: M-Key

System Cooling

Fans	1x 12cm rear exhaust fan 2x 12cm front cooling fan

Power Supply

2000W 80PLUS Platinum Power Supply
AC Input	100-240Vac / 50-60Hz

OS Compatibility

Windows 10/11
Windows Server 2019/2022
Ubuntu 20.04/22.04

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS1050
OS	Language	Version	Description
Audio driver
10 11	English	9500.1 ( 2023/7/3 )	Realtek Audio Total size: [ 40645 KB ]
10 11	English	1.41.291.0 ( 2023/7/3 )	Realtek Audio Console UI Total size: [ 11230 KB ]
VGA driver
10 11	English	1.13/ 1.14 ( 2023/7/3 )	ASPEED Graphic 2500/2600 Total size: [ 54932 KB ]
LAN driver
10 11	English	222.0.2.1 ( 2023/7/3 )	Broadcom 10G Total size: [ 5869 KB ]
INF
10 11	English	10.1.19485.8386 ( 2023/7/3 )	Intel INF Total size: [ 3899 KB ]
MS.Net_Framework
10 11	English	4.8 ( 2023/7/3 )	Microsoft .Net Framework 4.8 Total size: [ 114531 KB ]
10 11	English	3.5 ( 2023/7/3 )	Microsoft .Net Framework 3.5 Redistributable for Windows Total size: [ 201720 KB ]
10 11	English	6.0.302 ( 2023/7/3 )	Microsoft .Net SDK Total size: [ 200655 KB ]
Intel VROC
10 11	English	8.0.0.4035 ( 2023/7/3 )	Intel VROC Total size: [ 29194 KB ]
Intel QAT
10 11	English	2.0.3-0004 ( 2023/7/3 )	Intel QAT Total size: [ 38284 KB ]

WinFast WS1050
Language	Version	Description
User's Manual
English	1.0 ( 2023/7/3 )	User's Manual Total size: [ 18268 KB ]

Revised web page of product spec and information won't be noticed, product colorbox printing shows the actual information of the product.
Above product spec is for reference only, actual spec rely on the real product and Leadtek keeps the right to alter. Each sales region will impacts the product difference, please contact your supplier for making sure the actual product information.
The adapter, cable and software listed on the web page are for reference only and Leadtek keeps the right to alter, revised information won't be noticed.
Above brand name and product name are trademark of each corresponding company.
