WinFast WS2050

  • Ultra High-end Workstation
  • •High Performance Computing
  • Ideal for AI/Deep Learning/3D rendering/Scientific Virtualization

Key Features


  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable Processors
  • 16 DIMMs, up to 4TB 3DS ECC DDR5-5600MT/s RDIMM
  • 7x PCIe 5.0 x16 FHFL slot(s)
  • 2x M.2 Interface: PCI-E 5.0 x4
    M.2 Form Factor: 2280, 22110
  • Support Up to 4 NVIDIA GPU cards
  • Dual LAN with 10GbE
  • IPMI: ASPEED AST2600

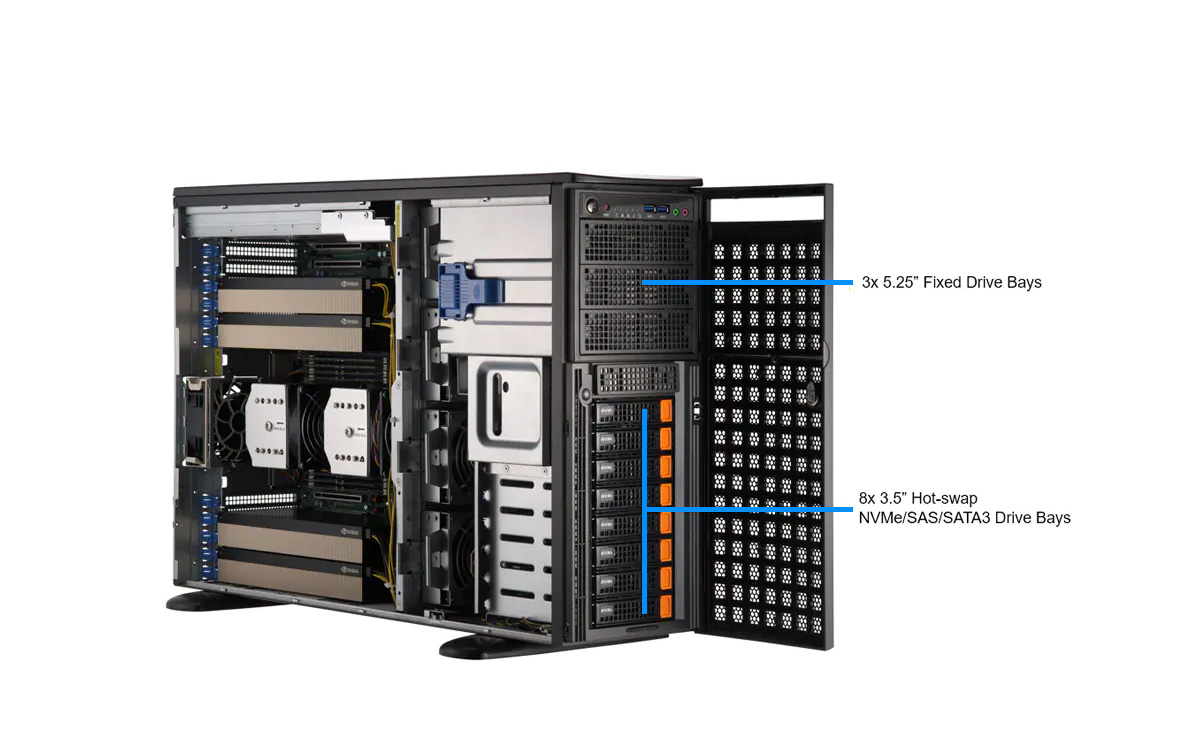

  • 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
  • 2x 2000W Redundant Power Supplies,  Titanium Level (96%)

Multiple GPU support

WinFast WS2050 features a powerful GPU architecture that supports up to four double-width GPUs in a 4U workstation, including NVIDIA® H100, A100, RTX 6000 Ada, etc., to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

Hot-Swap Storage Easy to Maintain

SATA vs NVMe

Up to 5.3X performance than SATA

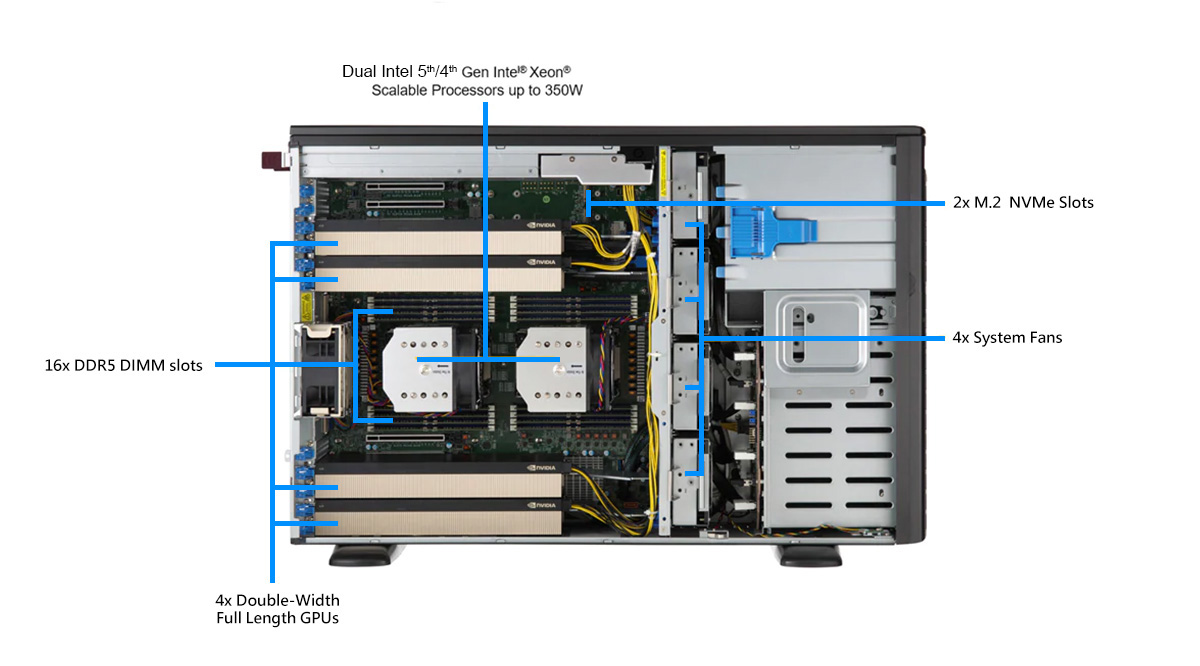

Support 4 Double-Width GPU
with Flexible and Multiple Storages

4U Rackmountable / Tower Workstation

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

Processor

CPU
  • Dual Socket P+ (LG-4677)
  • 5th/4th Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 350W
  • Up to 64 Cores

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR5 RDIMM
Memory Type 5600MT/s ECC DDR5 RDIMM

On-Board Devices

Chipset Intel® C741
SATA SATA3 (6Gbps); RAID 0/1/5/10 support
Network 2x 10GbE BaseT with Intel® X550-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

SATA 10 SATA3 (6Gbps) ports
NVMe 2 M.2 Socket support NVMe
LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 5 USB 3.0 ports (3 rear, 2 front, Type A)
1 USB 3.0 ports (Type C)
Video 1x VGA port

Form Factor

4U Rackmountable / Tower
Optional Rackmount Kit

Dimensions

Height 18.2" (462mm)
Width 7.0" (178mm)
Depth 26.5" (673mm)
Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)

Drive Bays / Storage

  • 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
  • 2 M.2 NVMe/SATA Socket

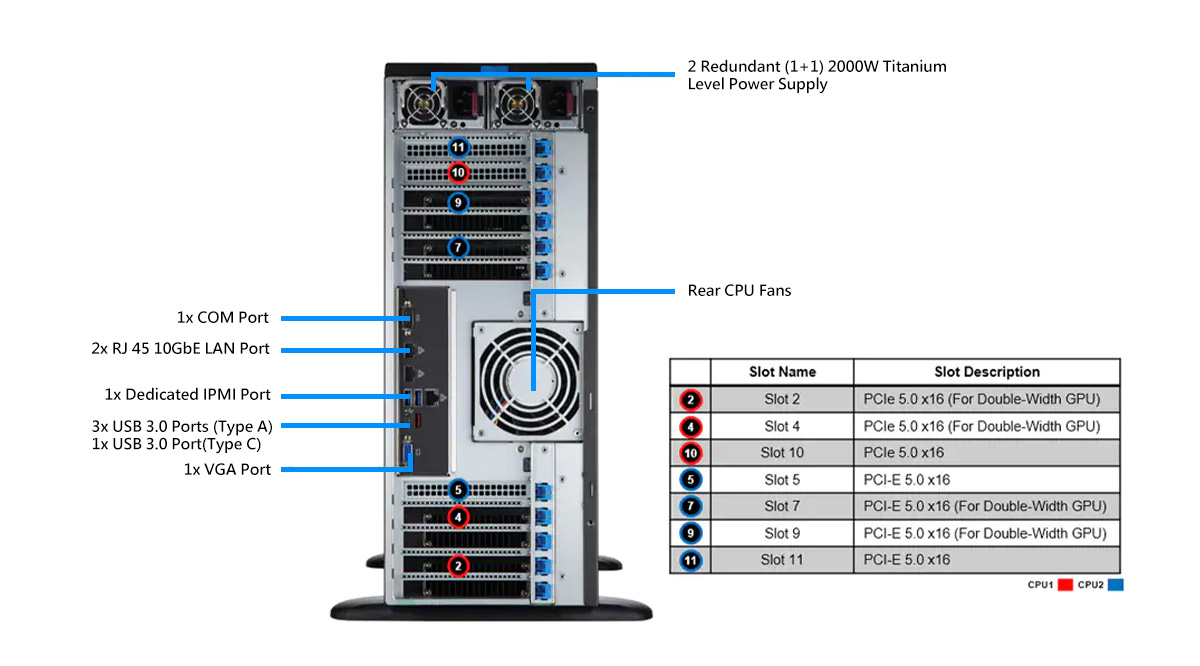

Expansion Slots

PCI-Express
  • 7 PCIe 5.0 x16 FHFL slot(s)
  • 2 M.2 Interface: PCI-E 5.0 x4
  • Form Factor: 2280, 22110
M.2
  • 2 M.2 Interface: PCI-E 4.0 x4 or SATA
  • Form Factor: 2280, 22110

System Cooling

Fans
  • 4 heavy duty fans with optimal fan speed control
  • 1 Rear CPU fan
  • 2 Optional Rear fans (required for Passive GPUs)

Power Supply

Power Supply 2x 2000W Redundant Power Supplies
AC Input Frequency 100-127Vac / 50-60Hz
200-240Vac / 50-60Hz
DC Input 2000W: 230-240Vdc
+12V Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A / Min: 0A

OS Compatibility

  • Windows 10/11
  • Windows Server 2019/2022
  • RHEL 9.0
  • Ubuntu 20.04 LTS

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS2050
OS Language Version Description
VGA driver

10
11		Multilanguage1.13/ 1.14
( 2023/3/24 )		ASPEED Graphic AST2400/2500/2600
Total size: [ 54932 KB ] 		download
LAN driver

10
11		Multilanguage28.0
( 2023/3/24 )		Intel LAN
Total size: [ 796125 KB ] 		download
Intel ME

10 64bit		Multilanguage2.0.3-0004
( 2023/3/24 )		Intel QAT
Total size: [ 38284 KB ] 		download
INF

10
11		English10.1.19485.8386
( 2023/7/3 )		Intel INF
Total size: [ 3899 KB ] 		download
MS.Net_Framework

10
11		Multilanguage3.5
( 2023/3/24 )		Microsoft .Net Framework 3.5 Redistributable for Windows
Total size: [ 201720 KB ] 		download

10
11		Multilanguage6.0.302
( 2023/3/24 )		Microsoft .Net SDK
Total size: [ 200655 KB ] 		download

10
11		Multilanguage4.8
( 2023/3/24 )		Microsoft .Net Framework 4.8
Total size: [ 114531 KB ] 		download
Intel VROC

10
11		Multilanguage8.0.0.4035
( 2023/7/3 )		Intel VROC
Total size: [ 29194 KB ] 		download

WinFast WS2050
Language Version Description
User's Manual
English1.0
( 2023/7/3 )		User's Manual
Total size: [ 3431 KB ] 		download
  • Revised web page of product spec and information won't be noticed, product colorbox printing shows the actual information of the product.
  • Above product spec is for reference only, actual spec rely on the real product and Leadtek keeps the right to alter. Each sales region will impacts the product difference, please contact your supplier for making sure the actual product information.
  • The adapter, cable and software listed on the web page are for reference only and Leadtek keeps the right to alter, revised information won't be noticed.
  • Above brand name and product name are trademark of each corresponding company.
