WinFast WS730

    •
  • Entry-Level Workstation
  • •Designed for CAD and 3D Modeling Applications
  • •NVIDIA® Quadro® Professional GPU Support

Optimized for

  • 2D/3D and CAD Applications
  • Digital Content Creation
  • 3D Animations

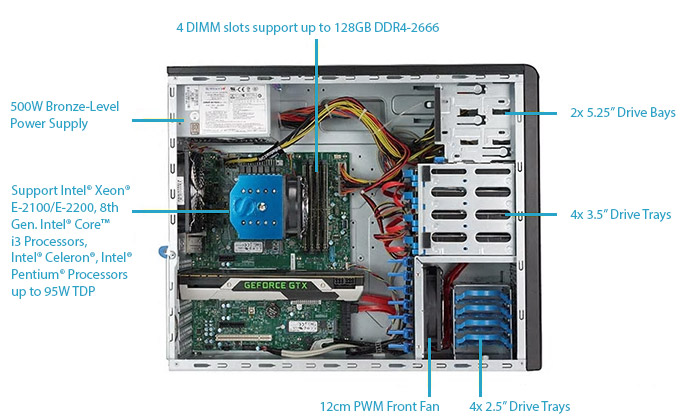

Key Features


  • Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors,Intel® Celeron®, Intel® Pentium®
  • 4 DIMMs, Up to 128GB* ECC/non-ECC UDIMM, up to DDR4-2666MHz
  • 2 PCI-E 3.0 x16 running at NA/16 or 8/8
    1 PCI-E 3.0 x4 slot
    1 PCI-E 3.0 x1 slot
  • Support 1 NVIDIA double-width Quadro/GeForce card
  • 2 M.2 (M-key, 2260/2280/22110)
    1 U.2 for optional expanded storages
  • Single LAN with Intel® I210-AT
    Single LAN with Intel® PHY I219LM
  • 4 Fixed 3.5“ and 4 2.5" drive bays
    2 Standard 5.25" drive bays
    1 Fixed 3.5" device bay
  • 500W Bronze Certified High Efficient Power Supply

SATA vs M.2 NVMe

Support on-board M.2 storage devices for time-sensitive operations.Delivering up to 32 Gb/s data transfer rate through a PCIe connection, M.2 offers users considerably faster storage performance than current SATA devices.

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

Processor

CPU
  • Single Socket H4 (LGA 1151)
  • CPU TDP support up to 95W
  • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium®
  • Up to 6-Cores

System Memory

Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC/non-ECC UDIMM
  • Up to DDR4-2666MHz
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices

Chipset Intel® C246 chipset
SATA SATA3 (6Gbps) via Intel C246 controller, RAID 0, 1, 5, 10 support
Network Controllers
  • Single LAN with Intel® I210-AT
  • Single LAN with Intel® PHY I219LM

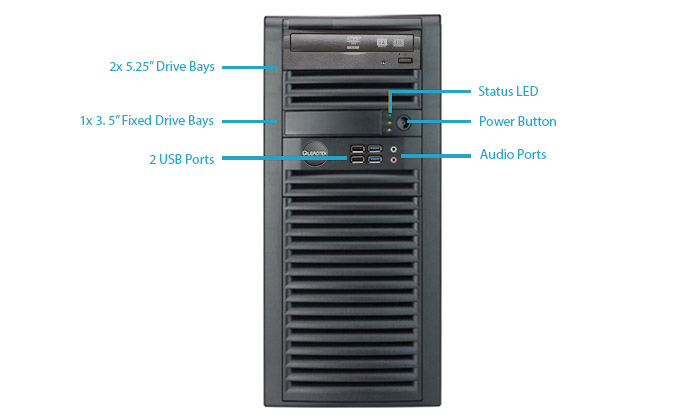

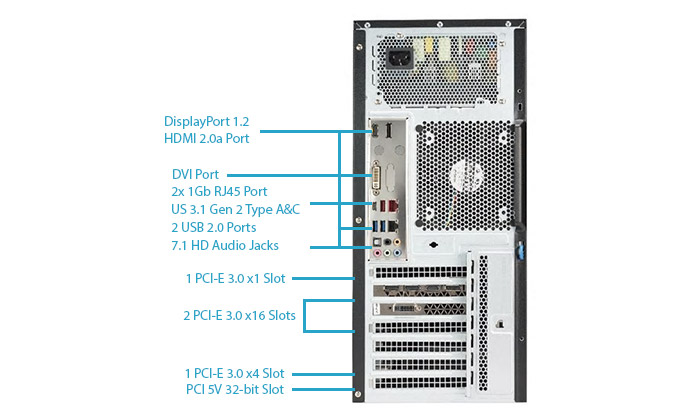

Input / Output

SATA 8 SATA3 (6Gbps) ports from Intel® C246
LAN 2 RJ45 1GBase-T ports
USB
  • 2 USB 3.1 Gen 2 Type A and Type C (rear)
  • 4 USB 3.1 Gen 1 (2 rear + 2 front)
  • 2 USB 2.0 (front)
Video
  • 1 HDMI (2.0a) port
  • 1 DVI-D port, 1 DisplayPort 1.2 port
Audio 7.1 HD Jacks

Form Factor

Mid-Tower

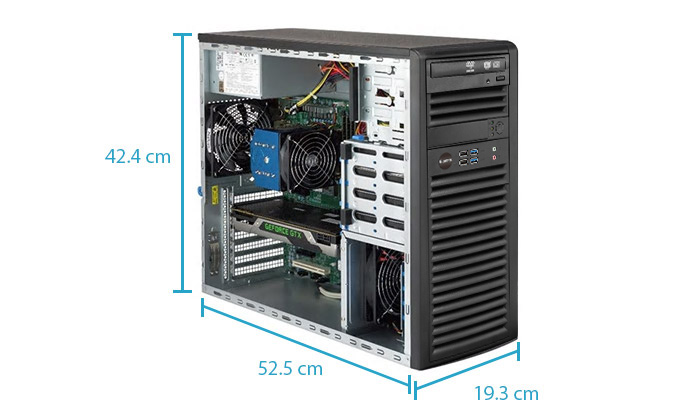

Dimensions and Weight

Height 16.7" (424mm)
Width 7.6" (193mm)
Depth 20.68" (525.3mm)
Weight Gross Weight: 35.5 lbs (16.1 kg)

Drive Bays / Storage

  • 4 Fixed 3.5" and 4 Fixed 2.5” drive bays
  • 2 M.2 (M-key, 2260/2280/22110)
  • 1 U.2 for optional expanded storages

Expansion Slots

PCI-Express
  • 2 PCI-E 3.0 x16 running at NA/16 or 8/8
  • 1 PCI-E 3.0 x4 slot
  • 1 PCI-E 3.0 x1 slot
  • 1 PCI 32bit 5V slot

System Cooling

Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm front cooling fan

Power Supply

500W High Efficient AC power supply w/ PFC, Bronze Certified
AC Voltage
  • 500W AC power supply w/ PFC
  • 100 - 240V, 50-60Hz, 7-3.5 Amp

OS Compatibility

  • Windows 10
  • RHEL 7.5
  • Ubuntu 18.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS730
OS Language Version Description
BIOS
Multilanguage1.2
( 2020/3/10 )		WS730 BIOS
Total size: [ 12515 KB ] 		download
Audio driver

10 64bit		MultilanguageNull
( 2020/3/10 )		Realtek ALC 1220 HD Audio
Total size: [ 272915 KB ] 		download
VGA driver

10 64bit		Multilanguagev25.20.100.6326
( 2020/3/10 )		Intel Graphic
Total size: [ 387951 KB ] 		download
LAN driver

10 64bit		Multilanguagev23.2
( 2020/3/10 )		Intel LAN Driver (All)
Total size: [ 429651 KB ] 		download
Chipset driver

10 64bit		Multilanguagev10.1.17570.8068
( 2020/3/10 )		Intel INF for C422
Total size: [ 5060 KB ] 		download
SATA Driver

10 64bit		Multilanguage 4.7.0.1099
( 2020/3/10 )		Intel Driver(SATA)
Total size: [ 4909 KB ] 		download
SATA Utility

10 64bit		Multilanguage 5.5.0.1360
( 2020/3/10 )		Intel Utility (SATA)
Total size: [ 24578 KB ] 		download
Intel ME

10 64bit		Multilanguage12.0.2.1088
( 2020/3/10 )		Intel ME
Total size: [ 107957 KB ] 		download
INF

10 64bit		Multilanguagev10.1.17570.8068
( 2020/3/10 )		Intel INF for C422
Total size: [ 5060 KB ] 		download
MS.Net_Framework

10 64bit		Multilanguage4.5.2
( 2020/3/10 )		Microsoft .Net Framework 4.5.2
Total size: [ 68248 KB ] 		download

10 64bit		Multilanguage 4.5.2
( 2020/3/10 )		 Microsoft .Net Framework
Total size: [ 68248 KB ] 		download

WinFast WS730
Language Version Description
User's Manual
English1.0
( 2020/3/10 )		User's Manual
Total size: [ 14578 KB ] 		download
Installing the RAID driver during Windows
English1.0
( 2020/3/10 )		Installing the RAID driver in Windows
Total size: [ 14 KB ] 		download
