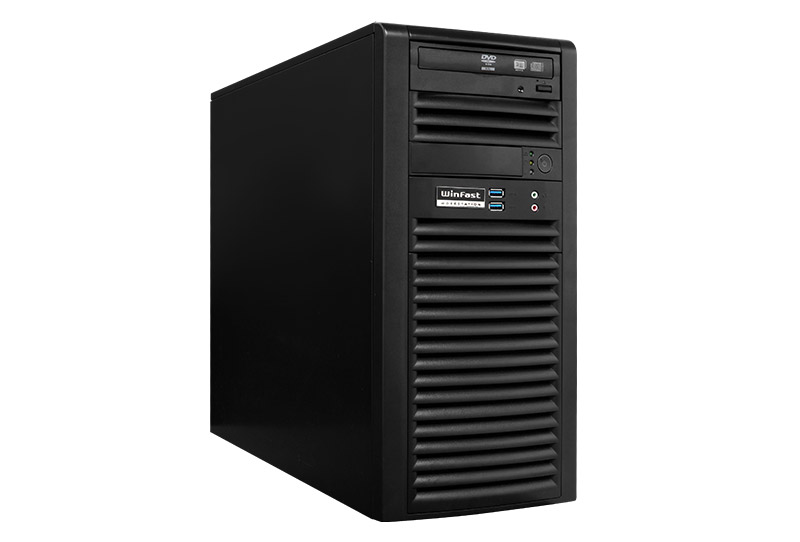

WinFast WS830

  • ••Middle-end Workstation
  • •NVIDIA Data Science certified Workstation
  • Ideal for AI/Deep Learning/3D rendering

Optimized for

  • AI/Deep Learning
  • 2D/3D and CAD Applications
  • 3D Simulation and Rendering
  • Digital Content Creation

Key Features

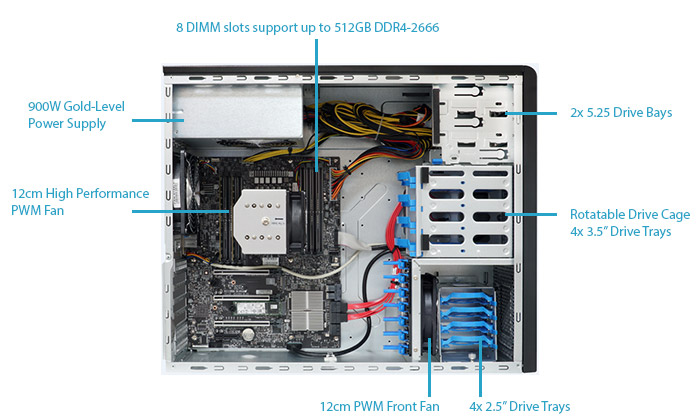

  • Single Socket R4 (LGA 2066) supports Intel® Xeon® W-2200/W-2100 processor
  • 8 DIMMs, Up to 512GB reg. ECC LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16 (8/16/16, 48 lanes)
    1 PCI-E 3.0 x4,M.2 Interface: 2 PCI-E 3.0 x4
    M.2 Form Factor: 22110/2280
    M.2 Key:M-Key (RAID 0,1 support)
    U.2 Interface: 2 PCI-E 3.0 x4
  • Support Up to 2 NVIDIA Quadro/GeForce cards
  • Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Aquantia 5G LAN chip AQC108

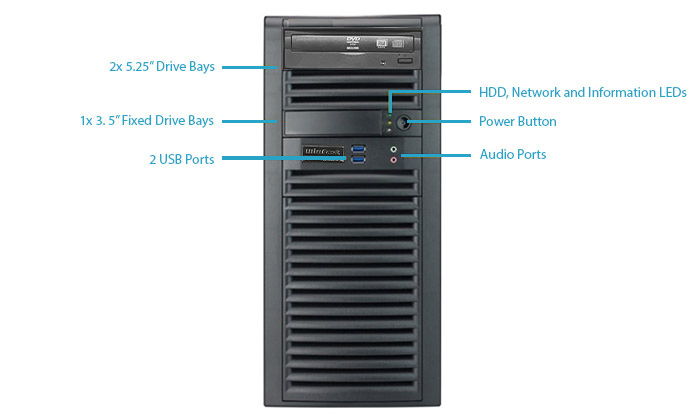

  • 4 Fixed 3.5“ and 4 2.5" drive bays
    2 Standard 5.25" drive bays
    1 Fixed 3.5" device bay
  • 900W Gold Level Certified High Efficient Power Supply

SATA vs M.2 NVMe

Support on-board M.2 storage devices for time-sensitive operations.Delivering up to 32 Gb/s data transfer rate through a PCIe connection, M.2 offers users considerably faster storage performance than current SATA devices.

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor

CPU
  • Single Socket R4 (LGA 2066) supports
  • Intel® Xeon® W-2200 processor
  • Intel® Xeon® W-2100 processor

System Memory

Memory Capacity
  • 8 DIMM slots
  • Up to 512GB reg. ECC LRDIMM,up to DDR4-2666MHz
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices

Chipset Intel® C422 chipset
SATA SATA3 (6Gbps) via Intel C422 controller, RAID 0, 1, 5, 10 support
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Aquantia 5G LAN chip AQC108

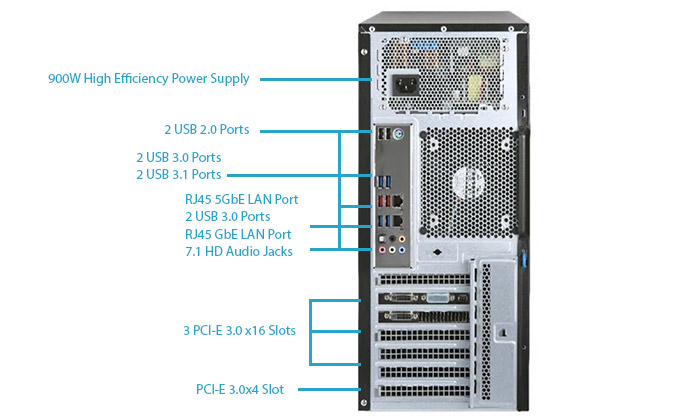

Input / Output

SATA 6 SATA3 (6Gbps) ports from Intel® C422
LAN 2 RJ45 Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear + 2 headers)
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 2 USB 3.1 (2 Type A)
Audio 7.1 HD Jacks

Form Factor

Mid-Tower

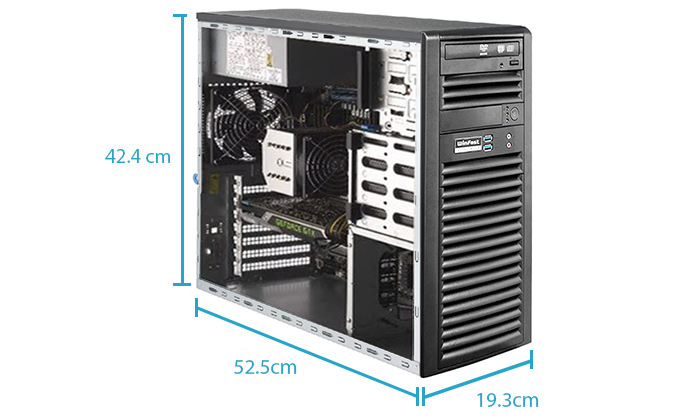

Dimensions and Weight

Height 16.7" (424mm)
Width 7.6" (193mm)
Depth 20.68" (525.3mm)
Weight Gross Weight: 35.5 lbs (16.1 kg)

Drive Bays / Storage

  • 4 Fixed 3.5" and 4 Fixed 2.5” drive bays
  • 2 M.2 (M-key, 2260/2280/22110)
  • 1 U.2 for optional expanded storages

Expansion Slots

PCI-Express
  • 3 PCI-E 3.0 x16 slots (8/16/16, 48 lanes)
  • 1 PCI-E 3.0 x4 slot

System Cooling

Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm front cooling fan

Power Supply

900W High Efficiency AC multi output power supply, Gold Level
AC Voltage
  • 900W AC multi output power supply
  • 100-240 V, 50-60 Hz, 10-6 Amp

OS Compatibility

  • Windows 10
  • RHEL 7.4
  • Ubuntu 18.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS830
OS Language Version Description
BIOS
MultilanguageNull
( 2020/3/11 )		BIOS 2.0
Total size: [ 10554 KB ] 		download
LAN driver

10 64bit		MultilanguageNull
( 2020/3/11 )		Aquantia 5G LAN chip AQC108
Total size: [ 16346 KB ] 		download

10 64bit		Multilanguagev23.2
( 2020/3/10 )		Intel (i217LM / i210AT) LAN Driver
Total size: [ 429651 KB ] 		download
SATA Driver

10 64bit		Multilanguage5.5.0.1360
( 2020/3/10 )		Intel SATA Driver
Total size: [ 4023 KB ] 		download
SATA Utility

10 64bit		Multilanguage5.5.0.1360
( 2020/3/10 )		Intel Utility (SATA)
Total size: [ 103843 KB ] 		download
Intel ME

10 64bit		Multilanguage11.11.50.1436
( 2020/3/10 )		Intel ME
Total size: [ 80052 KB ] 		download
INF

10 64bit		Multilanguagev10.1.17667.8082
( 2020/3/10 )		Intel INF for C422
Total size: [ 4776 KB ] 		download
MS.Net_Framework

10 64bit		Multilanguage3.5
( 2020/3/10 )		Microsoft .Net Framework 3.5
Total size: [ 201720 KB ] 		download

10 64bit		Multilanguage4.5.2
( 2020/3/10 )		Microsoft .Net Framework 4.5.2
Total size: [ 68248 KB ] 		download

WinFast WS830
Language Version Description
User's Manual
English1.0
( 2020/3/10 )		WS830 User's Manual
Total size: [ 14807 KB ] 		download
Installing the RAID driver during Windows
English1.0
( 2020/3/10 )		RAID driver
Total size: [ 14 KB ] 		download
