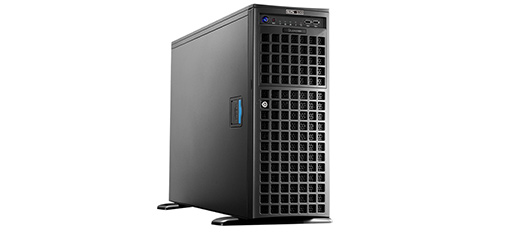

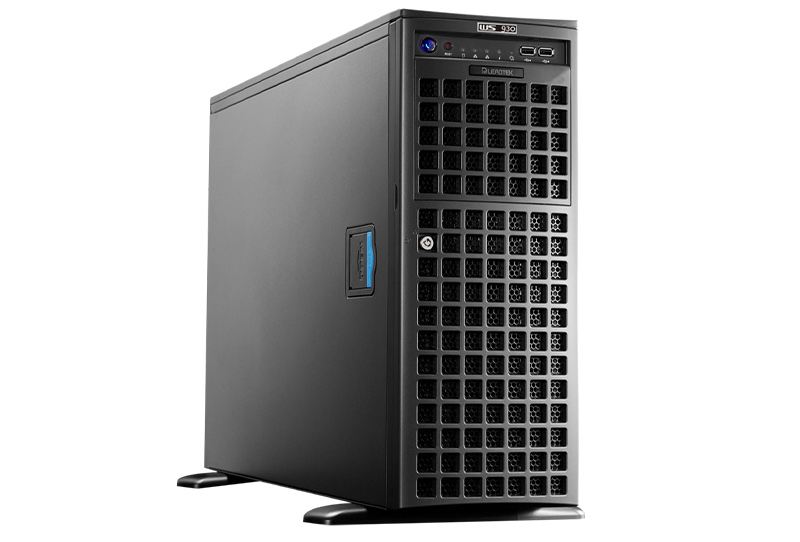

WinFast WS930

  • High-end Workstation
  • High Performance Computing
  • Ideal for 3D Simulation and Rendering, Digital Content Creation, AI/Deep Learning

Optimized for

  • AI/Deep Learning
  • 2D/3D and CAD Applications
  • 3D Simulation and Rendering
  • Digital Content Creation

Key Features


  • Single Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) Intel® Xeon® W-32xx processor
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz;in 12 DIMM slots.
  • 4 PCI-E 3.0 x16
    3 PCI-E 3.0 x8 (in x16 slot)
    M.2 Interface: 4 PCI-E 3.0 x4
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
  • Support up to 4 Double-width GPUs
  • 1x 10GBase-T and 1x 1GbE LAN ports
  • 8 Hot-swap 3.5" SAS/SATA bay with SGPIO
  • 2200W Redundant (1+1) Power
    Supplies Titanium Level Certified

SATA vs M.2 NVMe

Support on-board M.2 storage devices for time-sensitive operations.Delivering up to 32 Gb/s data transfer rate through a PCIe connection, M.2 offers users considerably faster storage performance than current SATA devices.

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Quadro RTX Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Quadro RTX Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Quadro RTX Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI/Deep Learning


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Customer Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor

CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Intel® Xeon® W-32xx Processors
  • Support CPU TDP up to 205W

System Memory

Memory Capacity
  • 12 DIMM slots
  • Intel® Xeon® Scalable Processors: Support up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz
  • Intel® Xeon® W-3200 Processors: Support up to 2TB 3DS ECC RDIMM/LRDIMM; up to 1TB 3DS RDIMM/LRDIMM.
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Audio 7.1 channel HD Audio by Realtek ALC888S

Input / Output

SATA 8 SATA3 (6Gbps) ports
NVMe 4 NVMe support with M.2 Socket
LAN
  • 1 RJ45 Gigabit Ethernet LAN port
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.2 Gen1 ports (4 rear, 2 headers)
  • 4 USB 3.2 Gen2 ports (1 rear Type A + 1 Rear Type C)
  • 2 USB 2.0 ports (2 headers, Type A)
Video 1 VGA port
Audio 7.1 HD Audio with optical S/PDIF
Serial Port 1 COM port
DOM 2 SuperDOM (Disk on Module) ports

Form Factor

  • 4U Rackmountable / Tower
  • Optional Rackmount Kit

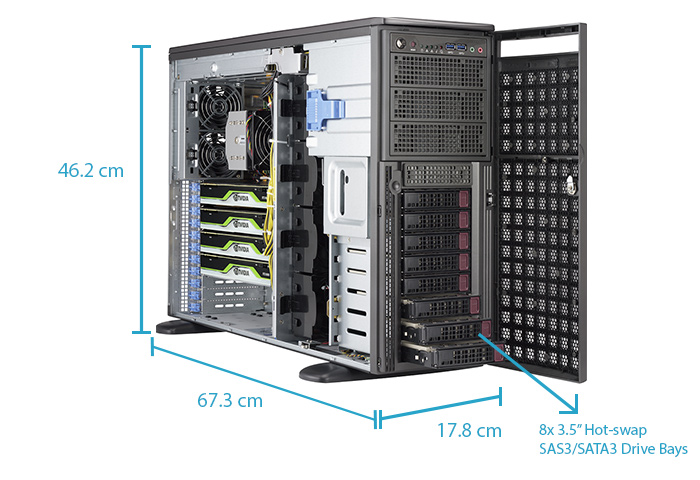

Dimensions and Weight

Height 18.1" (460mm)
Width 7.0" (178mm)
Depth 26.5" (673mm)
Weight Gross Weight: 72 lbs (32.66 kg)

Drive Bays / Storage

  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
  • 3x 5.25" drive bays
  • 4 M.2 (M-key, 2260/2280/22110)

Expansion Slots

PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 3 PCI-E 3.0 x8 (in x16 slot)
  • PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key

System Cooling

Fans
  • 4x 92mm hot-swap fan(s)
  • 2x 80mm rear hot-swap exhaust PWM fan(s)

Power Supply

2200W Redundant Power Supplies with PMBus, Titanium Level Certified
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency 50-60Hz
Dimension (W x H x L) 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB Max: 1A / Min: 0A
Output Type Backplanes (gold finger)

OS Compatibility

  • Windows Server 2016
  • Windows Server 2019
  • RHEL 8.0-8.x
  • Ubuntu 18.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS930
OS Language Version Description
BIOS
3.3
( 2020/7/24 )		BIOS
Total size: [ 11033 KB ] 		download
Audio driver

10 64bit		Multilanguage 8496
( 2020/7/24 )		 Realtek Audio Driver
Total size: [ 288125 KB ] 		download
VGA driver

10 64bit		MultilanguageNull
( 2020/7/24 )		 Aspeed AST2400/AST2500 Graphic Driver
Total size: [ 55594 KB ] 		download
LAN driver

10 64bit		MultilanguageNull
( 2020/7/24 )		Aquantia 10G LAN chip AQC107
Total size: [ 16346 KB ] 		download

10 64bit		Multilanguage25.0
( 2020/7/24 )		Intel LAN Driver (All)
Total size: [ 540717 KB ] 		download
Chipset driver

10 64bit		Multilanguagev10.1.2.86
( 2020/7/24 )		Intel INF
Total size: [ 3236 KB ] 		download
USB driver

10 64bit		Multilanguage4.0.0.36
( 2020/7/24 )		USB 3.0
Total size: [ 5405 KB ] 		download
SATA Driver

10 64bit		Multilanguage 6.1.0.1247
( 2020/7/24 )		Intel PCH Driver(SATA)
Total size: [ 4123 KB ] 		download
SATA Utility

10 64bit		Multilanguage 6.1.0.1247
( 2020/7/24 )		 Intel Utility (SATA)
Total size: [ 45662 KB ] 		download
MS.Net_Framework

10 64bit		Multilanguage3.5
( 2020/7/24 )		MS.Net_Framework
Total size: [ 201720 KB ] 		download

10 64bit		Multilanguage4.5.2
( 2020/7/24 )		MS.Net_Framework_4.5.2
Total size: [ 68248 KB ] 		download

WinFast WS930
Language Version Description
User's Manual
EnglishA
( 2020/7/24 )		User's Manual
Total size: [ 43366 KB ] 		download
Installing the RAID driver during Windows
EnglishA
( 2020/7/24 )		RAID_driver_installation_Guide
Total size: [ 83 KB ] 		download
