WinFast WS940

  • NVIDIA-Certified Workstation
  • High-end Workstation
  • High Performance Computing
  • Ideal for 3D Simulation and Rendering, Digital Content Creation, AI/Deep Learning

Key Features


  • Single 3rd Gen Intel® Xeon® Scalable processors, or
    Intel® Xeon® W-3300 processors
    Support CPU TDP 270W
  • Up to 4TB Registered ECC DDR4 3200MHz RDIMM/LRDIMM; in 16 DIMM slots.
  • 4x PCI-E 4.0 x16 slots,
    3x PCI-E 4.0 x8 slots (in x16 slots)
        M.2 Interface: 4x PCI-E 4.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  • Support up to 4 Double-width GPUs
  • 1x 10GBase-T and 1x 1GbE LAN(shared with IPMI) ports
  • 8x 3.5" hot-swap SATA drive bays, 3x 5.25" drive bays,
  • 2200W Redundant (1+1) Power Supplies Titanium Level certified

Multiple GPU support

WWinFast WS940 features a powerful GPU architecture that supports up to four double-width Ampere series GPUs, including NVIDIA® A100/RTX A6000/A5000, plus features NVIDIA NVLink® Bridge to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

PCIe® 4.0 doubles the data transfer speed over the previous generation

PCIe 4.0 delivers double the I/O performance over PCIe 3.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

Up to 5.3X performance than SATA

4U Rackmountable / Tower Workstation

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor

CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processor, or Intel® Xeon® W-3300 processor
  • Support CPU TDP 270W

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
Memory Type 3200 MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621A
SATA 8 SATA (6Gbps) port(s)
Network
  • 1x 10GbE BaseT with Marvell AQC113
  • 1x 1GbE BaseT with Intel® I210-AT
  • 1x 1GbE BaseT with Realtek RTL8211F PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

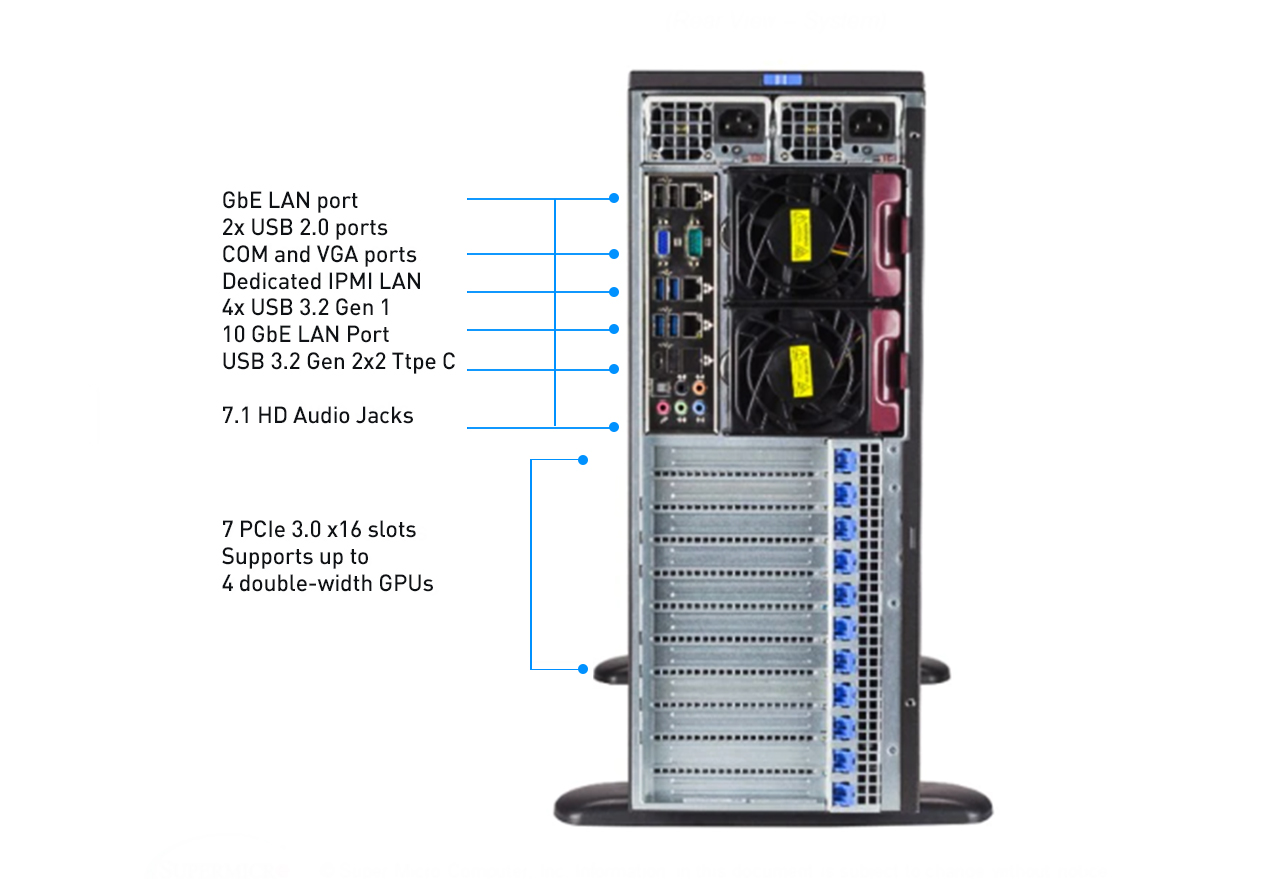

Input / Output

SATA 8x SATA3 (6Gbps) ports
NVMe 4x M.2 Socket support NVMe
LAN 1x RJ45 10GBase-T and 1x RJ45 1GBase-T ports
USB

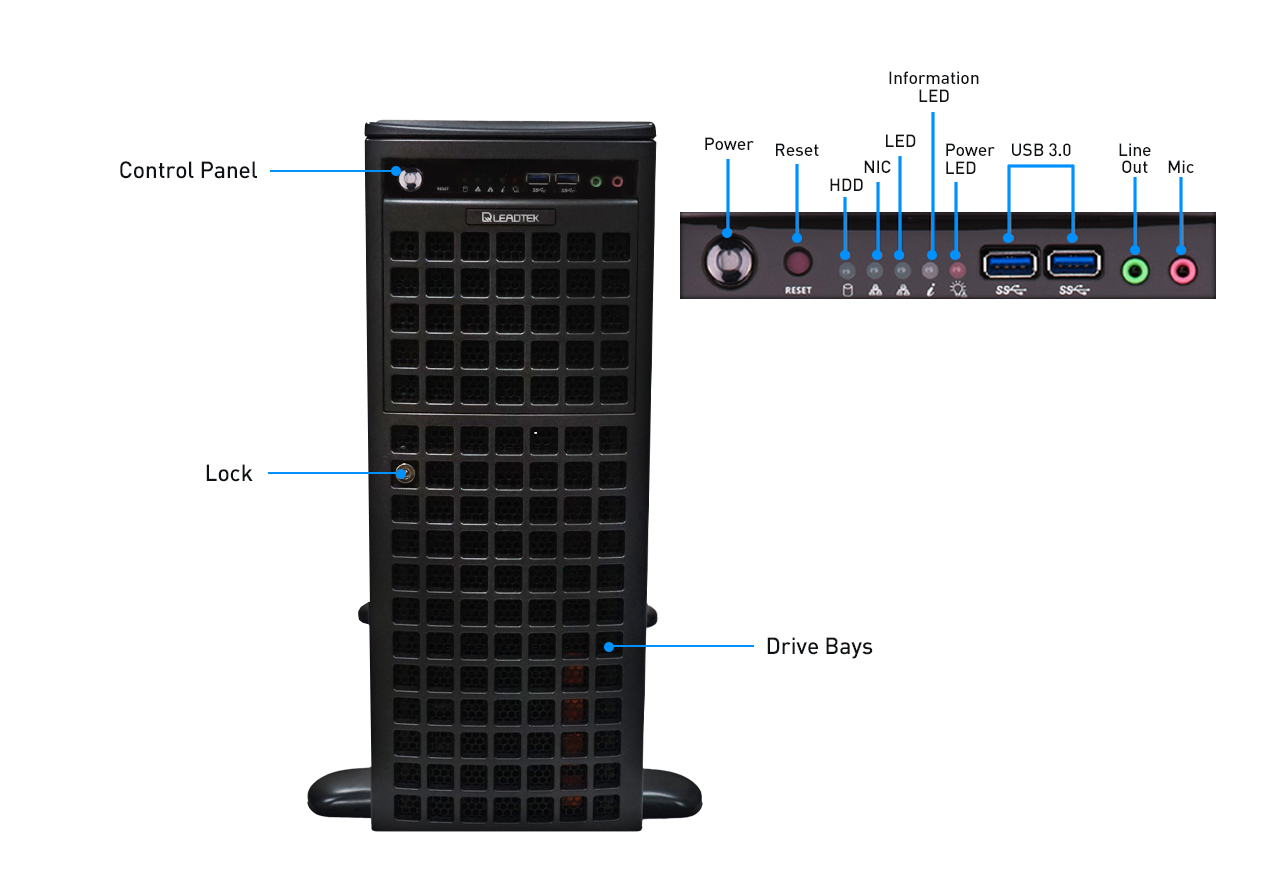

  • Front side:2x USB 3.0
  • Rear side:
    2x USB 2.0
    4x USB 3.2 Gen 1 Type A
    1x USB 3.2 Gen2x2 Type C

Form Factor

  • 4U Rackmountable / Tower
  • Optional Rackmount Kit

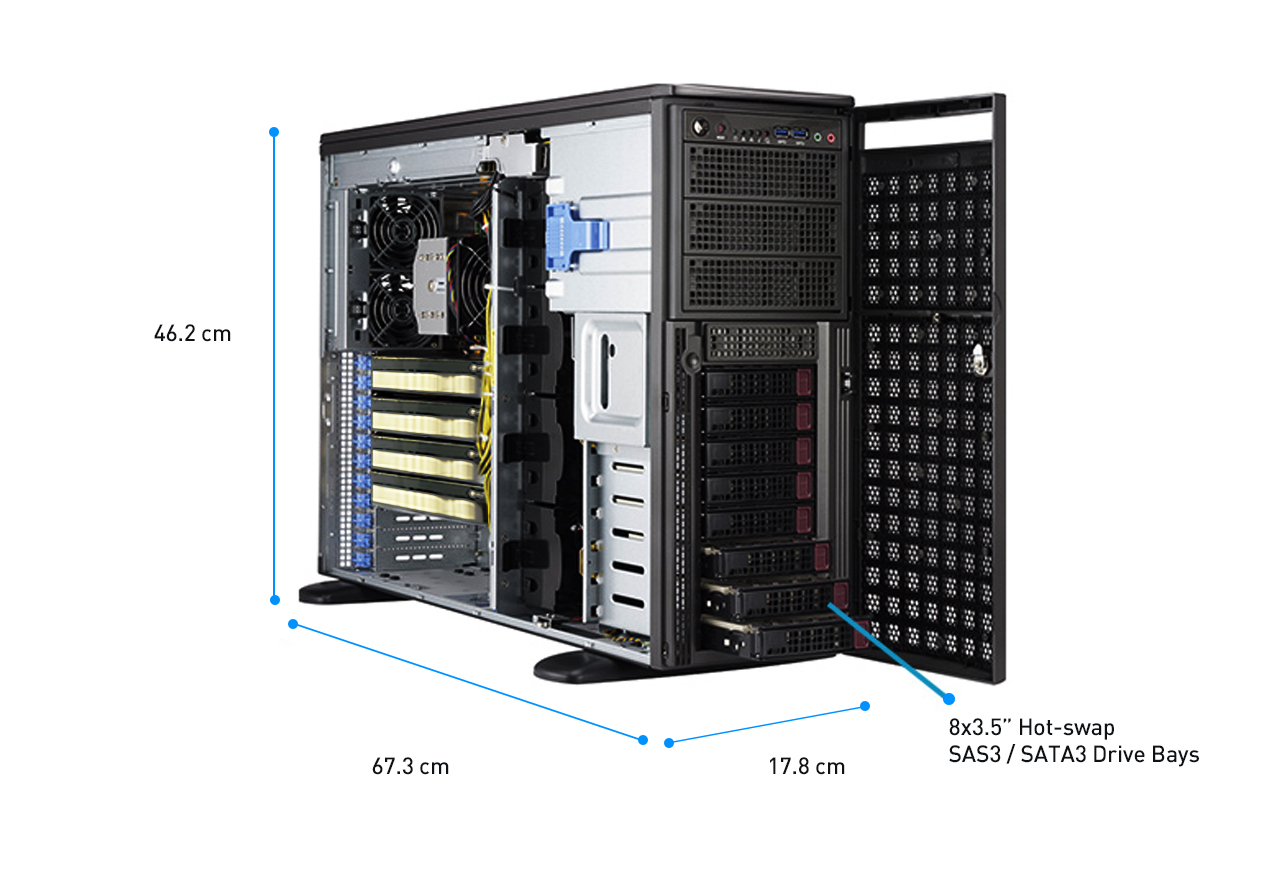

Dimensions

Height 18.1" (460mm)
Width 7" (178mm)
Depth 26.5" (673mm)

Drive Bays / Storage

  • 8x 3.5" hot-swap SATA drive bays
  • 3x 5.25" drive bays
  • 4x M.2 PCI-E 4.0 x4

Expansion Slots

PCI-Express
  • 4x PCI-E 4.0 x16 slots
  • 3x PCI-E 4.0 x8 slots (in x16 slots)
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

System Cooling

Fans
  • 2x 80mm Fan(s)
  • 4x 92mm Fan(s)

Power Supply

2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W: 100-127Vdc / 50-60Hz
  • 1800W: 200-220Vdc / 50-60Hz
  • 1980W: 220-230Vdc / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz
  • 2200W: 230-240Vdc / 50-60Hz

OS Compatibility

  • Windows Server 2016/2019
  • RHEL 7.3 or later
  • Ubuntu 20.04 LTS

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
