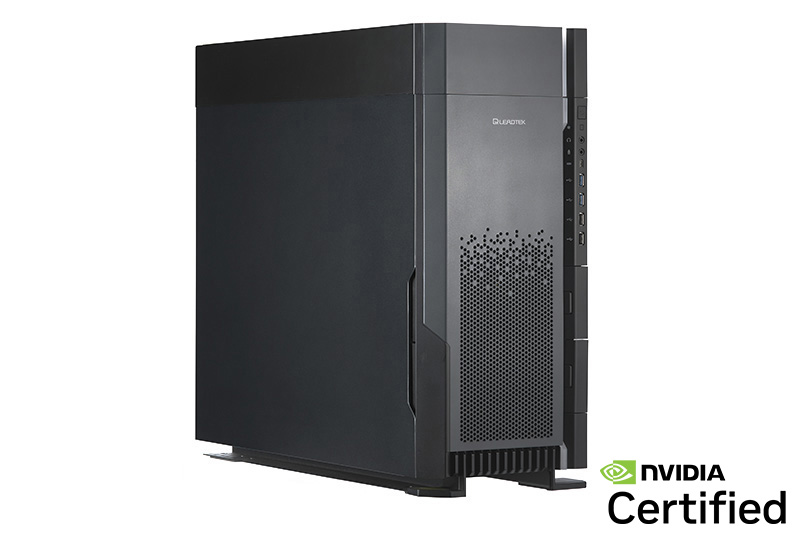

WinFast WS950

  • High-end Workstation
  • Designed for AI/Deep learning, Digital Content Creation, CAD and 3D Modeling
  • Support 4 NVIDIA Double-Width GPUs

Key Features

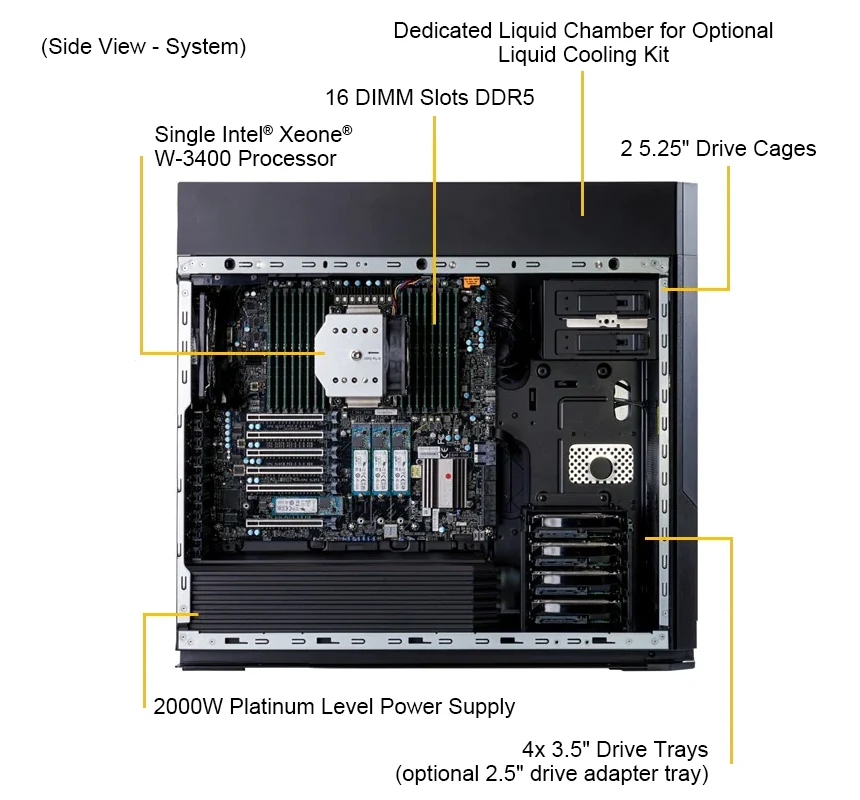

  • Single Socket E (LGA4677) Intel® Xeon® W-3400 processors, TDP up to 350W
  • 16 DIMM slots, up to 4TB: 16x 256 GB DRAM
    Memory Type: 4800MHz ECC DDR5 RDIMM
  • 6 PCIe 5.0 x16 slot(s)
    4 M.2 Interface: PCI-E 5.0 x4
  • Support up to 4 NVIDIA Double-width GPU cards
  • 1x 10GbE BaseT with Marvell AQC113
    1x 1GbE BaseT with Intel® I210-AT
  • 4 3.5" SATA drive bays
    2 Standard 5.25" drive bays
    2 front access 2.5” SATA drive bays
  • 2000W Platinum Level Power Supply

Intel® Xeon® W-3400 Processors Features at a Glance

Feature Benefit
New Processor Core Architecture Utilizes Embedded Multi-die Interconnect Bridge (EMIB) packaging technology to deliver a scalable architecture, increasing core-counts in a single socket for the next generation of workstations
Up to DDR5 ECC RDIMM 4800 MT/s Delivers up to 4TB of memory support for power savings, faster memory speeds, and higher memory bandwidth
PCIe 5.0 up to 112 Lanes Offers readiness for up to 224 GT/s for fast access to peripheral devices and networking with up to 112 PCI Express 5.0 lanes
Increased L2 Cache and L3 Shared Intel® Smart Cache Up to 105MB for increased performance and data management by reducing time spent swapping data between cache and memory
3rd Gen Intel® Deep Learning Boost Accelerates training and inferencing of AI models enabling developers’ end-to-end workflow Solution designed, validated, and tested by Intel data scientists
Support for select Intel vPro® Enterprise Technology Give IT professionals the tools for easy system integration & management of workstation platforms into existing enterprise networks
ECC Memory Support Error-Correcting Code memory detects and corrects errors and improves the integrity of essential data without workflow interruption
Intel® Turbo Boost Max Technology 3.0 Identifies the processor's fastest cores and directs critical workloads to them
Intel® Turbo Boost Technology 2.0 Intelligently boosts the processor to run faster than its rated frequency as power, heat, and workload allow

SATA vs NVMe

Up to 5.3X performance than SATA

5U Rackmountable / Tower Workstation

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Processor

CPU
  • Socket E (LGA4677)
  • Intel® Xeon® W-3400 processors
  • Support CPU TDP 350W
  • Up to 56 cores

System Memory

Memory Capacity
  • 16 DIMM slots
  • Memory Capacity: Up to 4TB
Memory Type 4800MHz ECC DDR5 RDIMM

On-Board Devices

Chipset Intel® W790
SATA 8 SATA3 (6 Gbps) ports, RAID 0/1/5/10 support
Network
  • 1 RJ45 10 Gigabit Ethernet LAN port
  • 1 RJ45 1 Gigabit Ethernet LAN port (Shared with IPMI)

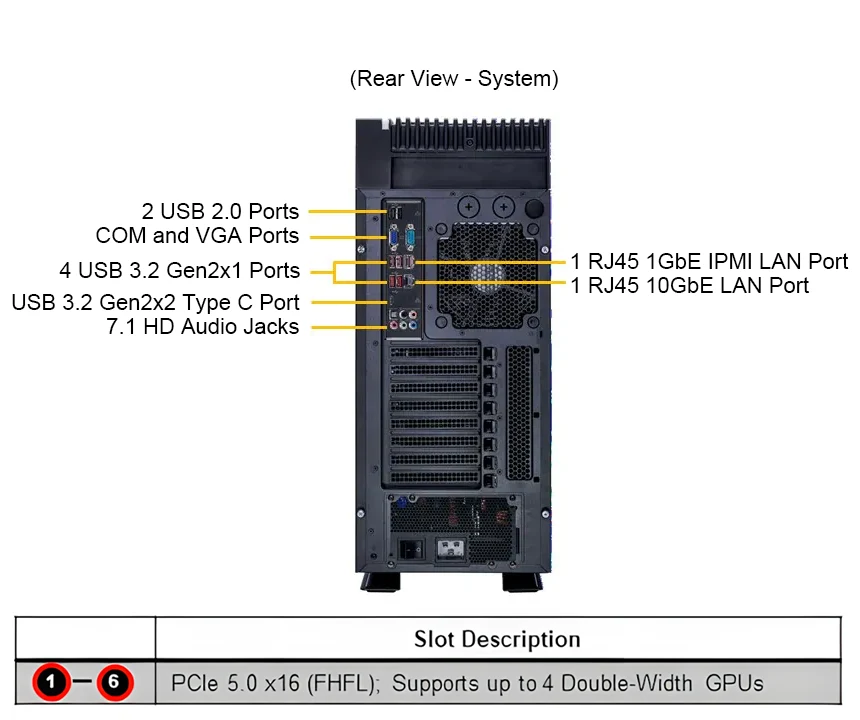

Input / Output

SATA 8 SATA3 (6Gbps) ports
NVMe 2 NVMe support with M.2 Socket
LAN 1 RJ45 10 GbE and 1 RJ45 1 GbE LAN ports

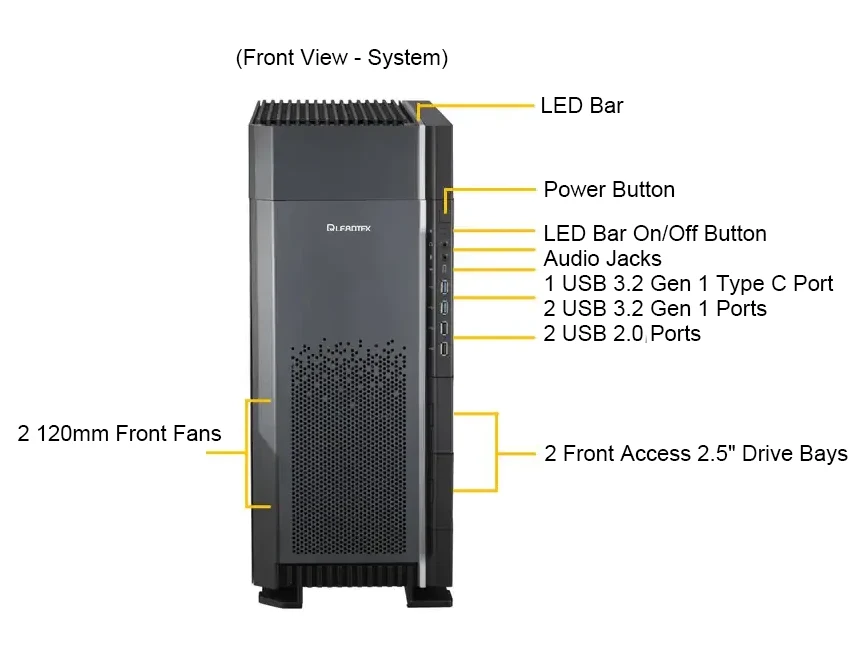

USB 4 USB 2.0 port(s) (2 front Type A; 2 rear)
2 USB 3.2 Gen 1 port(s) (2 front Type A)
5 USB 3.2 Gen 2 port(s) (1 front Type C; 4 rear)
1 USB 3.2 Gen 2x2 port(s) (1 rear)
Audio 7.1 HD Audio Jacks
Video 1x VGA port

Form Factor

Tower or 5U Rackmount

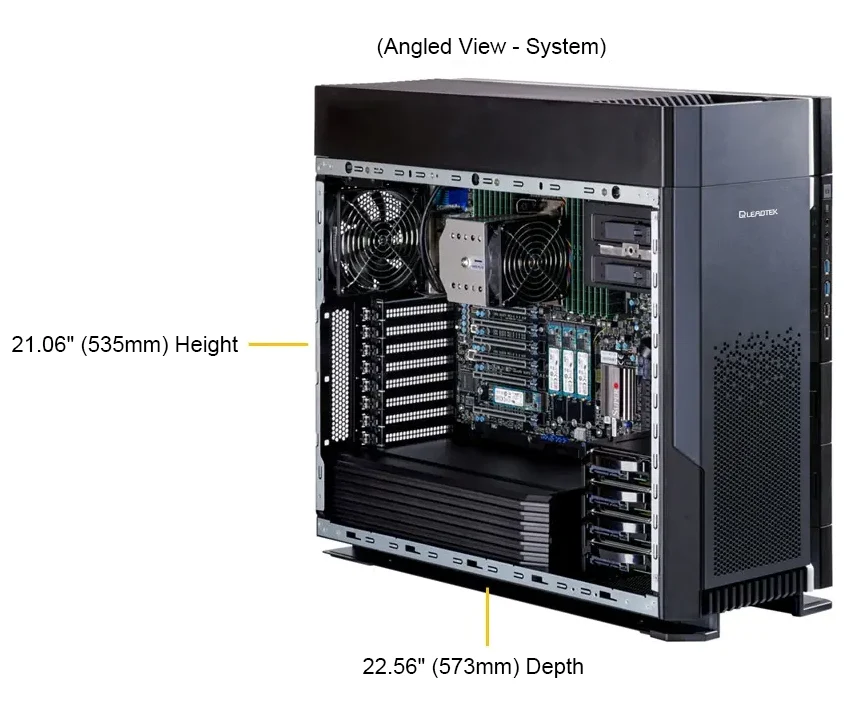

Dimensions

Height 21.1" (536mm)
Width 8.7" (221mm)
Depth 22.6" (574mm)
Weight Gross Weight: 59.5 lbs (27 kg)

Drive Bays / Storage

  • 4x 3.5" SATA drive bays
  • 2x 5.25" drive bays
  • 2x front access 2.5” drive bays
  • 4 M.2 (M-key, 2280/22110)

Expansion Slots

PCI-Express 6x PCI-E 4.0 x16 slots
M.2
  • 4 M.2 Interface: PCI-E 5.0 x4
  • Form Factor: 2280, 22110,M-Key

System Cooling

Fans
  • 1x 12cm rear exhaust fan
  • 2x 12cm front cooling fan

Power Supply

2000W 80PLUS Platinum Power Supply
AC Input 100-240Vac / 50-60Hz

OS Compatibility

  • Windows 10/11
  • Ubuntu 20.04/22.04

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast WS950
OS Language Version Description
Audio driver

10
11
English9464.1
( 2023/7/3 )
Realtek Audio
Total size: [ 39337 KB ]
download

10
11
English1.41.289.0
( 2023/7/3 )
Realtek Audio Console UI
Total size: [ 11609 KB ]
download
VGA driver

10
11
English1.13/ 1.14
( 2023/7/3 )
ASPEED Graphic AST2400/2500/2600
Total size: [ 54932 KB ]
download
LAN driver

10
11
English3.1.7
( 2023/7/3 )
Marvell LAN
Total size: [ 769 KB ]
download

10
11
English28.0
( 2023/7/3 )
Intel LAN
Total size: [ 796125 KB ]
download
Intel ME

10
11
English16.10.5.1520v3
( 2023/7/3 )
Intel ME
Total size: [ 748449 KB ]
download
INF

10
11
English10.1.19263.8344
( 2023/7/3 )
Intel INF
Total size: [ 4613 KB ]
download
MS.Net_Framework

10
11
English4.8
( 2023/7/3 )
Microsoft .Net Framework 4.8
Total size: [ 114531 KB ]
download

10
11
English3.5
( 2023/7/3 )
Microsoft .Net Framework 3.5 Redistributable for Windows
Total size: [ 201720 KB ]
download
Intel VROC

10
11
English8.0.0.3483
( 2023/7/3 )
Inte VROC
Total size: [ 25826 KB ]
download

WinFast WS950
Language Version Description
User's Manual
English1.0
( 2023/7/3 )
User's Manual
Total size: [ 33641 KB ]
download
