WinFast GS2050T 可支援多達 4 個無風扇雙寬度GPU, 如NVIDIA H100/L40S/A100/A40/A16 或 4個內建主動型風扇的NVIDIA RTX A6000/A4000, 發揮多 GPU的運算效能, 符合 AI 深度學習/3D繪圖/模擬等應用的需求。
PCIe 5.0 擁有較 PCIe 4.0 雙倍的 I/O 頻寬.您可以使用 128 條 I/O 通道將連接 HPC 集群的網絡頻寬增加一倍，並滿足資料傳輸的巨大需求。關於其他應用程序需求和虛擬化環境，您可以以更高的速度連接到 GPU 加速器、NVMe 磁碟等。

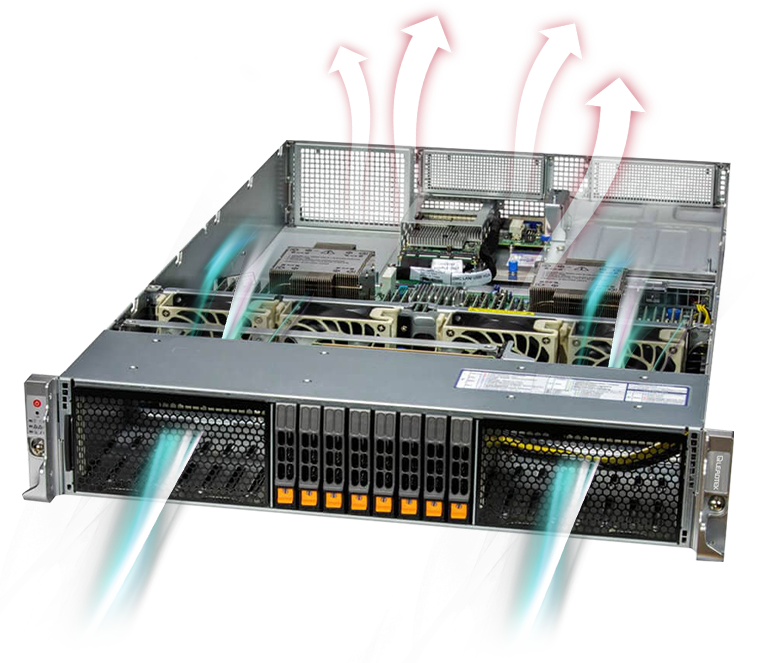

高效率散熱系統 - 搭配 4 個可控制轉速的高耐用與高效能的風扇，不但可節省電力，並讓伺服器可以 7 天 24 小時不間斷地穩定工作
系統內建 BMC(Baseboard Management Controller) 晶片，可隨時回報系統健康狀態
處理器 |
|
| 中央處理器 | |
| Dual Socket E (LGA-4677) | |
| 5th/4th Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 350W | |
| Up to 64 Cores | |
系統記憶體 |
|
| 記憶體容量 | |
| 32 DIMM slots | |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | |
| 記憶體種類 | 4800/5600MHz ECC DDR5 RDIMM |
內建裝置 |
|
| 晶片組 | Intel® C741 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| 網路 | Dual Port 10GbE from Intel X550 or Broadcom BCM57416 |
| IPMI 智慧平台管理介面 | |
| Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| 顯示晶片 | ASPEED AST2600 BMC |

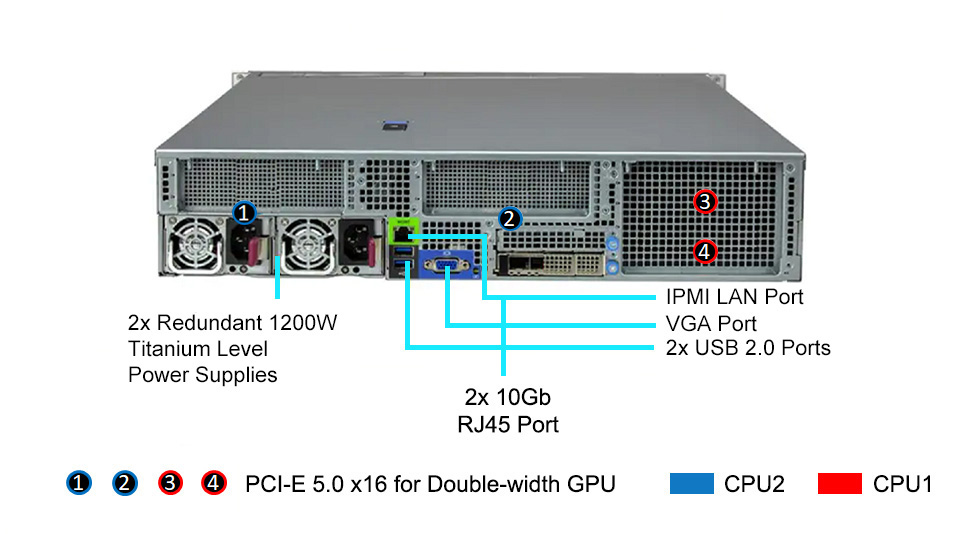

輸入 / 輸出 |
|
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | |
| 2 RJ45 10GBase-T LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 2.0 ports (rear) |
| Video | 1 VGA Connector |
外觀型態 |
|
| 2U Rackmountable with Rail kit | |
尺寸與重量 |
|
| 高度 | 3.5"(88.9mm) |
| 寬度 | 17.2"(437mm) |
| 深度 | 29.9"(760mm) |
| 重量 | |
| Net Weight: 40 lbs (18.2 kg) | |
| Gross Weight: 66 lbs (30 kg) | |
磁碟槽 / 存儲 |
|

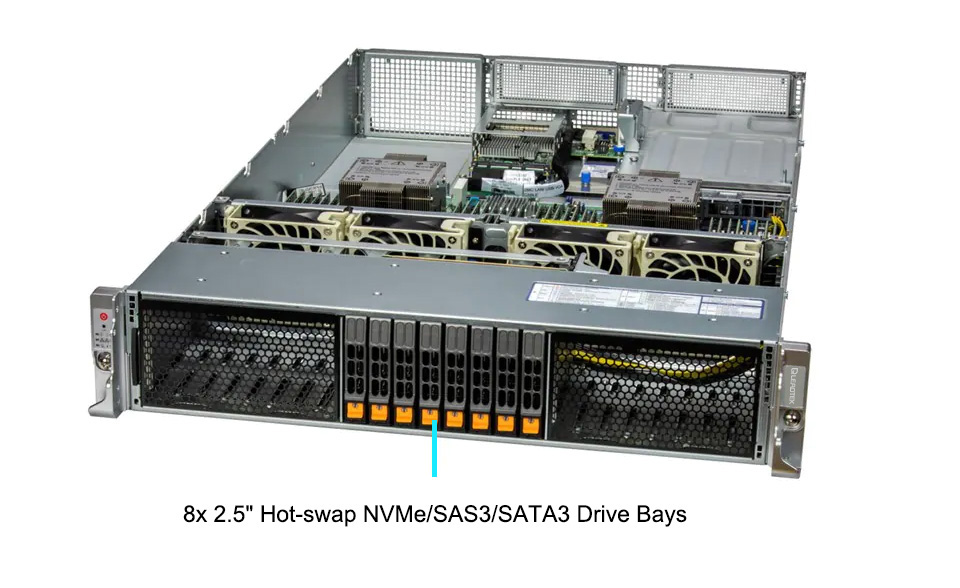

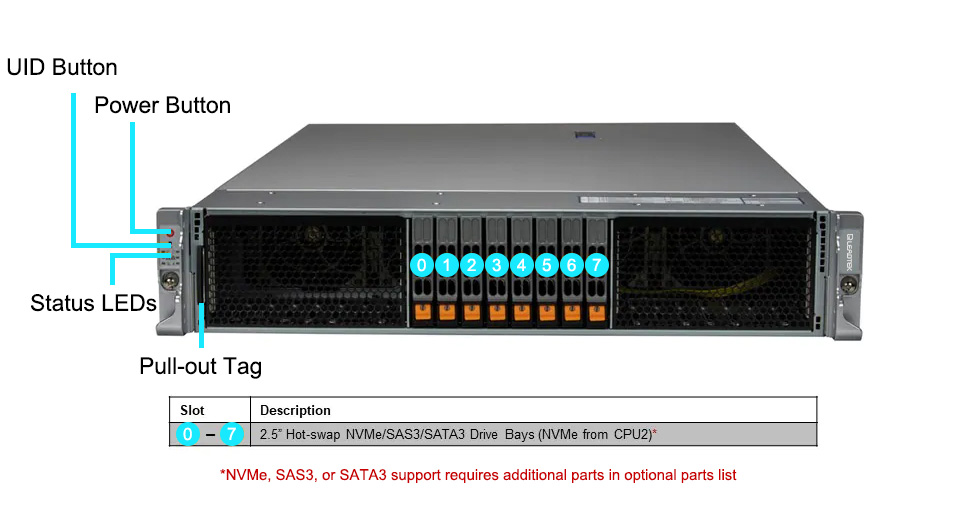

| 熱插拔 | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays |
擴充插槽 |
|
| PCI-Express | |
| 4 PCI-E 5.0 x16 slots | |
| 1 AIOM/OCP 3.0 NIC slot | |
系統散熱 |
|
| 風扇 | 4x 8cm Heavy duty fans with optimal fan speed control |
電源供應器 |
|
| 電源 | 2x 1200W 1U Redundant Power Supplies with PMBus (Optional 2600W Redundant power supply) |
| AC Input | 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| Output Type | Backplanes (gold finger) |
支援作業系統 |
|
| OS | |
| Windows: WS2022 | |
| RedHat: RHEL 8.7/9.0 | |
| VMWare: ESXi 8.0/7.0U3 | |
作業環境 |
|
| RoHS | 環境規格 |
| Environmental Spec. | |
| Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| WinFast GS2050T | ||||
|---|---|---|---|---|
| OS | 語系 | 版本 | 描述 |  |
| 音效卡驅動程式 | ||||
 10 11 | English | 9500.1 ( 2023/7/3 ) | Realtek Audio 檔案大小 : [ 40645 KB ] |  |
10 11 | English | 1.41.291.0 ( 2023/7/3 ) | Realtek Audio Console UI 檔案大小 : [ 11230 KB ] | |
| 顯示晶片驅動程式 | ||||
10 11 | English | 1.13/ 1.14 ( 2023/7/3 ) | ASPEED Graphic 2500/2600 檔案大小 : [ 54932 KB ] | |
| 網路卡驅動程式 | ||||
10 11 | English | 222.0.2.1 ( 2023/7/3 ) | Broadcom 10G 檔案大小 : [ 5869 KB ] | |
| INF | ||||
10 11 | English | 10.1.19485.8386 ( 2023/7/3 ) | Intel INF 檔案大小 : [ 3899 KB ] | |
| MS.Net_Framework | ||||
10 11 | English | 4.8 ( 2023/7/3 ) | Microsoft .Net Framework 4.8 檔案大小 : [ 114531 KB ] | |
10 11 | English | 3.5 ( 2023/7/3 ) | Microsoft .Net Framework 3.5 Redistributable for Windows 檔案大小 : [ 201720 KB ] | |
10 11 | English | 6.0.302 ( 2023/7/3 ) | Microsoft .Net SDK 檔案大小 : [ 200655 KB ] | |
| Intel VROC | ||||
10 11 | English | 8.0.0.4035 ( 2023/7/3 ) | Intel VROC 檔案大小 : [ 29194 KB ] | |
| Intel QAT | ||||
10 11 | English | 2.0.3-0004 ( 2023/7/3 ) | Intel QAT 檔案大小 : [ 38284 KB ] | |
| WinFast GS2050T | |||
|---|---|---|---|
| 語系 | 版本 | 描述 | |
| User's Manual | |||
| English | 1.0 ( 2023/12/12 ) | User manual 檔案大小 : [ 46568 KB ] | |
