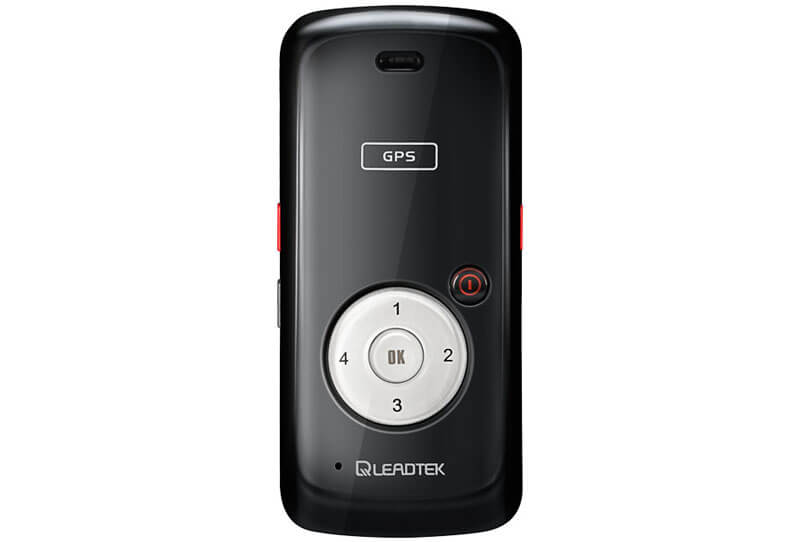

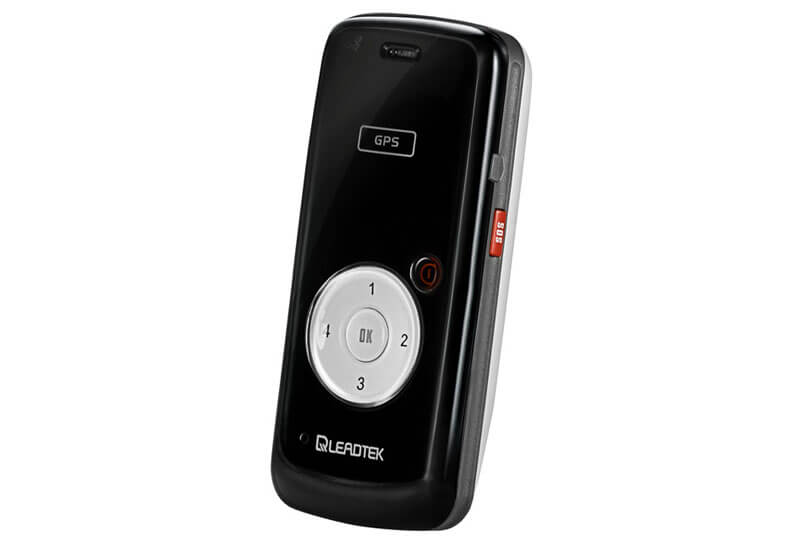

LR8M06 LBS Locator

A small and powerful GPS/GSM/GPRS tracking device, ideal for personal remote positioning and emergency reporting.

LR 8M06 is ideal for diverse GPS-enable applications, such as children and elderly safety, pet monitoring, and vehicle security etc.. It has the latest G-sensor technology to save battery power and to reduce drifting data when the tracker is not moving for better accuracy, as well as AGPS function to greatly improve cold start time for enhancing positioning speed. LR 8M06 also provides Software Development Kit (SDK) for application development and system integration.



General Specification

  • GSM 900/1800/1900 ( default tri-bands )
  • GPRS class 12
  • Built-in GSM, GPS Antenna
  • Built-in rechargeable 820 mAh
  • Long stand-by hours, up to 75 hours
  • Mini USB port for charging
  • Operating temperature range: -10°C to +50°C
  • Dimension: 88.5mm x 40 mm x 19.95 mm
  • Weight: without battery 57g / with battery 72g

GPS

  • GPS Chipset: SiRF Star III
  • Channels: 20 channel all-in-view tracking
  • Superior sensitivity: -159 dBm tracking
  • Reacquisition: 0.1 sec., average
  • Hot start: 1 sec., average
  • Warm start: 35 sec., average
  • Cold start: 42 sec., average
  • Cold start (AGPS): 8 sec., average

Feature

  • Built-in G-sensor for power saving and drift reducing
  • Power management when GPS signal not available
  • Voice communication and emergency call
  • 4 presetting phone numbers and 1 SOS emergency button
  • Its location can be real time tracked via internet or customized terminals
  • Geo-fence alarm
  • Low power alarm
  • Software Development Kit (SDK) for diverse applications

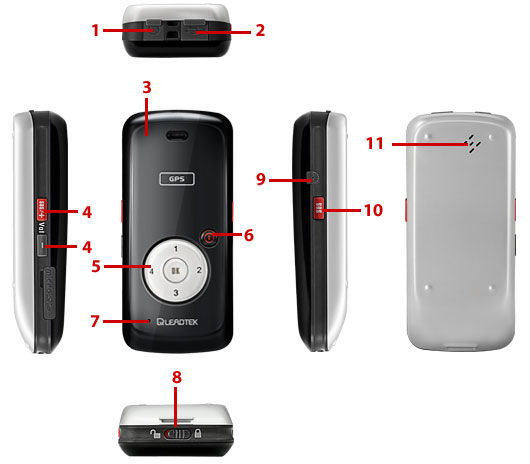

1 : Earphone
2 : Mini USB Connecter
3 : LED
4 : Volume Switch
5 : Function Keys
6 : Power Button
7 : Microphone
8 : Battery Cap Lock
9 : External Antenna Jack for GPS
10 : SOS Button
11 : Speaker

GSM/GPRS Technical Performance
Item Description specification
Air Interface　 　 　 GSM Tri-Band 900/1800/1900MHz
Class 4 2W @900 MHz
Class 1 1W @1800/1900 MHz
Data Interface　 　 　 GPRS packet Data features 　
GPRS Multislot Class 12
Coding Scheme CS1~CS4
Software Specifications
Operating system NuCleus
Communication Network GSM/GPRS 900/1800/1900
Physical Specifications
Item Description Specifications
Dimension Length 88.5mm
Width 40 mm
Height 19.95 mm
Weight　 with rechargeable battery 72g
without battery 57g
Environmental Specifications
Item Description Specification
Temperature　 　 Operating range -10 °C to 50 °C
Storage range -20 °C to 60 °C
Humidity　  up to 95% non-condensing 　
Interface Specifications
Item Description Specification
Power key　 　 Power On press 3 second and ring tone
Power Off press 3 second and music
Key Pads　 　 　 Press Power key first and then press…　
1 +OK Dial Pre-Set 1st Number
2 +OK Dial Pre-Set 2nd Number
3 +OK Dial Pre-Set 3rd Number
4 +OK Dial Pre-Set 4th Number
SOS SOS and +/sos Keys Press two keys at the same time
Power recharge　 Mini-USB connector USB 1.1
External antenna MMCX　 　
Storage　 SD Card Slut Micro-SD (only for Data-log)
Microphone  Build-in 　
Speaker　 Build-in Mono
Ear-phone　 Ear-phone connector φ 2.5mm
Volume control　 　 increasing volume ＋/SOS key
decreasing volume － key
Antenna GSM, GPS Build-In
LED Signal Definitions
Indication Conditions LED display
Service　 　 Limit service (no sim card in) Red
No service (no signal) Red
Request for input sim card PIN-code Red->Green->Blue->Red->Green->…
Mode　 　 　 　 　 GSM + GPS Not Fixed Blue blink
GSM + GPS Fixed Cyan (Blue+Green) blinking
GPRS + GPS Not Fixed Yellow (Red+Green) blinking
GPRS + GPS Fixed Green blinking
Tracking + GPS Not Fixed Yellow (Red+Green) fast blinking
Tracking + GPS Fixed Green fast blinking
Battery 　 　 Low battery Red->Green->Red->Green….
Charging Red blinking
Fully charged Green
Electrical Specifications
Item Description Specification
Supply voltage　 From Battery 4.2V
From Power Adaptor 5.0V
Power consumption　 　 　 Operation mode (GSM) 130mA~ 270mA
Standby mode (Trace On) 70±5mA
Power saving mode (Trace Off) 5mA
Battery: 　 　 　 Battery Cell Li-ion (820mAh)
Dimension (LxWxH) 43 mm x 31.7 mm x 6.9 mm
Charging time 3 hr.
Output voltage 4.2V
