Gear up for game-changing experiences with the NVIDIA® GeForce RTX™ 5080 and AI-powered DLSS 4. Built with NVIDIA Blackwell and equipped with blistering-fast GDDR7 memory, it lets you run the most graphically demanding games and creative applications with stunning fidelity and performance. With NVIDIA Studio, you can bring your creative projects to life faster than ever.
Max AI performance with FP4 and DLSS 4
Optimized for neural shaders
Built for Mega Geometry
NVIDIA Blackwell Architecture
NVIDIA DLSS 4 with Multi Frame Generation
NVIDIA Reflex 2 with Frame Warp
Full ray tracing with neural rendering
NVIDIA ACE
NVIDIA Studio creator tools and technology
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
NVIDIA app with Game Ready and Studio Drivers
1 Metal Backplate

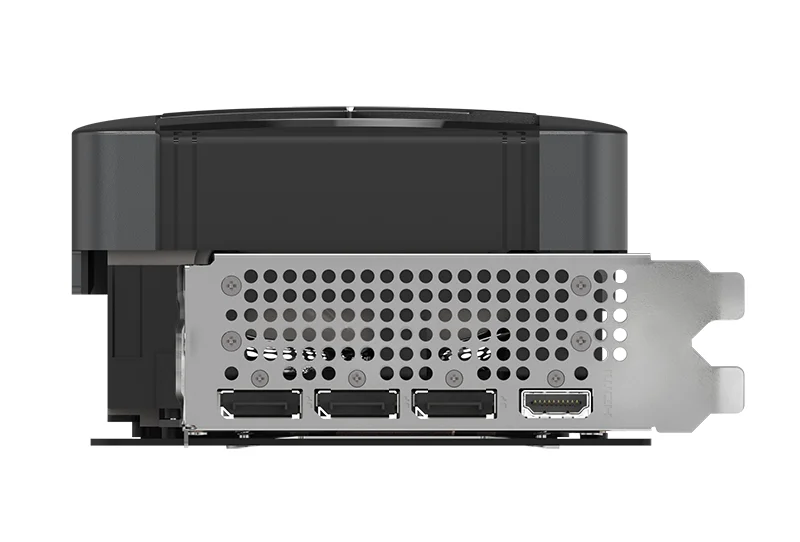

2 Supports 3× DisplayPort and HDMI
3 Top-shelf capacitors, chokes, and MOSFETs
4 7 Heat pipes and Vapor Chamber Base

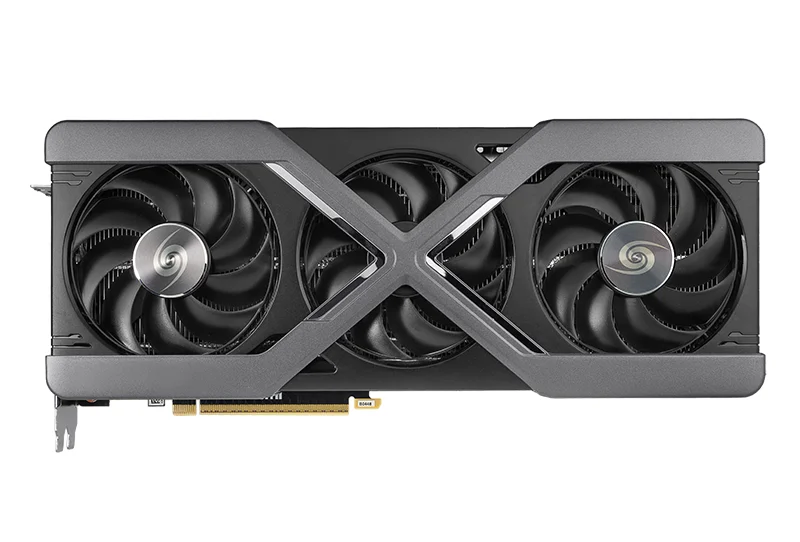

5 Three large cooling fans
Three large fans provide hurricane-level airflow to quickly reduce temperatures and maximize performance, delivering a smooth, blazing-fast experience.
Five 8 mm and two 6 mm heat pipes, along with large aluminum fins and a Vapor Chamber Base, quickly and efficiently dissipate heat.
High-conductivity heat pipes rapidly dissipate the heat emitted by the GPU, thanks to an exclusive thermal module.
With its integrated design, the board’s critical components are cooled by an advanced heat dissipation module, extending lifespan and enhancing stability.
Provides exceptional speed and energy efficiency.
The backplate is engineered to prevent bending and structural failure over long-term use, ensuring enhanced stability.
| Graphics Processing Unit (GPU) | NVIDIA GeForce® RTX 5080 |
| Bus Interface | PCI Express 5.0 |
| Memory Configuration | 16G GDDR7 |
| Core Clock | Base clock: 2.3 GHz Boost clock: 2.62 GHz |
| Memory Speed | 30 Gbps |
| Output Ports | 1x HDMI(2.1), 3 x DisplayPort(2.1) |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 165Hz with DSC |
| Memory Interface Width | 256-bit |
| Memory Bandwidth (GB/sec) | 960 |
| CUDA Cores | 10752 |
| HDCP Support | Yes |
| Microsoft® DirectX® | Microsoft DirectX® 12 Ultimate |
| NVIDIA RTX NVLink | No |
| OpenGL® | 4.6 |
| Maximum Power Draw(W) | 360 W |

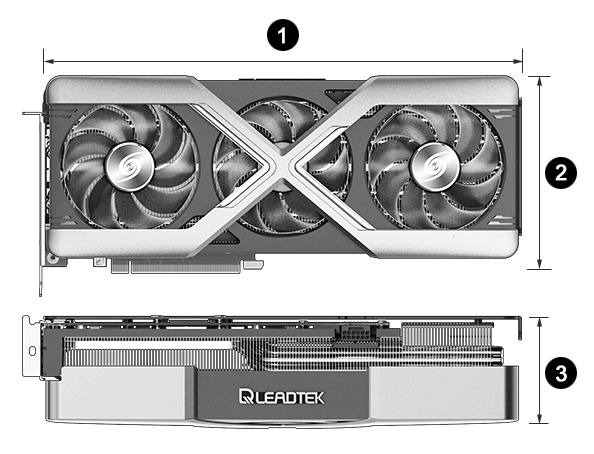

| Dimensions |
1 316.5 mm (length) 2 130 mm (height) 3 72.6 mm (thickness)  |
| Package Contents | WinFast RTX 5080 HURRICANE Graphics Card |
| Quick Installation Guide | |
| 16 Pin Power Cable x 1(3 x PCI/E 8pin to 16Pin) | |
| GPU Support Holder | |
| Requirements | Microsoft Windows10,Windows 11 and Linux operation system (64 bit) |
| PCI-Express compliant motherboard with one four-width x16 graphics slot | |
| Three 8-pin PCI-Express supplementary power connectors | |
| 8GB system memory (16GB or higher recommended) | |
| 1.5GB of available hard disk space | |
| A DP or HDMI compatible monitor | |
| Minimum 850W Power Supply |
| WinFast RTX 5080 HURRICANE 16G | ||||
|---|---|---|---|---|
| OS | 言語 | バージョン | 説明 |  |
| Driver | ||||
 7 10 64bit | Multilanguage | 3.20.2.34 ( 2020/6/1 ) | GeForce Experience automatically keeps your drivers up to date and your games optimized 合計サイズ: [ 120181 KB ] |  |
| WinFast RTX 5080 HURRICANE 16G | |||
|---|---|---|---|
| 言語 | バージョン | 説明 | |
| Quick Guide | |||
| Multilanguage | Null ( 2018/10/12 ) | GeForce Quick Installation Guide 合計サイズ: [ 1071 KB ] | |
