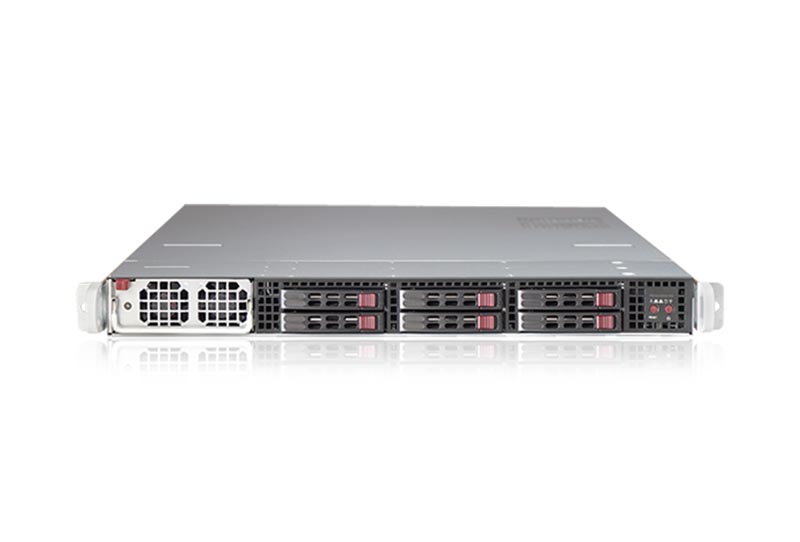

WinFast GS1030ST

  • Optimized for AI/Deep Learning Inference
  • Optimized for NVIDIA GRID
  • Supports up to 2 double-wide GPU cards

Optimized for

  • AI / Deep Learning (Inference)
  • Scientific Research
  • 3D Rendering Farm
  • Astrophysics, Business Intelligence

Key Features


  • Single Socket P (LGA 3647) supports  2nd Gen. Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots (support double-width GPU)
    1 PCI-E 3.0 x16 low-profile slot (center right)
  • Support up to 2 pcs of Double-width GPUs
  • Dual 10GBase-T LAN ports via Intel X550

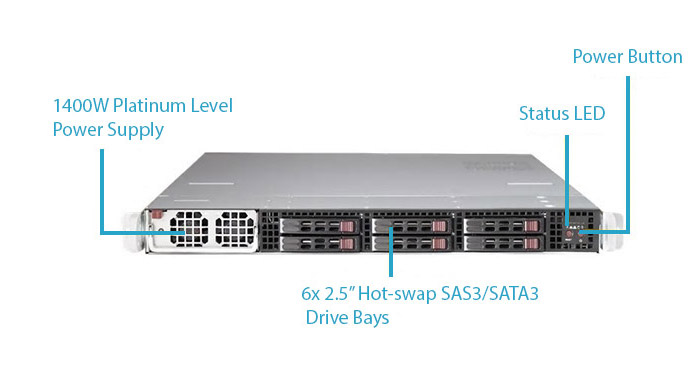

  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • 2 M.2 form factor 2280, supports both M.2 NVMe and SATA SSD
  • 8 Heavy duty 4cm counter-rotating  fans with air shroud
  • 1400W High-efficiency Power Supply Platinum Level (94%+)

SATA vs NVMe

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3

Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Customer Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.

Processor

CPU

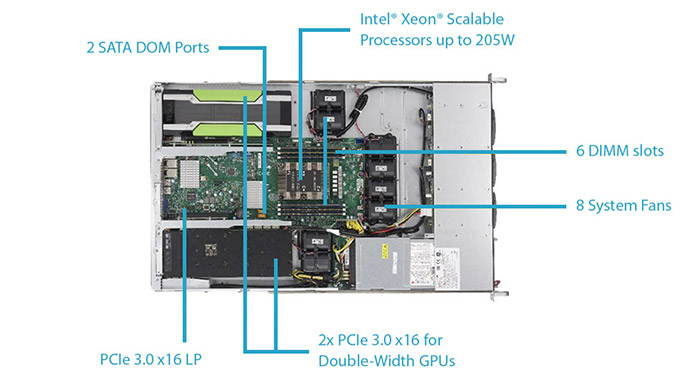

  • Single Socket P (LGA 3647)
  • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡
  • Support CPU TDP 70-205W
  • Up to 28 Cores

System Memory

Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers Dual Port 10GbE from Intel X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC

Input / Output

SATA 6 SATA3 (6Gbps) ports

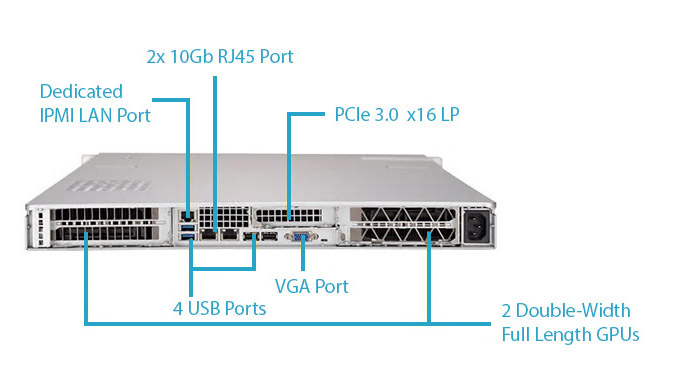

LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Video 1 VGA Connector
COM Port 1 COM port (header)
DOM 2 DOM (Disk on Module) power connectors

Form Factor

1U Rackmountable with Rail kit

Dimensions

Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 28.5" (724mm)
Weight
  • Net Weight: 28 lbs (12.70 kg)
  • Gross Weight: 36 lbs (16.33 kg)

Drive Bays / Storage

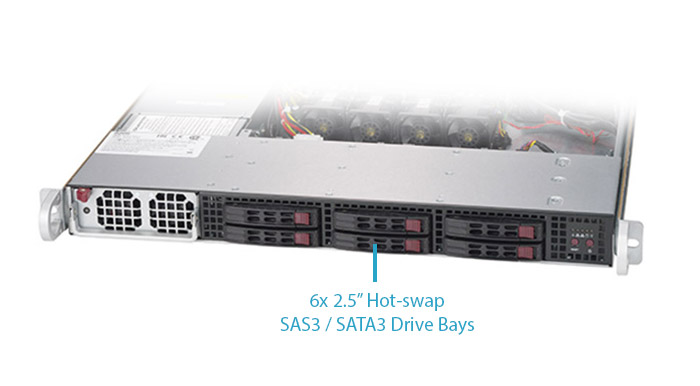

Hot-swap 6 Hot-swap 2.5" SAS/SATA drive bays
M.2
  • Supports 2 M.2 form factor 2280
  • Supports both M.2 NVMe and SATA SSD

Expansion Slots

PCI-Express
  • 1 PCI-E 3.0 x16 slot (center right)
  • 1 PCI-E 3.0 x16 slot (right riser)
  • 1 PCI-E 3.0 x16 slot (left riser)

System Cooling

Fans 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

Power Supply

1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
  • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz

OS Compatibility

  • Red Hat Enterprise Linux 7.3 (x86_64) or later
  • Windows Server 2016
  • Windows Server 2019
  • Citrix Xenserver 7.1.0 CU2 or later

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
