WinFast WS852

  • Mainstream Workstation
  • Designed for AI/Deep learning/CAD and 3D Modeling
  • Support 2 NVIDIA Double-Width GPUs or 1 600W GPU

WinFast WS852 delivers powerful, scalable performance for next-generation professional workloads. Designed for AI and deep learning, 3D simulation and rendering, CAD, and digital content creation, it combines a single Intel® Xeon® 600 Series processor, up to 1TB of DDR5 ECC RDIMM memory, and support for two NVIDIA double-width GPUs. Featuring PCIe® 5.0, 10GbE networking, flexible NVMe and SATA storage, and a 1300W 80 PLUS Platinum power supply, the WS852 is built to accelerate demanding computing and GPU-intensive applications with outstanding performance and reliability.

Optimized for

  • AI / Deep Learning
  • 2D/3D and CAD Applications
  • 3D Simulation and Rendering
  • Digital Content Creation

Key Features

  • Single Intel® Xeon® 600 Series processor, up to 86 cores/350W TDP
  • 8 DIMM slots, up to 1TB: 8x 128 GB DRAM
    Memory Type: 6400MHz ECC DDR5 RDIMM
  • 2 PCIe 5.0 x8 (in x8) FHFL slots
    2 PCIe 5.0 x16 (in x16) FHFL slotst
    2 M.2 Interface: PCI-E 5.0 x4
  • Support 2 NVIDIA Double-width GPU cards
  • 1 RJ45 10GbE with Marvell® AQC113
    1 RJ45 1GbE with Intel® I219-LM
  • 2 internal fixed 3.5" SATA* drive bays
    4 internal fixed 2.5" SATA* drive bays
    2 internal fixed 2.5" PCIe 5.0 NVMe* drive bays
  • 1300W Power Supplies Platinum Level

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

SATA vs NVMe

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications

Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications

CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

Processor
CPU
  • Single E2 (LGA 4710-2)
  • Intel® Xeon® 600 Processor for Workstation
  • Support CPU TDP 350W
  • Up to 86 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Memory Capacity: Up to 1TB
Memory Type 6400MHz ECC DDR5 RDIMM
On-Board Devices
Chipset Intel® W890
SATA 6 SATA3 (6 Gbps) ports, RAID 0/1/5/10 support
Network
  • 1 RJ45 10 Gigabit Ethernet LAN port
  • 1 RJ45 1 Gigabit Ethernet LAN port

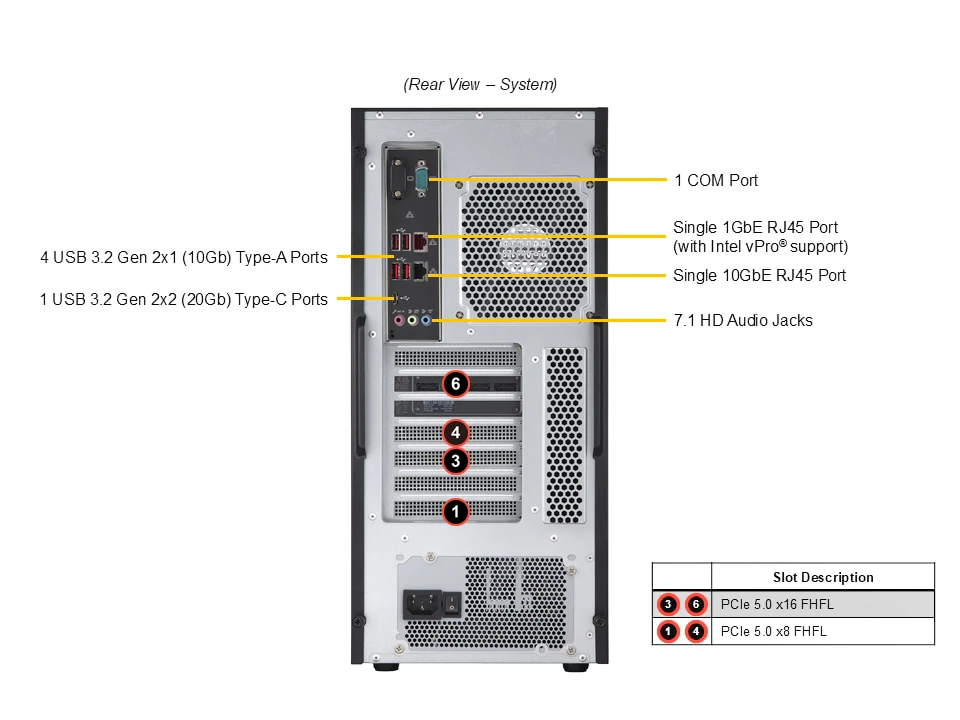

Input / Output
SATA 6 SATA3 (6Gbps) ports
NVMe 2 NVMe support with M.2 Socket
LAN 1 RJ45 10 GbE and 1 RJ45 1 GbE LAN ports

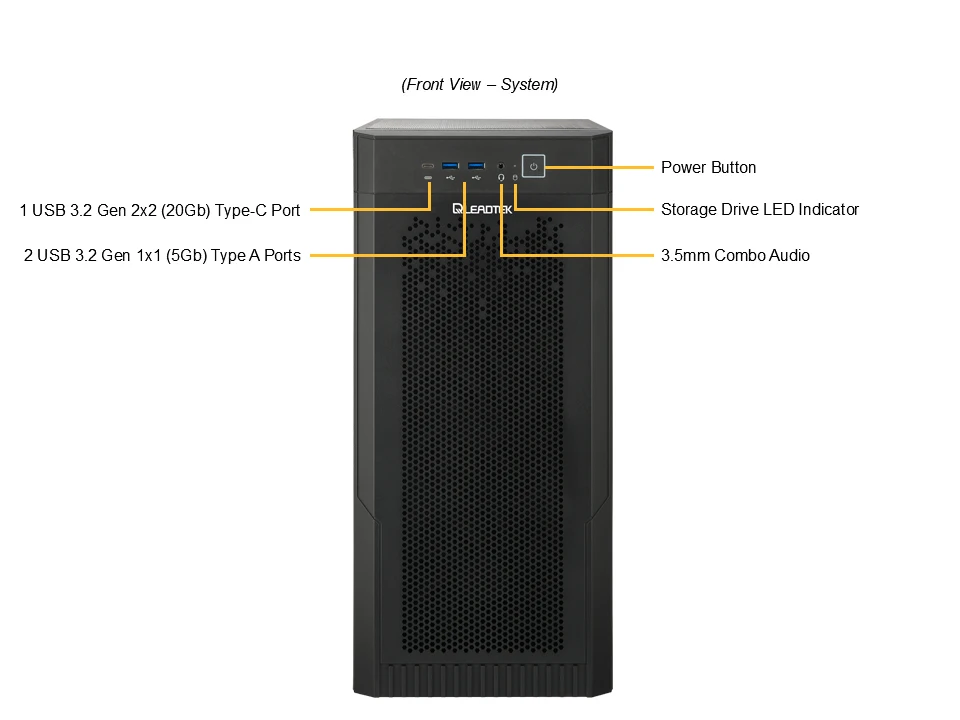

USB
  • 2 USB 3.2 Gen1 Type-A ports (front)
  • 4 USB 3.2 Gen2 Type-A ports (Rear)
  • 1 USB 3.2 Gen2 Type-C port (Rear)
  • 1 USB 3.2 Gen2 Type-C port (Front)
Audio 7.1 HD Audio Jacks
Video 1 VGA port
Form Factor
Mid-Tower

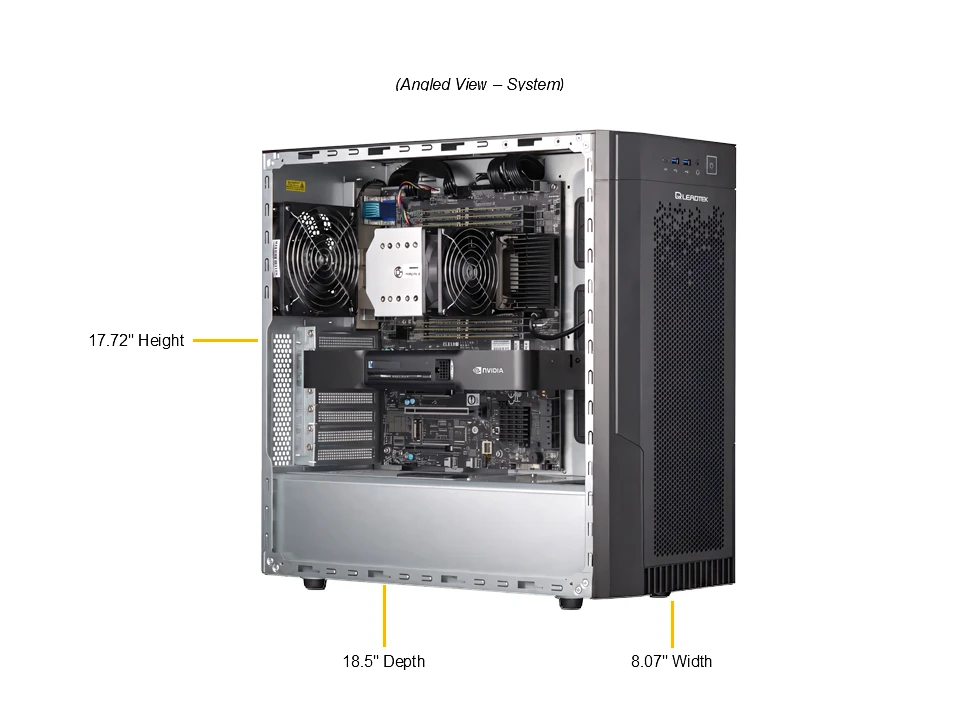

Dimensions
Height 17.72" (450 mm)
Width 8.07" (205 mm)
Depth 18.5" (470 mm)
Weight Gross Weight: 19.2 lbs (8.7 kg)
Drive Bays / Storage
  • 2 internal fixed 3.5" SATA* drive bays
  • 4 internal fixed 2.5" SATA* drive bays
  • 2 internal fixed 2.5" PCIe 5.0 NVMe* drive bays
  • 2 M.2 (M-key, 2280/22110)
Expansion Slots
PCI-Express
  • 2 PCI-E 5.0 x16 FHFL slots
  • 2 PCI-E 5.0 x8 FHFL slots
M.2
  • M.2 Interface: PCI-E 5.0 x4
  • Form Factor: 2280/22110, M-Key
System Cooling
Fans
  • 1x 12cm rear exhaust fan
  • Up to 3x 12cm front cooling fan
Power Supply
1x 1300W Platinum Level (92%) power supply
Input 1300W: 100-240Vac / 50-60Hz
+12V Max: 108.33A / Min: 0A (100Vac-240Vac)
5V SB Max: 3A / Min: 0A
OS Compatibility
  • Windows 11
  • Ubuntu 24.04/22.04
  • RHEL 10.0
Operating Environme
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
