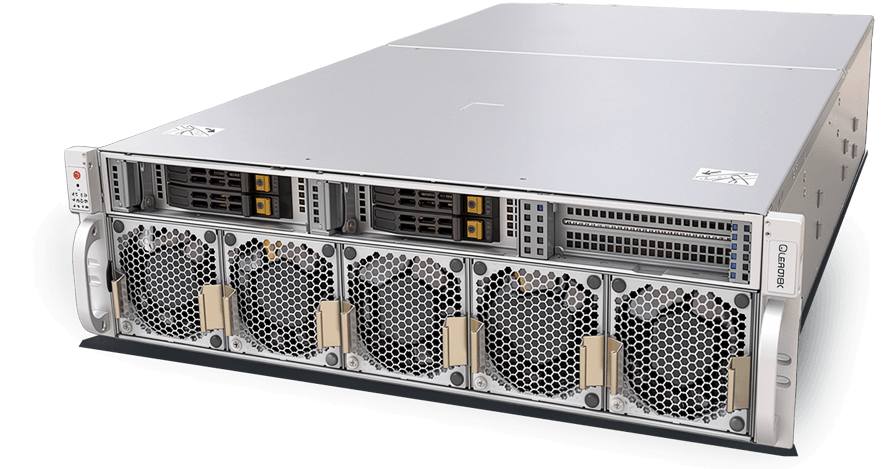

WinFast GS3852T

  • Optimized for AI/Deep Learning GPU peering
  • Optimized for HPC/Industrial Automation
  • Supports 8 double-wide GPU cards

The WinFast GS3852T is a powerhouse 3U server engineered for AI, HPC, and 3D rendering, delivering massive scalability and performance for demanding enterprise workloads.

Designed for peak performance in virtualized environments and AI model deployment, the GS3852T is the ideal infrastructure solution for voracious computational demands.

Optimized for

  • AI / Deep Learning
  • High Performance Computing
  • 3D Rendering Farm
  • Media/Video Streaming

Key Features

  • Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series CPU
  • 24 DIMMs, up to 6TB 6400MT/s ECC DDR5 RDIMM
  • 8x PCI-E 5.0 x16 FHFL slots
    2x PCI-E 5.0 x8 FHFL slots
  • 2x M.2 Interface: PCI-E 5.0 x4
    M.2 Form Factor: 2280, 22110
  • Support up to 8 NVIDIA GPU cards
  • Dual LAN with 10GbE RJ45
  • IPMI: ASPEED AST2600
  • 4 front hot-swap 2.5” PCIe 5.0 x4 NVMe drive bays
  • 3x 2700W (2+1) Redundant power supplies, Titanium Level (96%)

Multiple GPU support

WinFast GS3852T features a powerful GPU architecture that supports up to 8 double-width GPUs in a 3U server, including 4pcs NVIDIA® NVIDIA RTX PRO™ 6000 Blackwell Server Edition /H200 NVL or 8pcs RTX PRO™ 6000 Blackwell Max-Q Workstation Edition/RTX PRO™ 5000 Blackwell, to enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

Intel® Xeon® 6900 Series processors whith P-cores

Intel® Xeon® 6900 series
128 Powerful Cores
Optimized for cloud, enterprise, HPC, network, security and IoT workloads.
DDR5
Improve computing performance with higher memory bandwidth.up to 6400MT/s (with RDIMM) or 8800MT/s (with MRDIMM)
PCI Express 5.0
Unlock new I/O speeds with opportunities to enable the highest possible throughput between the CPU and connected devices, Up to 80 lanes of PCIe 5.0 - ideal for fast networking, high-bandwidth accelerators and high-performance storage devices.
AMX
Intel® Advanced Matrix Extensions (Intel® AMX) Accelerates deep learning (DL) inference and training workloads, such as natural language processing (NLP), recommendation systems, and image recognition.

PCIe® 5.0 doubles the data transfer speed over the previous generation

PCIe 5.0 delivers double the I/O performance over PCIe 4.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.

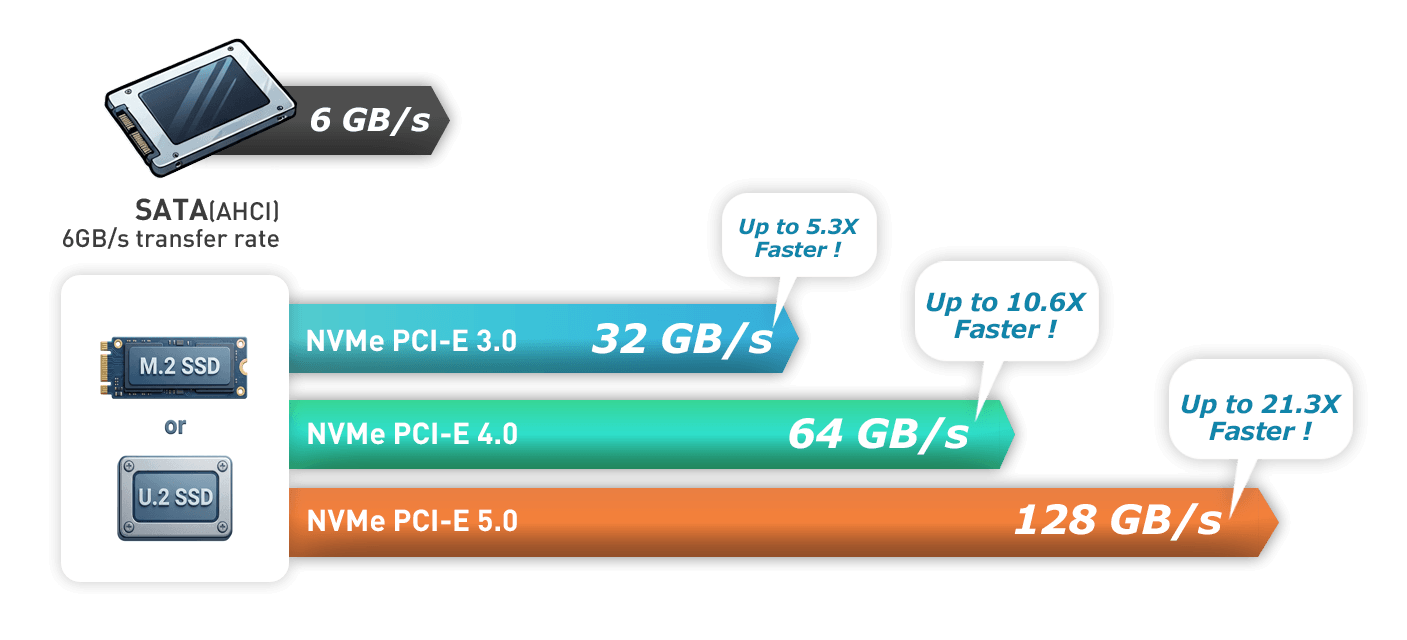

SATA vs NVMe

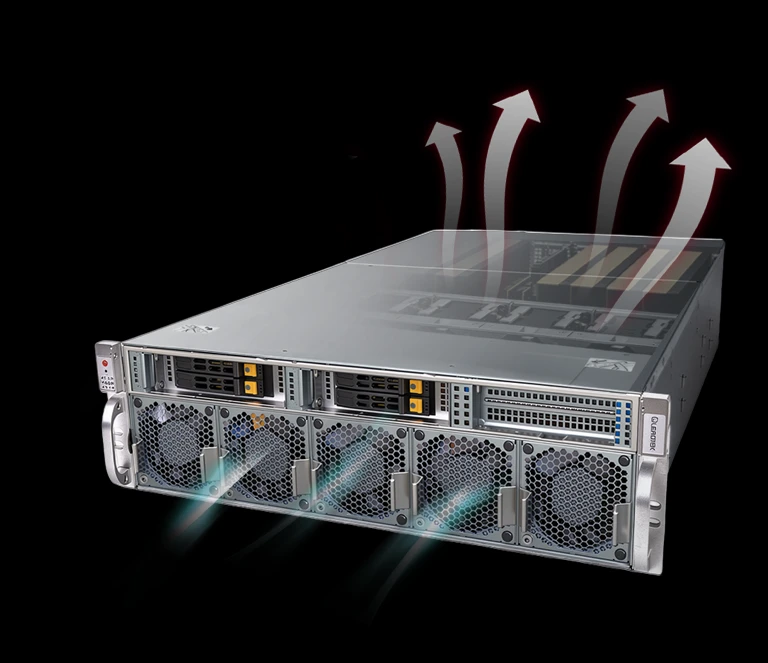

Cooling System

High efficiency cooling system-5x Heavy duty fans with Optimal Fan Speed Control, for less power and ensure a stable environment and availability 24/7.

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Optional software

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

Leadtek AI Management Software

Leadtek GPU Docker Management System (GDMS) is a Docker-based GPU resource allocation and management software. GDMS uses an intuitive and graphical user interface to centrally manage AI and big data projects and development resources for universities/schools, research institutions, and corporations.

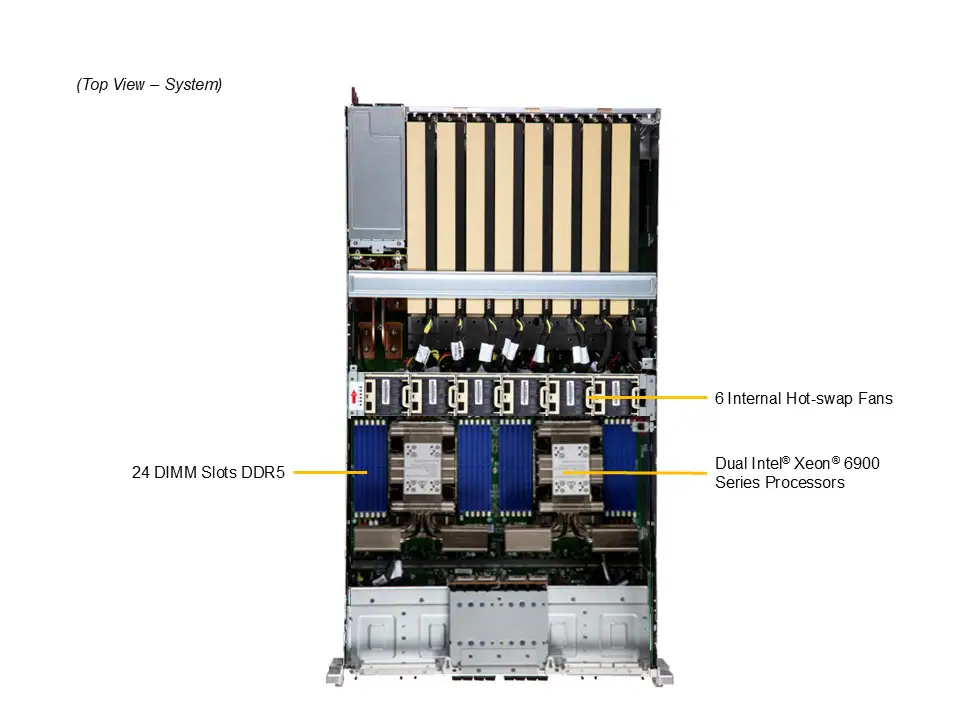

Processor
CPU
  • Dual Socket BR (LGA-7529)
    Intel® Xeon® 6900 series processors with P-cores
  • Supports CPU TDP 500W/up to 128 cores
System Memory
Memory Capacity
  • 24x DIMM slots
  • Up to 6TB: 24x 256 GB DRAM
Memory Type 6400MT/s ECC DDR5 RDIMM
On-Board Devices
Chipset System on Chip
Network 2x 10GbE BaseT with Intel® X710-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
NVMe 2x M.2 Socket support NVMe PCI-e 5.0x4
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 2x USB 3.0 ports
Video 1x VGA port
Form Factor
3U Rackmountable with Rail kit
Dimensions
Height 5.2" (132.1 mm)
Width 17.26" (438.4 mm)
Depth 31.5" (800 mm)
Weight
  • Net Weight: 70 lbs (32 kg)
  • Gross Weight: 135 lbs (61.24 kg)

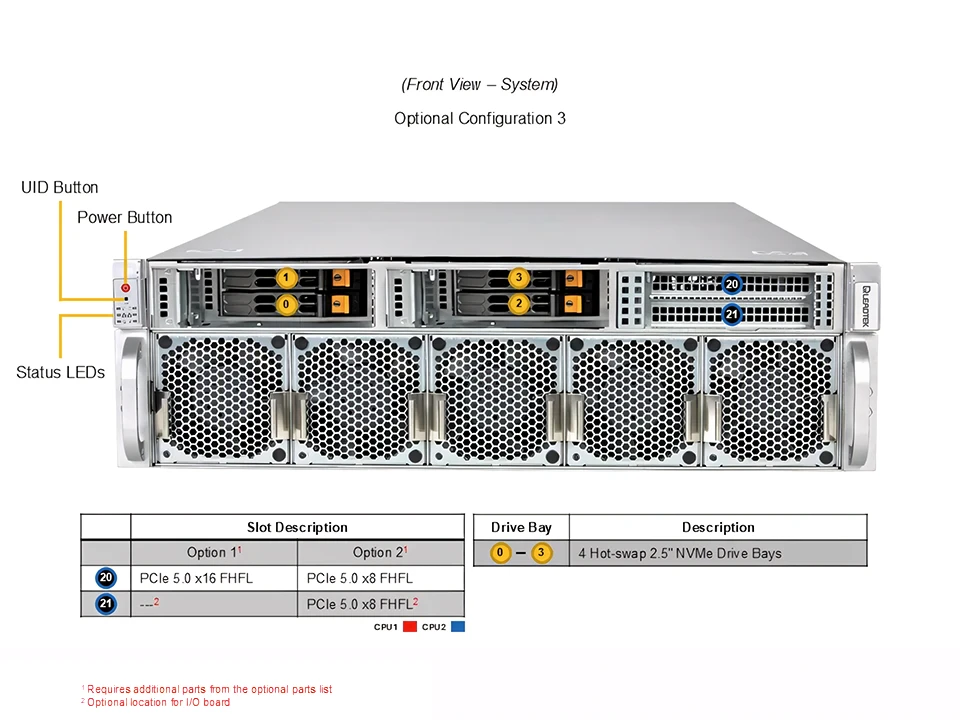

Drive Bays / Storage
4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays

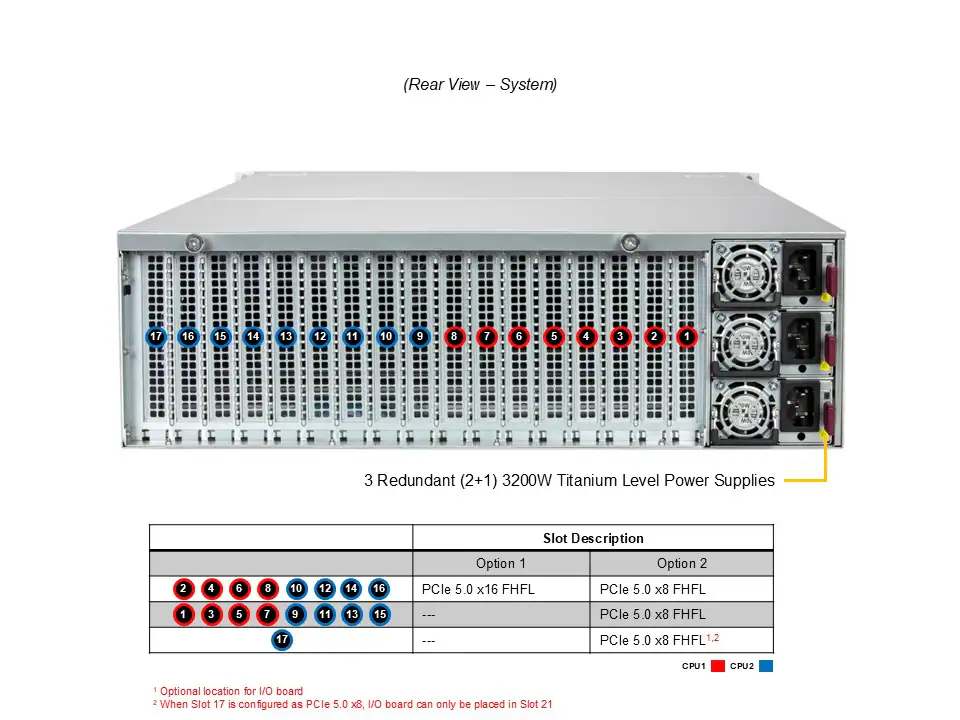

Expansion Slots
PCI-Express
  • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
  • 2 PCIe 5.0 x16 (in x16) FHFL slots
M.2
  • 2 M.2 Interface: PCI-E 5.0x4
  • Form Factor: 2280, 22110
  • Key: M-Key
System Cooling
Fans
  • 5x 8cm hot-swap heavy duty fans
  • 6x 6cm internal fan(s)
Power Supply
3x 2700W Redundant (2+1) Titanium level power supplies with PMBus
Total Output Power
  • AC Input: 2700W: 200-240Vac / 50-60Hz
  • +12V: Max: 225A / Min: 0A (200Vac-240Vac)
  • 12V SB: Max: 4A / Min: 0A
OS Compatibility
  • Windows Server 2025
  • RHEL 10.0
  • Ubuntu 24.04 LTS
Operating Environme
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
