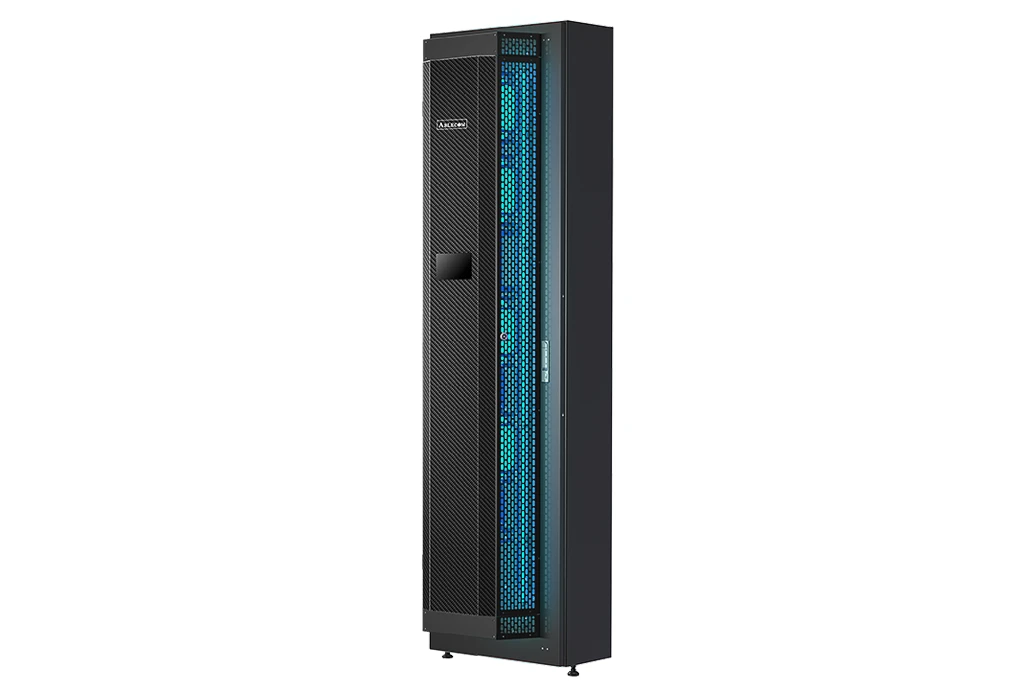

Telecom-Native DC Low-Profile Solution

CDA42(DC)

  • Specifically engineered for DC 48V infrastructure with a 5-pc DC centrifugal fan array.
  • Ultra-compact depth of 235mm (30% space reduction compared to CDR42) for narrow aisles.
  • Rated for 35 KW base and up to 50 KW peak capacity with 2500 CFM airflow.
  • Supports multi-protocol communication (SNMP, Modbus, Redfish API, BMC Link) alongside leak/condensation detection.

CDA42(DC)

Model CDA42 (DC)
Support rack Form Factor 42U - 52U
Dimension (Width) 600 – 800 mm (23.62" - 31.50")
Dimension (Depth) 235 mm (9.25“)
Cooling Capacity * 35 kW (50 kW @ATD=15℃)
Fan Quantity 5 pcs DC Centrifugal Fan
Active Air Flow ** 2500 CFM
Design Water Flow Max: 70 LPM (18.5 GPM)
Water Fluid Quality ASHRAE D-90564
Max Power Consumption 1.2 KW
Power Supply DC:48V
Internal Sensor Detection Temp., Diff. Pressure, Condensation, Leakage
Communication SNMP, Modbus, Redfish API, BMC Link
Monitor control Touch Panel, Web UI
Operating Ambient Temperature 15℃~45℃ (59℉~113℉)
Operating Relative Humidity 8~80% RH (No Condensing)
Operating Attitude 0~3,048m(0~10,000 ft)
Water Connection Quick Dry Connector (FD83)
Shipping Weight (kg) 252
Dry weight(kg) 114
Wet Weight(kg) 130

* Test condition: 23.9°C (75°F) Room Temperature, 45%RH, Supply Water at 12.8°C (55°F).
** Test condition: All the RDHx fan modules operation by 100% speed in the wind tunnel.
*** Max air flow supply from rack systems to RDHx: 52RD model: 8000+CFM ; 42RDmodel: 7000+CFM.

  • Revised web page of product spec and information won't be noticed, product colorbox printing shows the actual information of the product.
  • Above product spec is for reference only, actual spec rely on the real product and Leadtek keeps the right to alter. Each sales region will impacts the product difference, please contact your supplier for making sure the actual product information.
  • The adapter, cable and software listed on the web page are for reference only and Leadtek keeps the right to alter, revised information won't be noticed.
