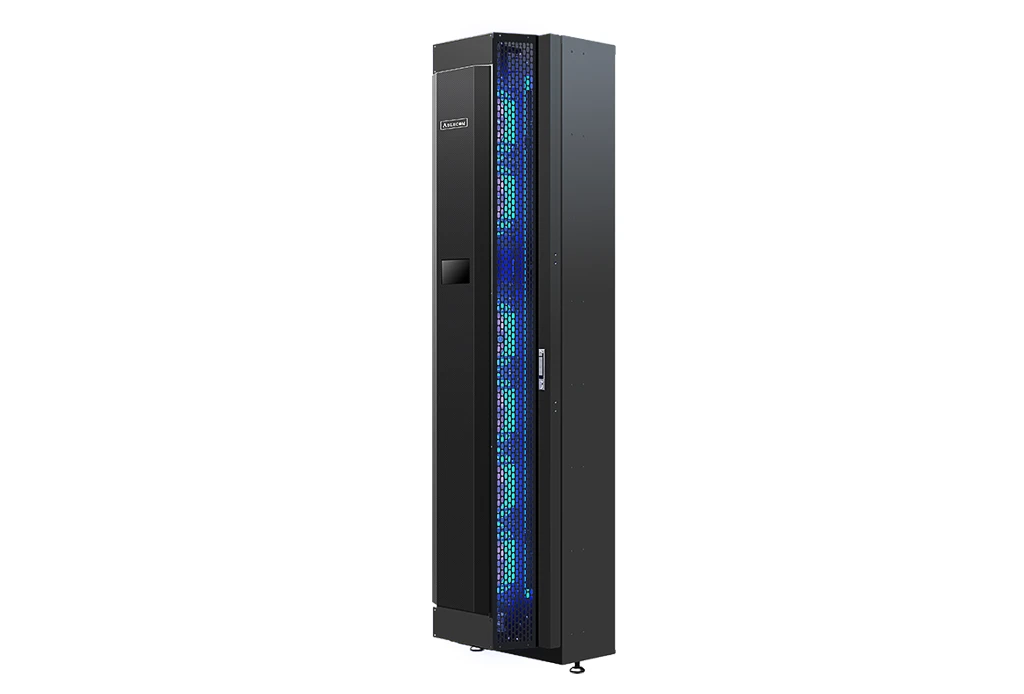

Ultimate Thermal Management for Next-Gen GPUs

CDR82

  • Top-tier thermal management yielding 78kW base and up to 100kW peak capacity
  • Massive 6-pc EC centrifugal fan matrix generating 7440 CFM of active airflow.
  • Supports broader industrial inputs of AC 200–277V (1+1) with a 3.3kW power envelope.
  • scaling up to 48U–60U enclosures with 100 LPM flow rate.

CDR82

Model CDR82 (EC)
Support rack Form Factor 48U - 60U
Dimension (Width) 600 – 800 mm (23.62" - 31.50")
Dimension (Depth) 382.9 – 470 mm (15.07“ – 18.50”)
Cooling Capacity * 72 kW (100 kW @ATD=15℃)
Fan Quantity 6pcs EC Centrifugal Fan
Active Air Flow ** 7440 CFM
Design Water Flow Max: 100 LPM
Water Fluid Quality ASHRAE D-90564
Max Power Consumption 3.3 kW
Power Supply AC:200–277V (1+1)
Internal Sensor Detection Temp., Diff. Pressure, Condensation, Leakage
Communication SNMP, Modbus, Redfish API, BMC Link
Monitor control Touch Panel, Web UI
Operating Ambient Temperature 15℃~45℃ (59℉~113℉)
Operating Relative Humidity 8~80% RH (No Condensing)
Operating Attitude 0~3,048m (0~10,000 ft)
Water Connection Quick Dry Connector (FD83)
Shipping Weight (kg) 287
Dry weight(kg) 146
Wet Weight(kg) 165

* Test condition: 23.9°C (75°F) Room Temperature, 45%RH, Supply Water at 12.8°C (55°F).
** Test condition: All the RDHx fan modules operation by 100% speed in the wind tunnel.
*** Max air flow supply from rack systems to RDHx: 52RD model: 8000+CFM ; 42RDmodel: 7000+CFM.
