WinFast GS2030T

  • Optimized for AI/Deep Learning GPU peering
  • Optimized for NVIDIA GRID
  • Supports up to 6 double-wide GPU cards

Optimized for

  • AI / Deep Learning
  • Scientific Research
  • 3D Rendering Farm
  • Astrophysics, Business Intelligence

Key Features


  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    Supports Intel® Optane™ DCPMM
  • 6 PCI-E 3.0 x16 slots (FHFL)
    1 PCI-E 3.0 x8 (in x16) slot (LP)
  • Support up to 6 pcs of Double-width GPUs
  • Dual 10GBase-T LAN ports
  • 8 Hot-swap 2.5" SAS/SATA drive bays
    2 Hot-swap 2.5"SATA/NVMe drive bays

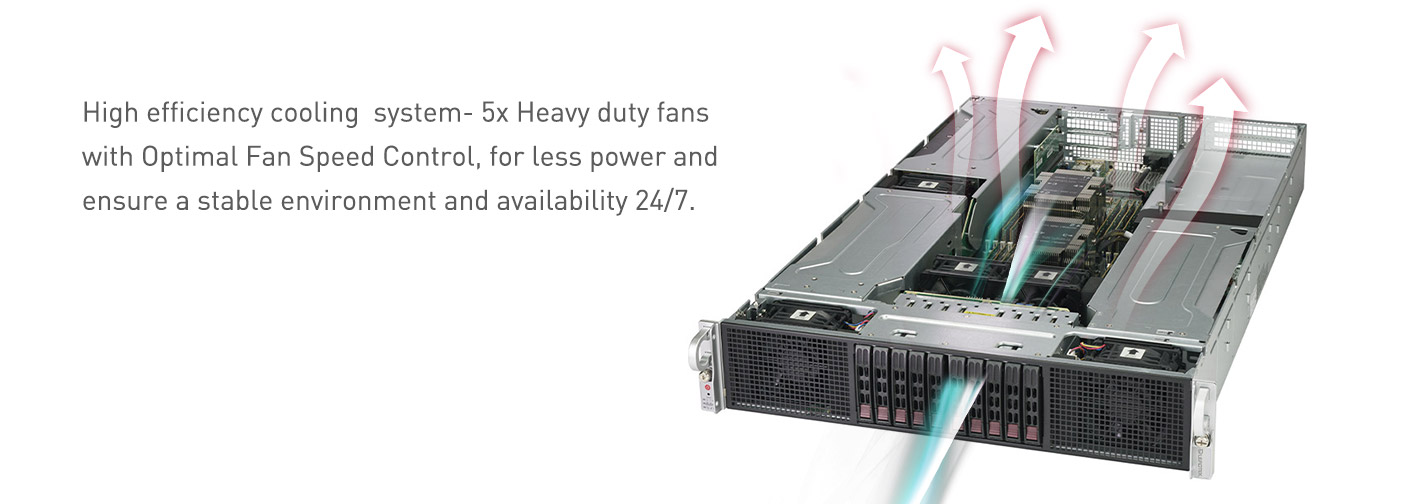

  • 5x 8cm heavy duty fans with optimal fan speed control
  • 2000W (1+1) Redundant Power Supplies Platinum Level (94%)

SATA vs NVMe

HPC is a fundamental pillar of modern science. From predicting weather to discovering drugs to finding new energy sources, researchers use large computing systems to simulate and predict our world. AI extends traditional HPC by allowing researchers to analyze large volumes of data for rapid insights where simulation alone cannot fully predict the real world.

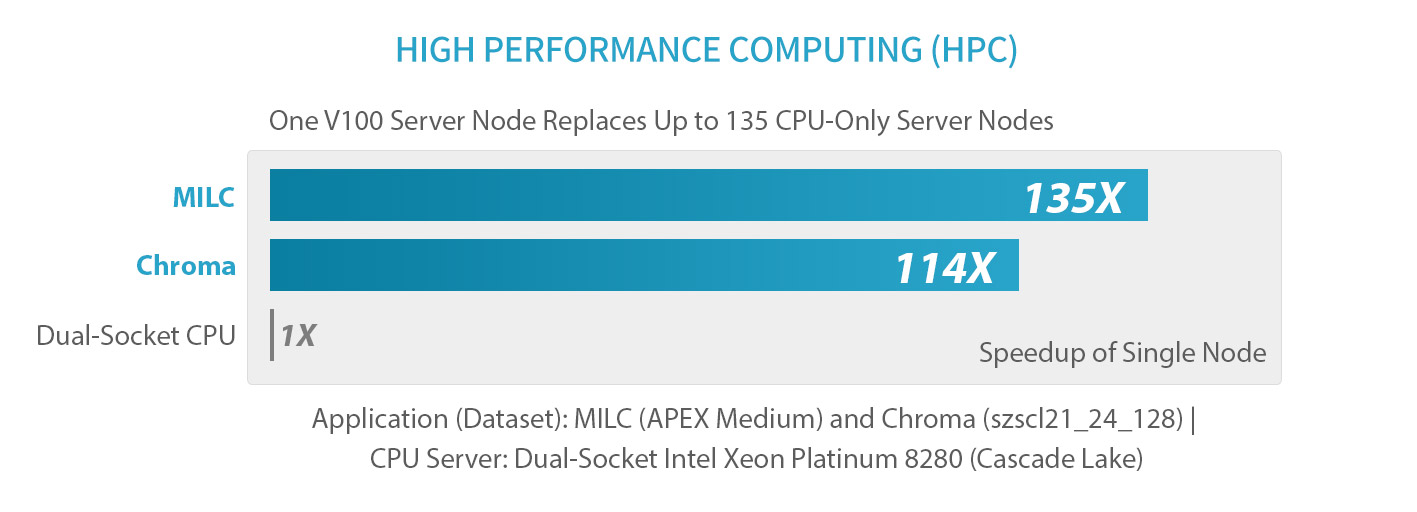

V100 is engineered for the convergence of AI and HPC. It offers a platform for HPC systems to excel at both computational science for scientific simulation and data science for finding insights in data. By pairing NVIDIA CUDA® cores and Tensor Cores within a unified architecture, a single server with V100 GPUs can replace hundreds of commodity CPU-only servers for both traditional HPC and AI workloads. Every researcher and engineer can now afford an AI supercomputer to tackle their most challenging work

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3

Applications


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Customer Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.

Processor

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
  • 3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
  • Up to 28 Cores

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers Dual Port 10GbE from Intel X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC

Input / Output

SATA 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
Video 1 VGA Connector
COM Port 1 COM port (header)

Form Factor

2U Rackmountable with Rail kit

Dimensions

Height 3.5" (89mm)
Width 17.2" (437mm)
Depth 31" (787mm)
Weight
  • Net Weight: 39.5 lbs (17.9 kg)
  • Gross Weight: 54 lbs (24.5 kg)

Drive Bays / Storage

Hot-swap
  • 8 Hot-swap 2.5" SAS/SATA drive bays
  • 2 Hot-swap 2.5“ SATA/NVMe drive bays

Expansion Slots

PCI-Express
  • 6 PCI-E 3.0 x16 slot
  • 1 PCI-E 3.0 x8 (in x16, LP) slot

System Cooling

Fans 5x 8cm Heavy duty fans with optimal fan speed control

Power Supply

2000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 - 120Vac
  • 1800W: 200 - 220Vac
  • 1980W: 220 - 230Vac
  • 2000W: 230 - 240Vac
  • 1980W: 200 - 240Vac (UL/cUL only)
  • 2000W: 200 - 240Vdc (for CCC only)

OS Compatibility

  • Red Hat Enterprise Linux 7.5 (x86_64) or later
  • Windows Server 2016
  • Windows Server 2019
  • Citrix Xenserver 7.1.0 CU2 or later

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

WinFast GS2030T
OS Language Version Description
BIOS
English3.6
( 2022/3/10 )		BIOS
Total size: [ 9679 KB ] 		download
VGA driver

10 64bit		MultilanguageNull
( 2020/7/24 )		Aspeed AST2400/AST2500 Graphic Driver
Total size: [ 55594 KB ] 		download
LAN driver

10 64bit		Multilanguage25.0
( 2020/7/24 )		Intel LAN Driver (All)
Total size: [ 540717 KB ] 		download
Chipset driver

10 64bit		Multilanguagev10.1.2.86
( 2020/7/24 )		Intel Chipset Driver
Total size: [ 3236 KB ] 		download
USB driver

10 64bit		Multilanguage 4.0.0.36
( 2020/7/24 )		USB 3.0 driver
Total size: [ 5405 KB ] 		download
SATA Driver

10 64bit		Multilanguage 6.1.0.1247
( 2020/7/24 )		Intel PCH Driver(SATA)
Total size: [ 4123 KB ] 		download
SATA Utility

10 64bit		Multilanguage6.1.0.1247
( 2020/7/24 )		 Intel Utility (SATA)
Total size: [ 45662 KB ] 		download
MS.Net_Framework

10 64bit		Multilanguage3.5
( 2020/7/24 )		Microsoft .Net Framework 3.5 Redistributable for Windows
Total size: [ 201720 KB ] 		download

10 64bit		Multilanguage4.5.2
( 2020/7/24 )		Microsoft .Net Framework 4.5.2
Total size: [ 68248 KB ] 		download

WinFast GS2030T
Language Version Description
User's Manual
EnglishA
( 2020/7/24 )		User's Manual
Total size: [ 32556 KB ] 		download
Installing the RAID driver during Windows
EnglishA
( 2020/7/24 )		RAID_driver_installation_Guide
Total size: [ 38 KB ] 		download
