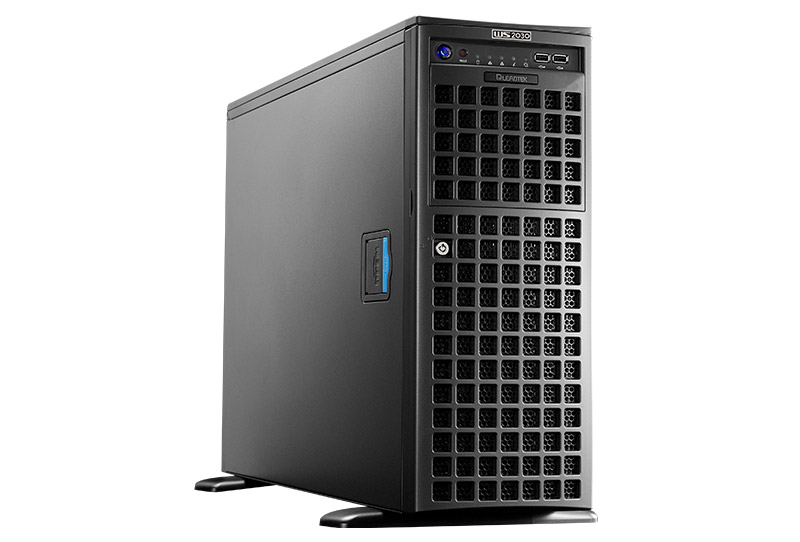

WinFast WS2030

  • Ultra High-end Workstation
  • •High Performance Computing
  • Ideal for AI/Deep Learning/3D rendering

Key Features


  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs, up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM
  • 4 PCI-E 3.0 x16 (double-width) slots
    2 PCI-E 3.0 x16 (single-width) slots
    1 PCI-E 3.0 x4 (in x8) slot
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key
  • Support Up to 4 NVIDIA Quadro/GeForce cards
  • Dual LAN with 10GbE from C621
  • IPMI: ASPEED AST2500
  • 8 Hot-swap 3.5" drive bays
  • 2200W Redundant Power Supplies, Titanium Level (96%)

System Health Monitoring

The system has an onboard Baseboard Management Controller (BMC)
chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

System Resource Alert

This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

Applications

Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.

AI/DeeP Learning


CONSUMER INTERNET

CONSUMER INTERNET

Ad Personalization Click Through Rate Optimization Churn Reduction.
OIL & GAS

OIL & GAS

Sensor Data Tag Mapping Anomaly Detection Robust Fault Prediction.
FINANCIAL SERVICES

FINANCIAL SERVICES

Claim fraud Customer Service Chatbots/Routing Risk Evaluation.
MANUFACTURING

MANUFACTURING

Remaining Useful Life Estimation Failure Prediction Demand Forecasting.
HEALTHCARE

HEALTHCARE

Improve Clinical Care Drive Operational Effeciency Speed Up Drug Discovery.
TELECOM

TELECOM

Detect Network/Security/Anomalies Forecasting Network Performance Network Resource Optimization (SON).
RETAIL

RETAIL

Supply Chain and Inventory Management Price Management/Markdown Optimization Promotion Prioritization and Ad Targeting.
AUTOMOTIVE

AUTOMOTIVE

Personalization & Intelligent Custoemr Interactions Connected Vehicle Predictive Maintenance Forecasting, Demand and Capacity Planning.
Smart Home

SMART HOME

AI Speaker, Lighting, Security AI Appliances, Thrtmostat AI Vauums.

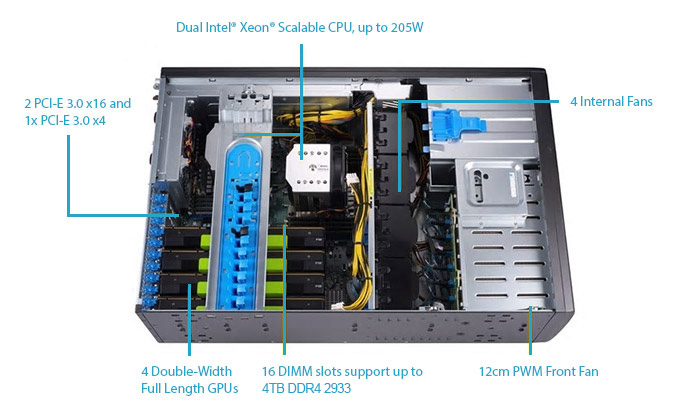

Processor

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-205W
  • Up to 28 Cores

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

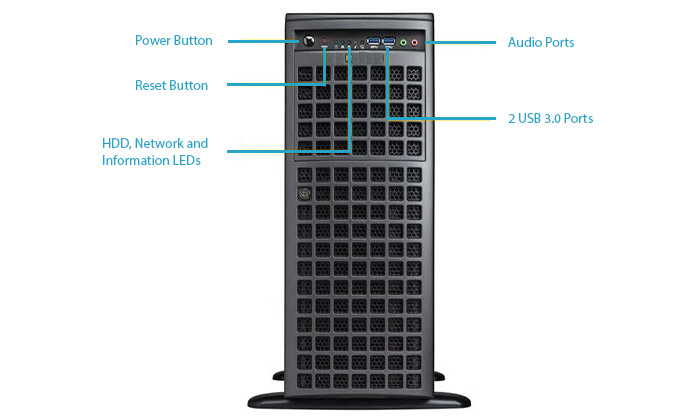

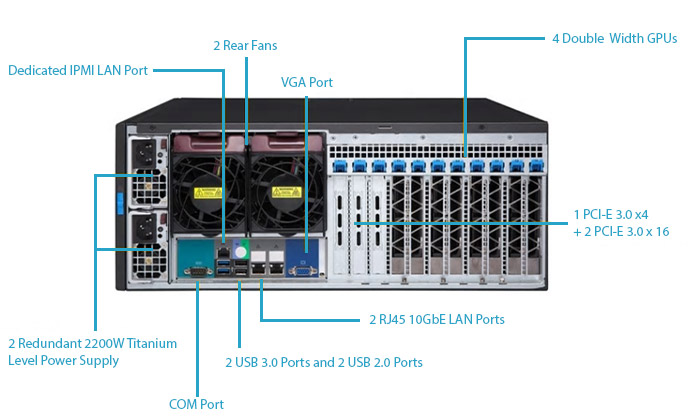

Input / Output

SATA 10 SATA3 (6Gbps) ports
NVMe 1 NVMe support with M.2 Socket
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via headers)
Video 1 VGA port
Audio 7.1 HD Audio with optical S/PDIF
Serial Port/Header 2 COM ports (1 rear, 1 Header)

Form Factor

  • 4U Rackmountable / Tower
  • Optional Rackmount Kit

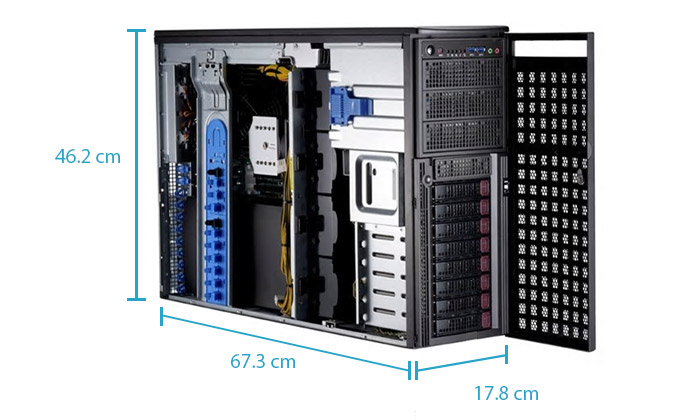

Dimensions and Weight

Height 18.2" (462mm)
Width 7.0" (178mm)
Depth 26.5" (673mm)
Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)

Drive Bays / Storage

  • 8 Hot-swap 3.5" drive bays
  • Optional 4x 2.5" NVMe supported
  • 1 M.2 (M-key, 2260/2280/22110)

Expansion Slots

PCI-Express
  • 4 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x16 (single-width) slots
  • 1 PCI-E 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

System Cooling

Fans
  • 4 Heavy duty fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)

Power Supply

2200W Redundant Power Supplies with PMBus, Titanium Level Certified
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency 50-60Hz

OS Compatibility

  • Windows Server 2016/2019
  • RHEL 7.3 or later
  • Ubuntu 18.04 LTS

Operating Environment

RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
